To remove the LC connector from the transceiver, please follow the steps shown below:

First, press the upper side of the LC connector to release from the transceiver and pull
it out.

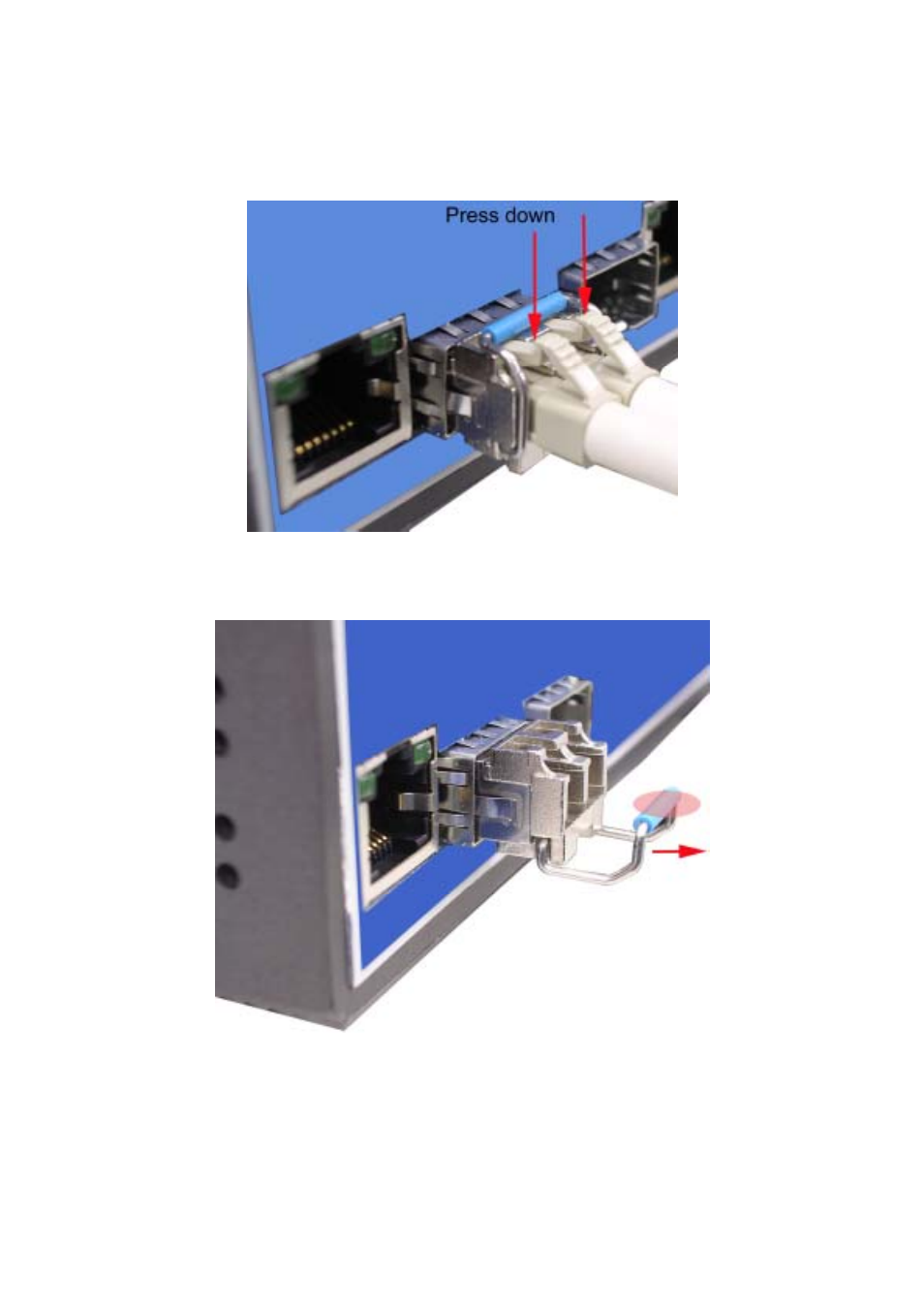

Figure 2.11: Remove LC connector


Second, push down the metal loop and pull the transceiver out by the plastic handle.

Figure 2.12: Pull out from the transceiver
