EKI-7657C _Manual_ed1 26
Select the appropriate COM port, and set the parameter as Fig.3.2 (9600 for Baud Rate, 8 for Data Bits,
None
for Parity, 1 for Stop Bits, and None for Flow Control).

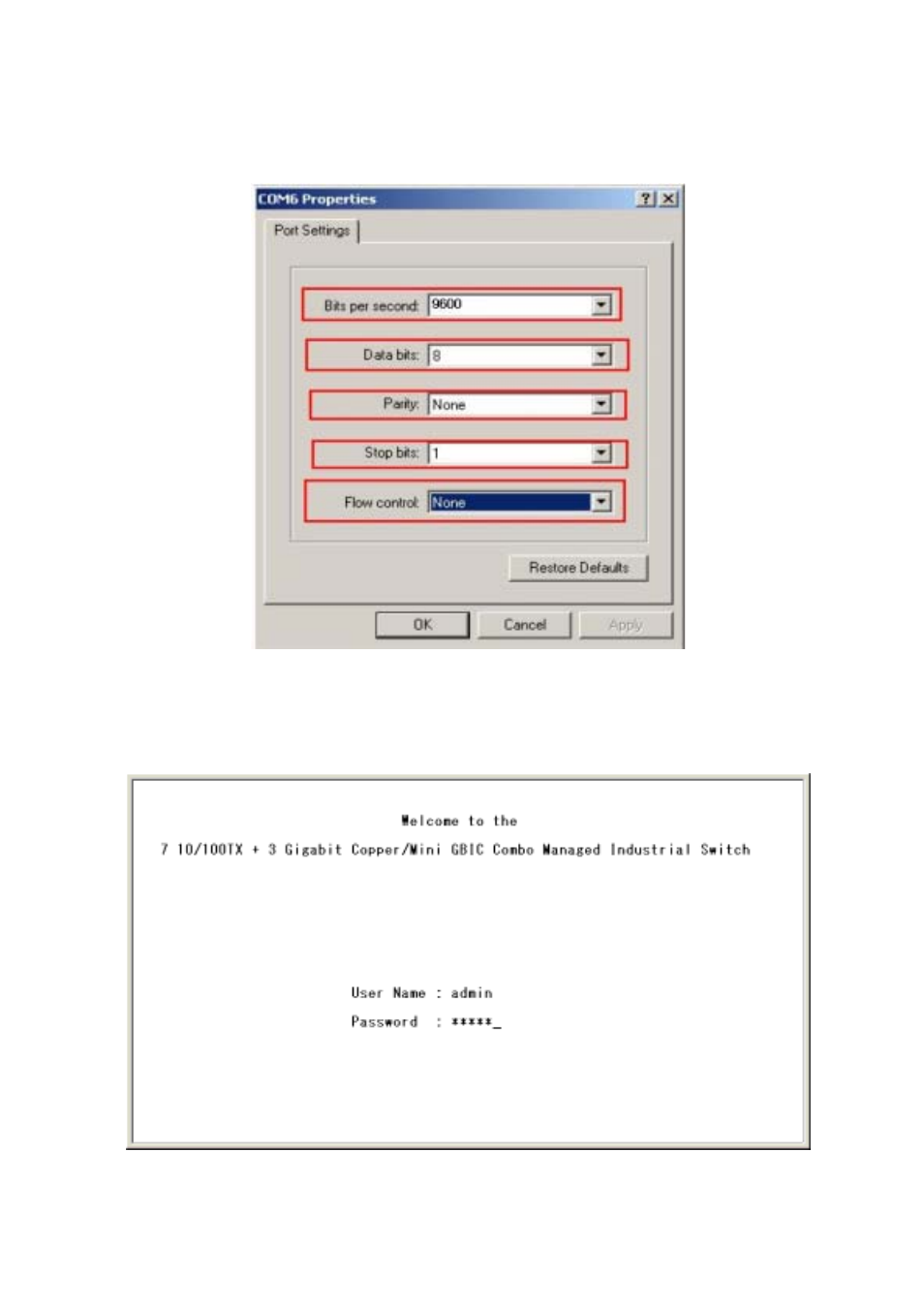

Figure 3.2: COM Port Properties Setting
Press Enter for login screen (If you can not find the login screen, press Enter one more time). The
default user name and password are both “admin”. Key-in the user name and password to enter the
command line interface.
Figure 3.3: Login Screen: RS-232 Configuration
