Appendix A Pin Assignment & Wiring


It is suggested to adopt ELA/TIA as the wiring of the RJ-45.

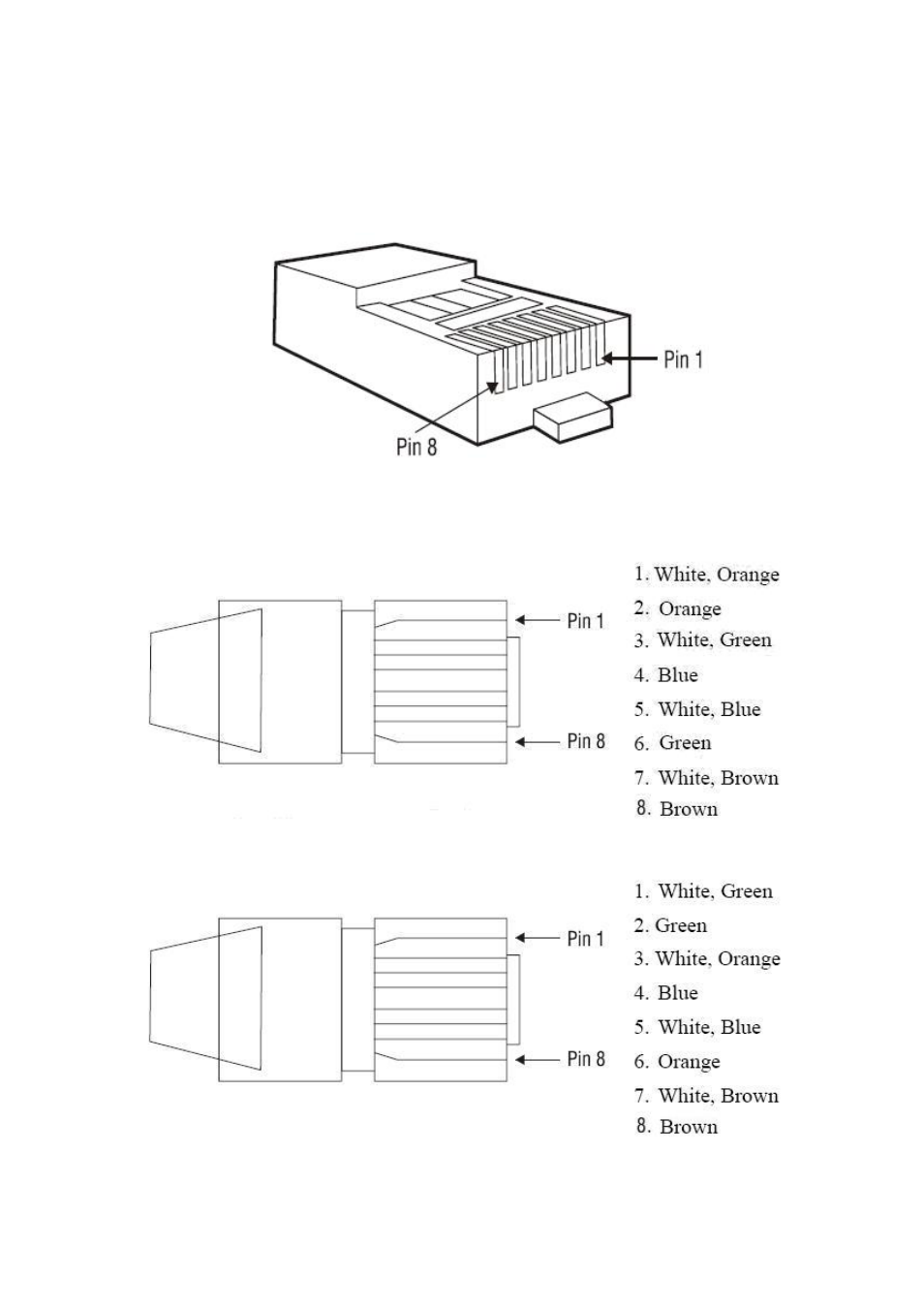

Figure A.1: RJ-45 Pin Assignment


Figure A.2: EIA/TIA-568B

Figure A.3: EIA/TIA-568A
