2.3.2 DIN-rail Mounting
You can also mount EKI-7657C on a standard DIN-rail by steps below.
The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit
is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first.

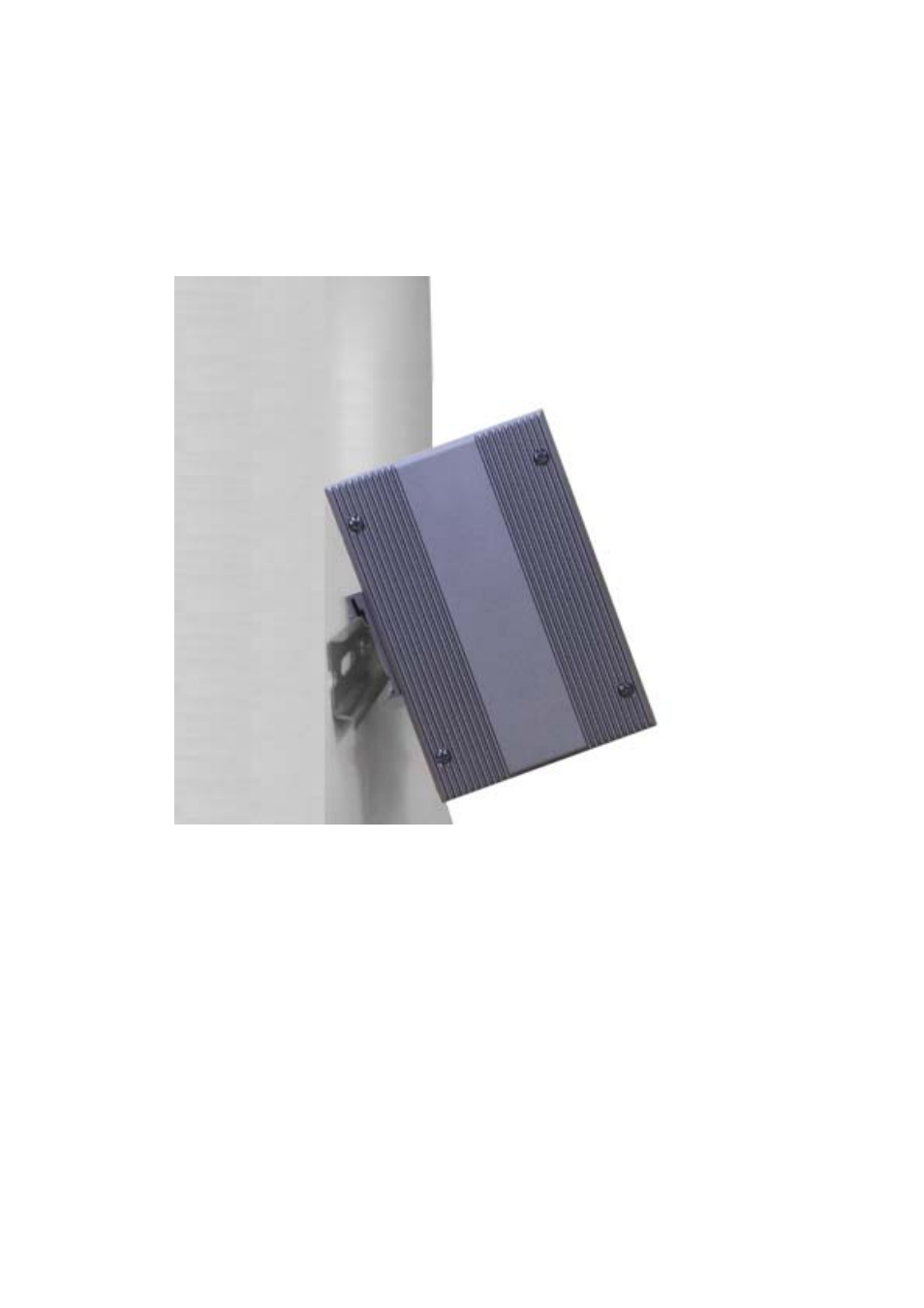

First, hang the EKI-7657C to the DIN-rail with angle of inclination. See Figure 2.6.
Figure 2.6: Installation to DIN-rail Step 1
