PASCO OS-8522 LENS HOLDER SET (2) - Manual

Instruction Sheet
for the PASCO
Model OS-8522
LENS HOLDER SET (2)
012-05777A
2/95
$1.00
Phone (916) 786-3800 • FAX (916) 786-8905 • email: [email protected]
10101 Foothills Blvd. • P.O. Box 619011 • Roseville, CA 95678-9011 USA
better
teach physics
ways to
© 1995 PASCO scientific
This instruction sheet written/edited by: Mary Ellen Niedzielski
Introduction
The Basic Optics Lens Holder is designed for use
with the optics bench included in models OS-8515,
Basic Optics System, and OS-8518, Geometric Op-
tics Kit. The Lens Holder is a reusable holder which
easily mounts any 50 mm diameter optics up to 7
mm thickness at the outer edge. The Lens Holder
can also be used as a free standing holder making it
adaptable for use with other optics systems.
Equipment
The OS-8522 Lens Holder Set includes:
- Molded Plastic Lens Holder with Locking Clip
and Position Indicator (2)
- Retaining Rings (4)
Additional Equipment Required
Any 50 mm diameter optics (lenses, mirrors etc.) such as
the SE-9013 Ground Glass Lens Set.
Optic Installation and Removal
Installation:
➀
Carefully slide one of the Retaining Rings, lip toward
the outside of the Holder, into the Lens Mount. Be
sure to position the Retaining Ring so that the optical
center of the optic you install will be centered in the
Lens Holder. The center of the Lens Holder is marked
solid line.
➁ Turn the holder so the side with the retaining clip
points downward.
➂ Slide the optic into the holder so it is seated against the
retaining clip.
➃ Slide the second Retaining Ring, lip toward the out-
side of the Holder, into the Lens Mount until it is
seated firmly against the optic.
Removal:
➀ Lay a piece of lens paper over the optic to be removed.
➁
Gently push against the optic until the optic and one
Retaining Ring slide out of the Lens Holder
Using the Lens Holder Set
For use with the Basic Optics Bench, simply snap the
holder into place on the bench. To move the lens holder
along the bench, grasp the holder at its base, squeeze the
locking clip and slide the holder along the bench. When
the locking clip is released the lens is held firmly in place.
For accurate measuring a position indicator is located on the
side of the lens holder. To remove the holder from the bench,
squeeze the locking clip and lift the holder off the bench.
The Lens Holder can stand on any flat surface for use
with other optics systems or for experiments not requiring
an optics bench.

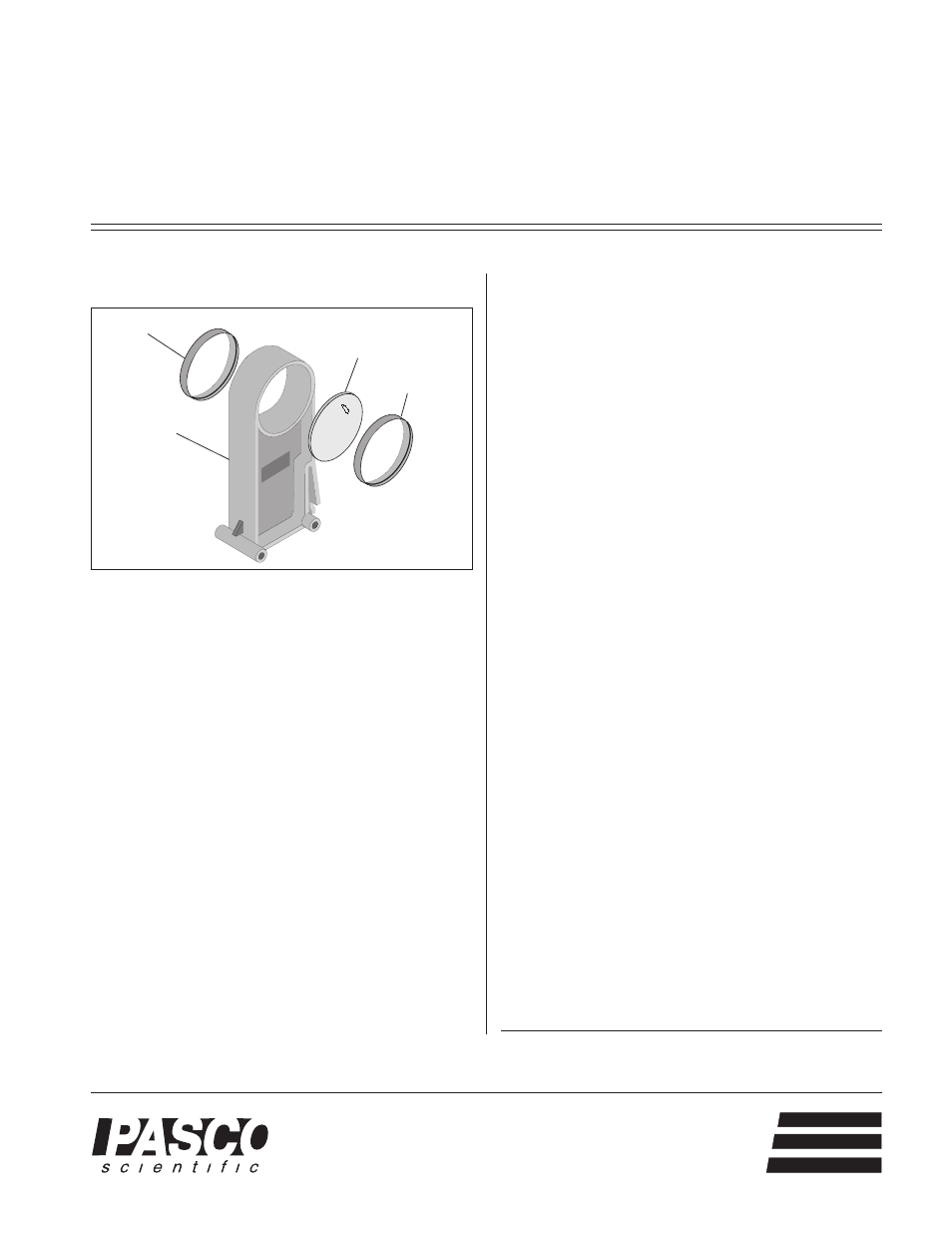

Figure: Equipment included in OS-8522
Lens Holder
Stand
50mm Diameter
Lens (not included
with set)
Retaining Ring
Retaining Ring
