PASCO SE-9767 VISIBLE RAY OPTICS SET - Manual

Instruction Sheet
for the PASCO
Model SE-9767
VISIBLE RAY OPTICS SET
012-06252A
7/96
$1.00
© 1996 PASCO scientific
Instruction sheet written/edited by: Sunny Bishop
Introduction
The PASCO SE-9767 Visible Ray Optics Set is com-
prised of four large plastic lenses that allow students to
see the reflection, refraction, diffusion, or condensation of
light beams within the lenses as the light passes through
them. The curvature of the faces of the convex and con-
cave lenses is equivalent, so they can be used in combina-
tion for light experiments.
Equipment
Lens Type Dimensions, Focal Length,
mm (w x h x d) mm
biconvex 70 x 20 x 30 50
convex, single 70 x 20 x 15 100
biconcave 70 x 20 x 12 (min.) -50
trapezoid 50 x 75 x 40, 90º, 60º, 120º
NOTE: Use care when handling the lenses — the
surfaces of the plastic lenses are easily scratched.
Procedure
Place the lenses in the path of a high intensity light
beam(s), such as that produced by the PASCO SE-9474
Ray Box or the PASCO OS-8521 Light Source, or a laser
beam (PASCO OS-8525 Diode Laser), to demonstrate the
path of the light as it passes through the lenses (Figure 1).
Limited Warranty
PASCO scientific warrants this product to be free from
defects in materials and workmanship for a period of one
year from the date of shipment to the customer. PASCO
will repair or replace, at its option, any part of the product
which is deemed to be defective in material or workman-
ship. This warranty does not cover damage to the product
caused by abuse or improper use. Determination of
whether a product failure is the result of a manufacturing
defect or improper use by the customer shall be made
solely by PASCO scientific. Responsibility for the return
of equipment for warranty repair belongs to the customer.
Equipment must be properly packed to prevent damage
and shipped postage or freight prepaid. (Damage caused
by improper packing of the equipment for return ship-
ment will not be covered by the warranty.) Shipping
costs for returning the equipment, after repair, will be
paid by PASCO scientific.

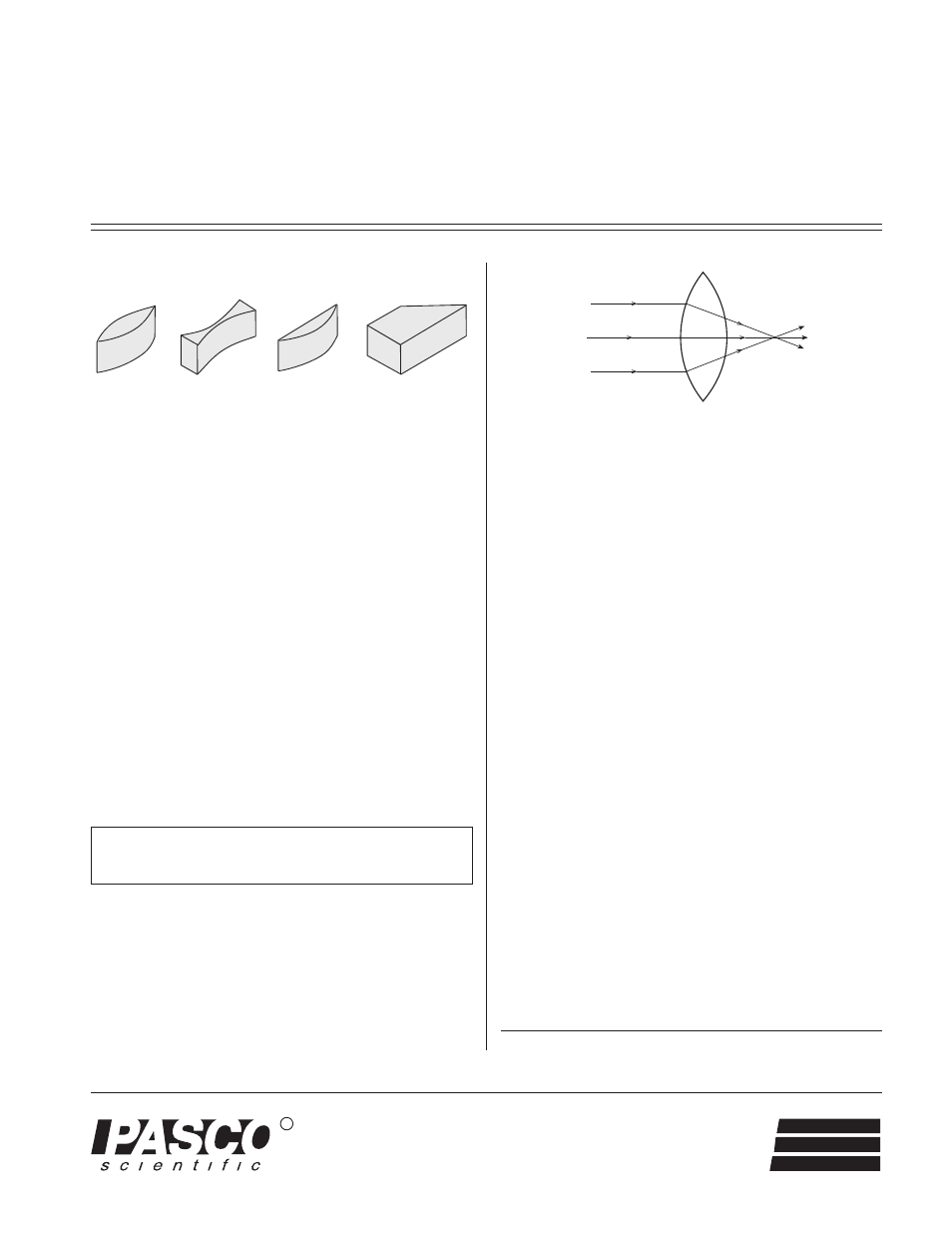

Figure 1: Light paths are visible as they pass
through the lens
trapezoid
convex
single
biconcave
biconvex
light beam
