V e r t i c a l A c c e l e r a t i o n D e m o n s t r a t o r

012-13009A

SF -9339

2

Usage

1.

Place the Vertical Acceleration Demonstrator on a level table, with
the launch arm of the demonstrator beyond the edge of the table as
shown. Be sure that the floor is also level.

2.

Pull the launch arm back against the pull of the spring until the
launch arm catches on the trigger.

3.

Mount a steel ball on each end of the launch arm in the small hole at
each end of the arm.

The steel balls are stored in the ball storage compartment. Rotate the
cover to remove the balls.

4.

Press the Trigger Knob down. One ball will drop straight down and
the other will be projected horizontally.

5.

Listen for the click of the balls as they strike the floor. If the appara-
tus and the floor are both level, the two balls will strike the floor
simultaneously.

Technical Support

For assistance with any PASCO product, contact PASCO at:

For more information about the Vertical Acceleration Demonstrator and the latest revision of this Instruction Sheet, visit the
PASCO web site at www.pasco.com and enter SF-9339 in the Search window.

Limited Warranty

For a description of the product warranty, see the PASCO catalog.

Copyright

The PASCO scientific 012-13009A Vertical

Acceleration Demonstrator Instruction Sheet is copyrighted with all rights reserved. Permission is granted to non-profit educational institutions for
reproduction of any part of this manual, providing the reproductions are used only in their laboratories and classrooms, and are not sold for profit.
Reproduction under any other circumstances, without the written consent of PASCO scientific, is prohibited.

Trademarks

PASCO and PASCO

scientific are trademarks or registered trademarks of PASCO scientific, in the United States and/or in other countries. All other brands, products, or
service names are or may be trademarks or service marks of, and are used to identify, products or services of, their respective owners. For more
information visit www.pasco.com/legal.

Address: PASCO scientific

10101 Foothills Blvd.
Roseville, CA 95747-7100

Phone:

916-786-3800 (worldwide)
800-772-8700 (U.S.)

Fax:

(916) 786-7565

Web:

www.pasco.com

Email:

[email protected]

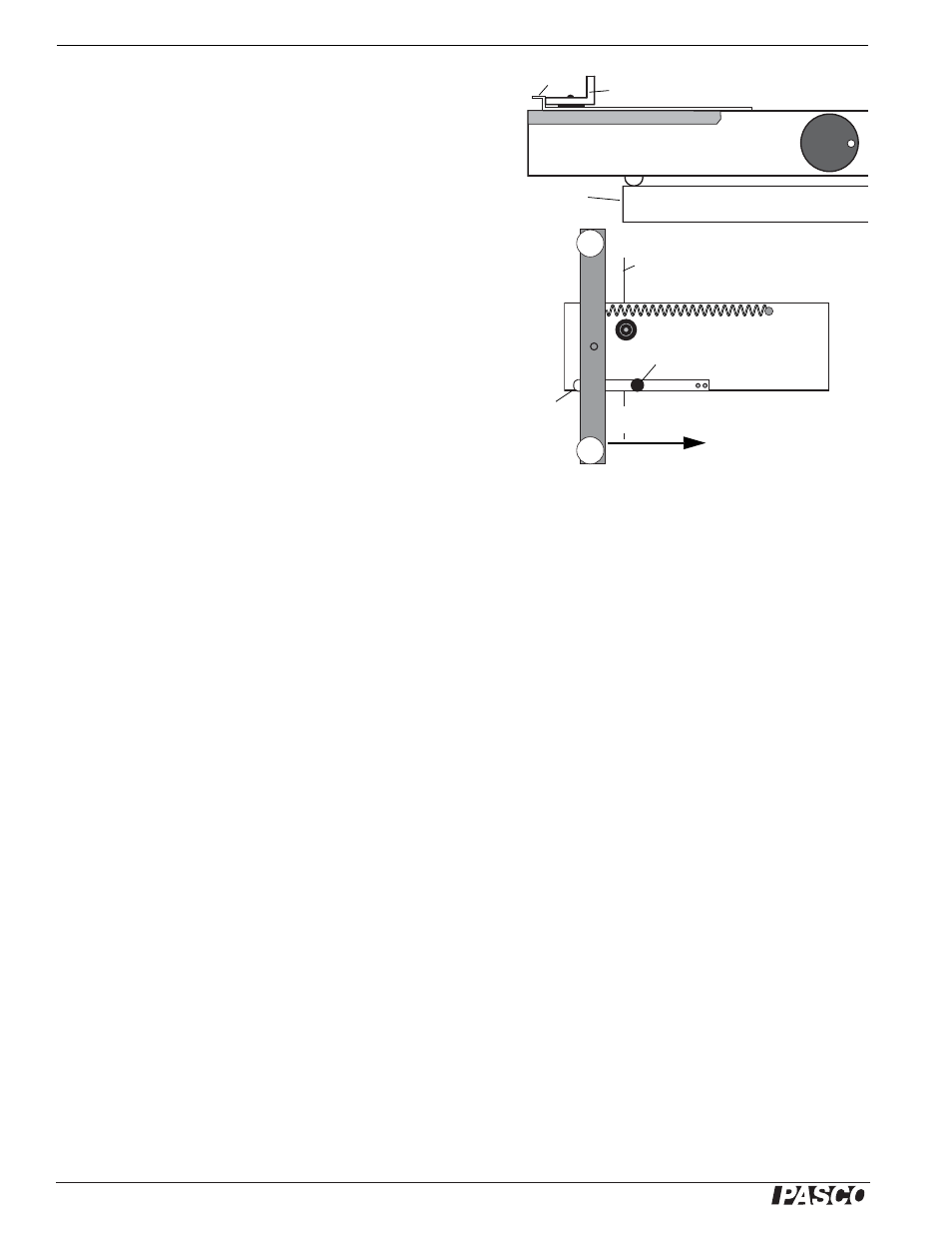

Launch Arm
