P h o t o g a t e P e n d u l u m S e t

ME-8752

2

The “V” shaped bifilar arrangement of the string insures that
the pendulum will swing back-and-forth in the same plane.

*See the PASCO catalog or web site at www.pasco.com for
more information.

Measuring the Period of a Pendulum:

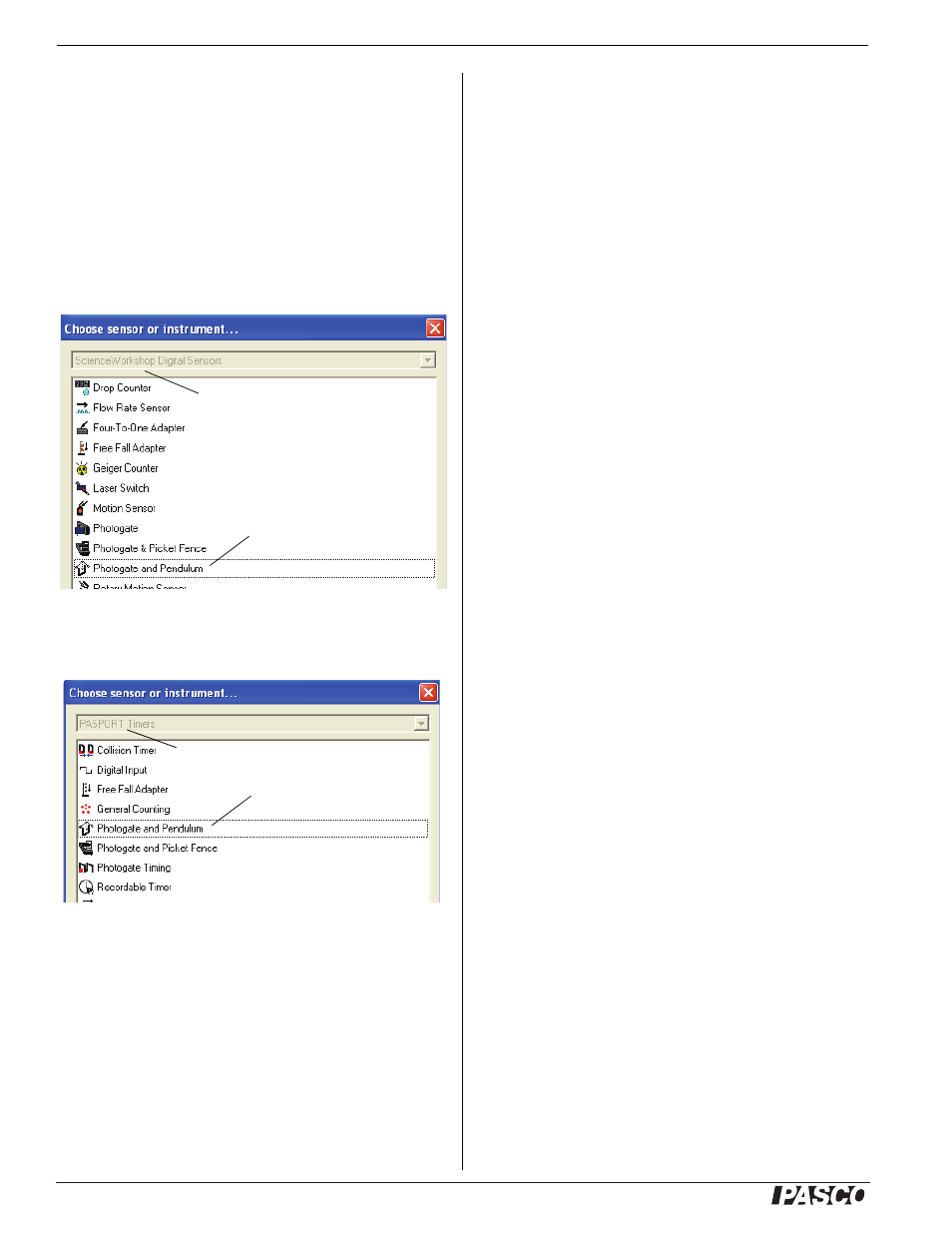

DataStudio: When using DataStudio software with a Science-
Workshop
interface, go to the Experiment Setup window and
click the icon of a digital channel on the picture of the inter-
face. Select the “Photogate and Pendulum” choice from the
“Choose sensor or instrument” panel. Click OK.

When using DataStudio software with a PASPORT interface,
go to the Experiment Setup window and click ‘Setup Timers’.
Select the “Photogate and Pendulum” choice from the “Choose
sensor or instrument” panel. Click OK.

Check the PASCO web site at www.pasco.com for information
about using the SPARK Science Learning System (SPARK
SLS) to measure the period of a pendulum.

Data Recording: Align the pendulum with the photogate so
that the pendulum will block the photogate beam as the pendu-
lum swings back and forth. Pull the pendulum back a few cen-
timeters and release it so it swings through the photogate. Press
‘Start’ to begin recording data. Let the pendulum swing several
times, and then press ‘Stop’ to end recording data. Use a Table
display to view the data.

Using this experimental setup, students can investigate the
relationships between length and period, mass and period, and
amplitude and period. In all cases, the effects of air resistance
are held constant since the shape and size of the pendula are
identical.

Technical Support

For assistance with any PASCO product, contact PASCO at:

For more information about the Photogate Pendulum Set and
the latest revision of this Instruction Sheet, visit:

www.pasco.com/go?ME-8752

Limited Warranty

For a description of the product warranty, see the

PASCO catalog.

Copyright

The PASCO scientific 012-07569B Pho-

togate Pendulum Set Instruction Sheet is copyrighted with all rights
reserved. Permission is granted to non-profit educational institutions for
reproduction of any part of this manual, providing the reproductions are
used only in their laboratories and classrooms, and are not sold for
profit. Reproduction under any other circumstances, without the written
consent of PASCO scientific, is prohibited.

Trademarks

PASCO and

PASCO scientific are trademarks or registered trademarks of PASCO
scientific, in the United States and/or in other countries. All other
brands, products, or service names are or may be trademarks or ser-
vice marks of, and are used to identify, products or services of, their
respective owners. For more information visit www.pasco.com/legal.

Choose Photogate

and Pendulum

ScienceWorkshop Digital Sensors

Choose Photogate

and Pendulum

PASPORT Timer

Address: PASCO scientific

10101 Foothills Blvd.
Roseville, CA 95747-7100

Phone:

916-786-3800 (worldwide)
800-772-8700 (U.S.)

Fax:

(916) 786-7565

Web:

www.pasco.com

Email:

[email protected]
