M o d e l N o . W A - 9 8 9 7 I t e m s
2
Items
Descriptions

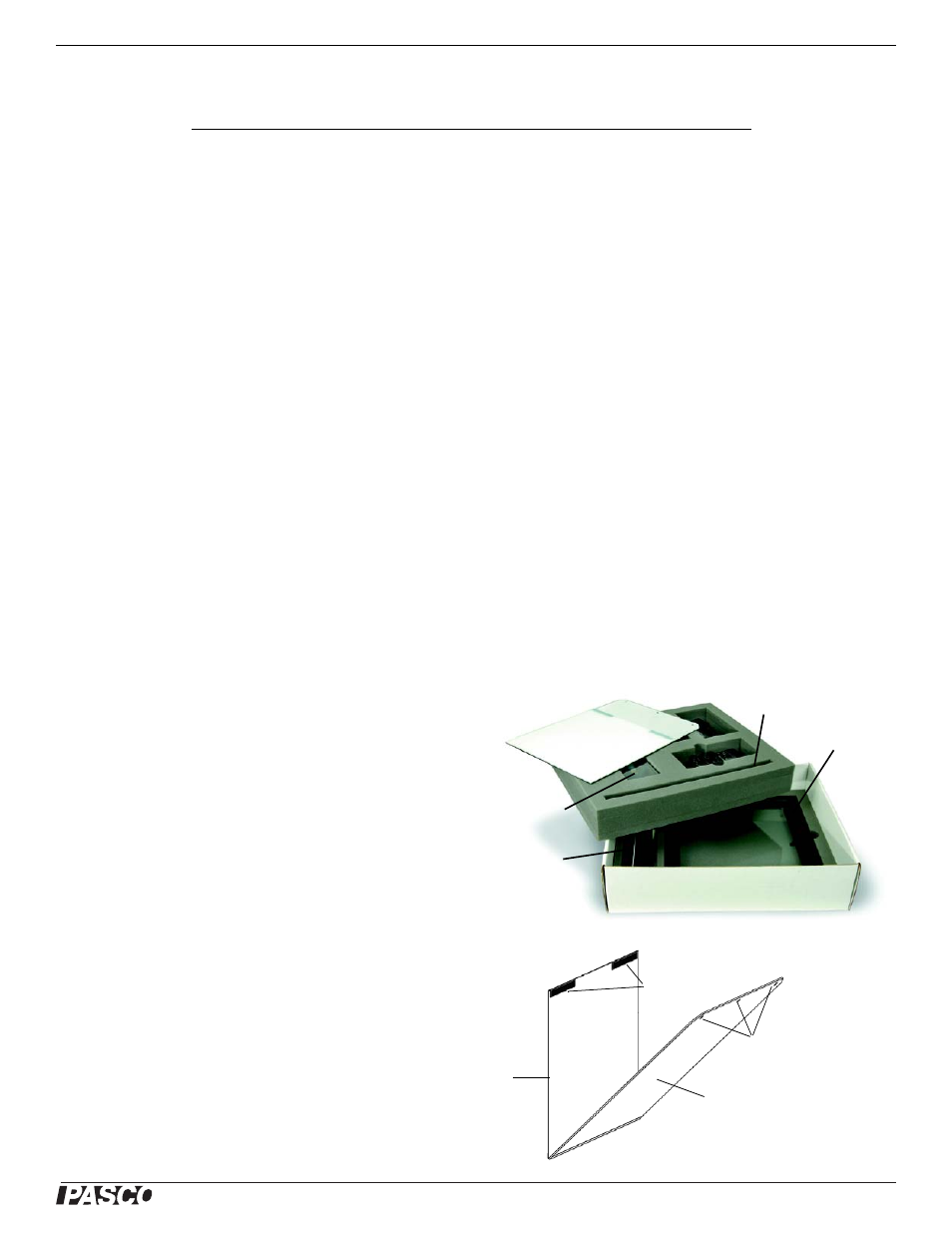

The box in which the Ripple Tank is stored has two layers. The
screen assembly, plastic storage box, rod, and beaker are in the top
layer, and the ruler, legs, and Ripple Tank assembly are in the bot-
tom layer. The top layer has areas for storing the WA-9896 Ripple
Generator and Light Source, including the power adapter and cord.
Screen Assembly
The screen assembly is a reflector and a projection screen joined at
one edge by a strip of flexible tape. Note: Remove any protective
coating from the reflector and the screen before using. The reflector is alumi-
nized acrylic. The screen is translucent plastic.
There are three holes along the top edge of the reflector and two strips of Vel-
cro® ‘loop’ material along the top edge of the projection screen.
Description Part Number
1. Ruler 699-081
2. Pipette, 5 mL 699-154
3. Storage box 740-177
4. Bottle, 1 ounce, (for Tergitol surfactant
1
)
650-072
5. Long barrier (2 pieces) 648-09718
6. Mini barrier 648-09717
7. Short barrier 648-09719
8. Curved reflector 648-09820
9. Concave refractor 648-09720
10. Convex refractor 648-09721
11. Trapezoidal refractor 648-09714
12. Rod for Light Source 648-09713
13. Leg, Ripple Tank 648-09705
14. Beaker, 1000 mL 699-197
15. Screen assembly 003-09736
16. Ripple Tank assembly 003-09703
1 Note: The Tergitol L-62 surfactant is part number 699-023.
Screen
assembly Ripple Tank
assembly
Rod
Plastic
storage
box
Legs and
ruler
Holes
Velcro®
‘loop’
material
Reflector
Projection
screen
