Sodium Light Source 012-05364C
➤ ➤ ➤ ➤ ➤
CAUTION--HIGH VOLTAGE: Do not open the light
source with the unit plugged in.
Maintenance
The light source lamp, when used correctly (see the note on
the front panel of the unit), can be expected to provide
14,000+ hours of trouble free operation. However, if the
light at any time fails to come on, first check the fuse on the
front of the light source case. If the fuse is not blown, you
may need to replace the lamp. In rare cases, the problem
may be with the ballast. However, ballast replacement
should be performed only by experienced personnel. If the
fuse is intact and replacing the bulb does not restore opera-
tion, we recommend you return the unit to PASCO scientific
for repair.
Only the following replacement parts should be used:
Item PASCO Part #
Fuse (3.15 amp) 530-033
Fuse (1.6 amp) 530-034
Lamp 526-034
110 volt Ballast 322-042
220 volt Ballast 322-05440
220 volt Ignitor 550-05441

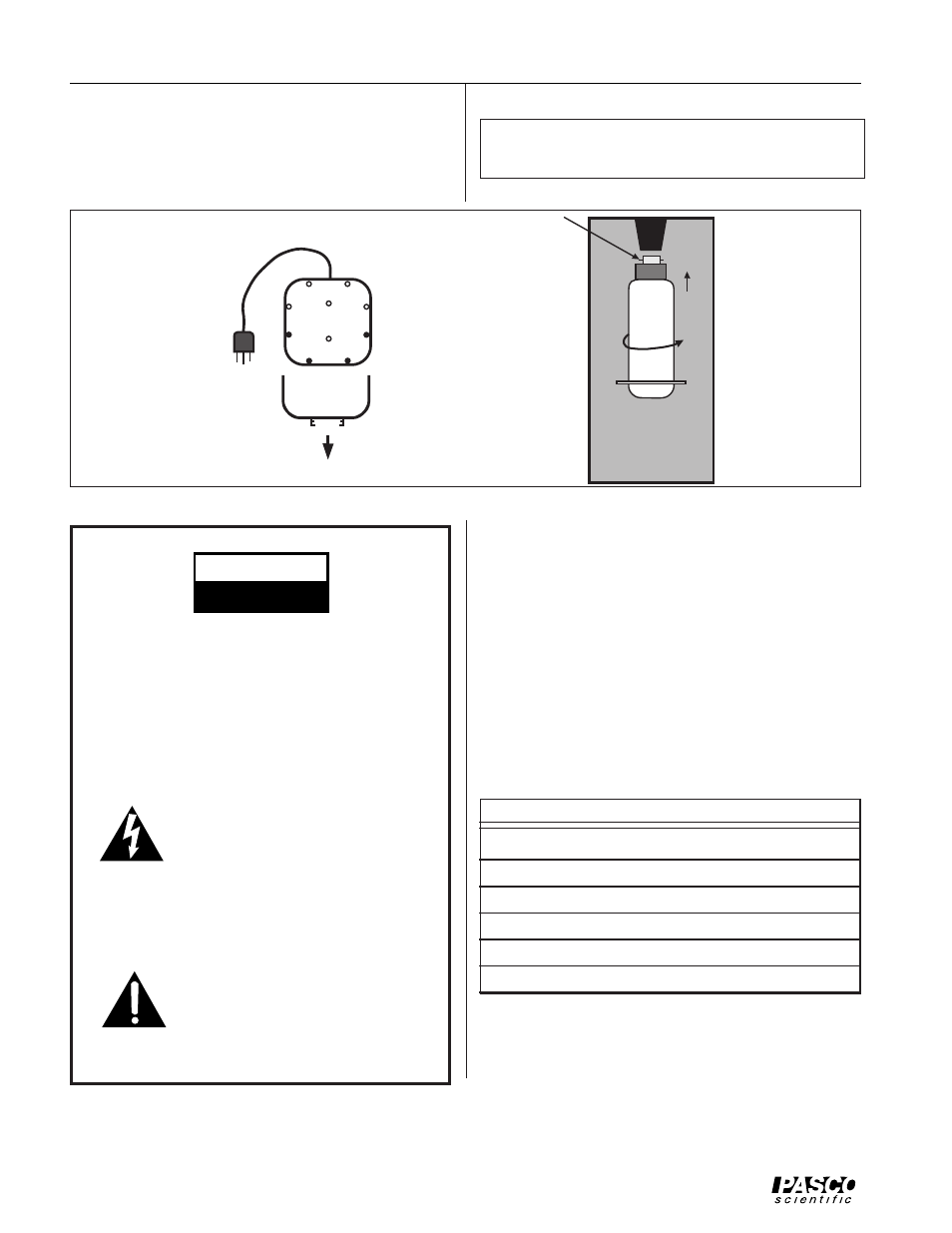

(4) Reverse procedure
to remove lamp.
(3) Push up and twist
to mate lamp with
socket.
(1) Remove 4 screws
(shown shaded) on top
and bottom panel, then
remove the rear panel.
Initial Setup
Before using the Light Source for the first time, you will
need to install the lamp. To do this, just follow the
numbered instructions shown below.
(2) Align pins to fit
lamp in socket
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE BACK COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead, within
an equilateral triangle, is intended to alert
the user of the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to
persons.
The exclamation point within an equi-
lateral triangle is intended to alert the
user of the presence of important oper-
ating and maintenance (servicing) in-
structions in the literature accompany-
ing the appliance.
