B r e a t h R a te Se n s o r PS- 2 1 8 7
2

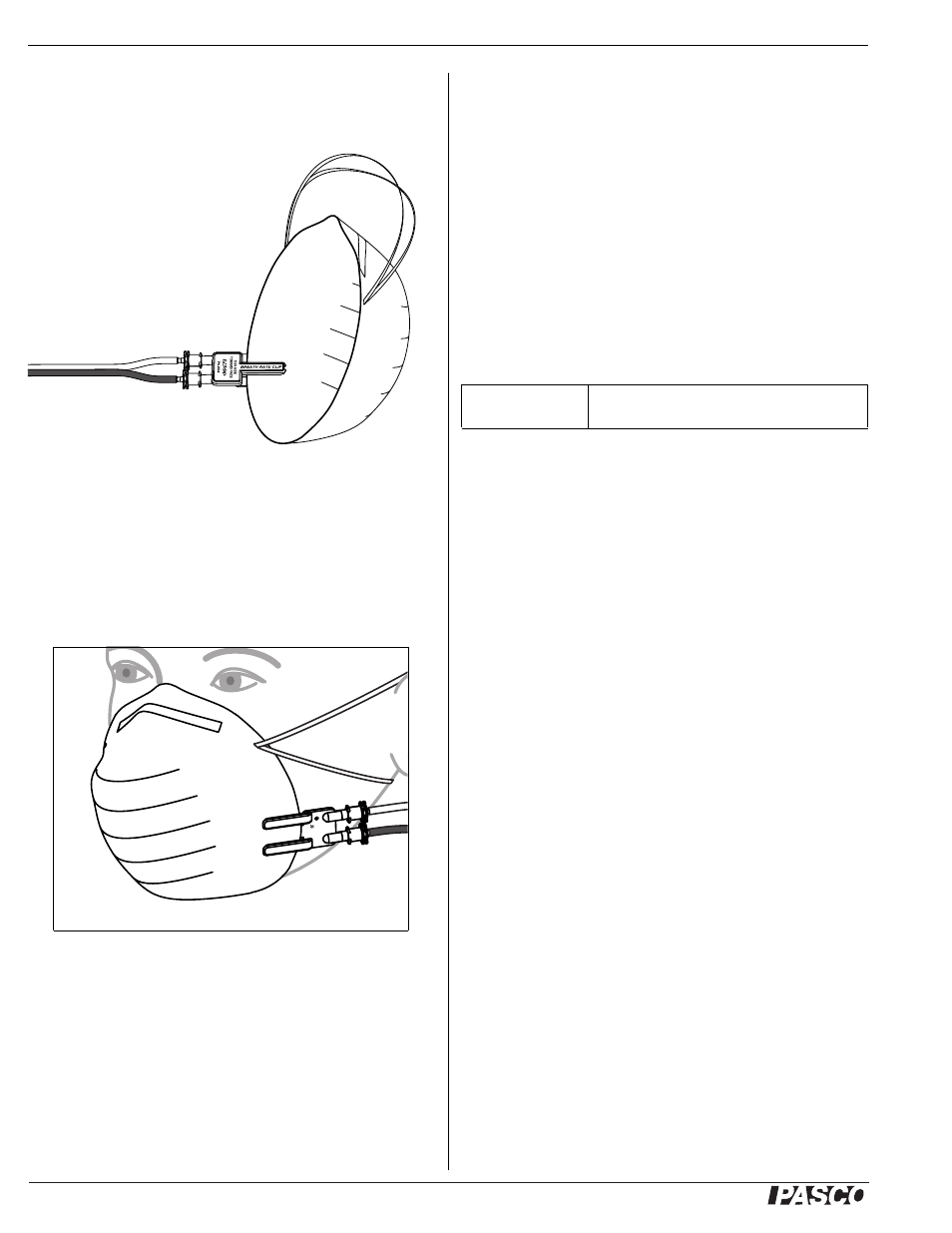

Attaching the Clip to a Mask.
Slide the clip onto the side of the mask as illustrated. Observe the
THIS SIDE TOWARD FACE label.
Placing the Mask on Your Face
1. Place the mask over your mouth and nose with the straps
around you head as illustrated.
2. Ensure that the mask fits closely to your face.
3. Attach the metal strain-relief clip to your clothes or the mask
itself to prevent the tubes from pulling the breath rate clip.
Collecting Data
1. While breathing normally, observe the indicator lights on the
sensor. The green EXHALE indicator illuminates when the
sensor detects a breath. If the red NO SIGNAL indicator is
illuminated, adjust the fit of the mask.
2. Press or click the start button on your interface or in
DataStudio to begin recording data.
3. Press or click the button again to stop recording data.
About the Measurements
The sensor determines breath rate by measuring the time between
exhalations. It outputs two measurements: Breath Rate and
Breath Rate Average.
• Breath Rate is the inverse of the time between consecutive
exhalations.
• Breath Rate Average is based on the duration of the four
previous exhale-inhale cycles.
Both measurements are updated every time you exhale.
Specifications
Technical Support
For assistance with any PASCO product, contact PASCO at:
For more information about the Breath Rate Sensor and the latest
revision of this Instruction Sheet, visit:
www.pasco.com/go?PS-2187
Limited Warranty For a description of the product warranty, see the
PASCO catalog.
Copyright
The PASCO scientific 012-10168A Breath Rate Sensor
Instruction Sheet is copyrighted with all rights reserved. Permission is
granted to non-profit educational institutions for reproduction of any part of
this manual, providing the reproductions are used only in their laboratories
and classrooms, and are not sold for profit. Reproduction under any other
circumstances, without the written consent of PASCO scientific, is prohib-
ited.
Trademarks
PASCO, PASCO scientific, DataStudio, and PASPORT are
trademarks or registered trademarks of PASCO scientific, in the United
States and/or in other countries. All other brands, products, or service
names are or may be trademarks or service marks of, and are used to
identify, products or services of, their respective owners. For more infor-
mation visit www.pasco.com/legal.
BLA CK
CLE AR
Measurement
Range 5 breaths/minute to 60 breaths/minute, typical
Address: PASCO scientific
10101 Foothills Blvd.
Roseville, CA 95747-7100
Phone: 916-786-3800 (worldwide)
800-772-8700 (U.S.)
Fax: (916) 786-7565
Web: www.pasco.com
Email: [email protected]
