Mini-Rotational Accessory 012-05982B
¨
Using the Rod

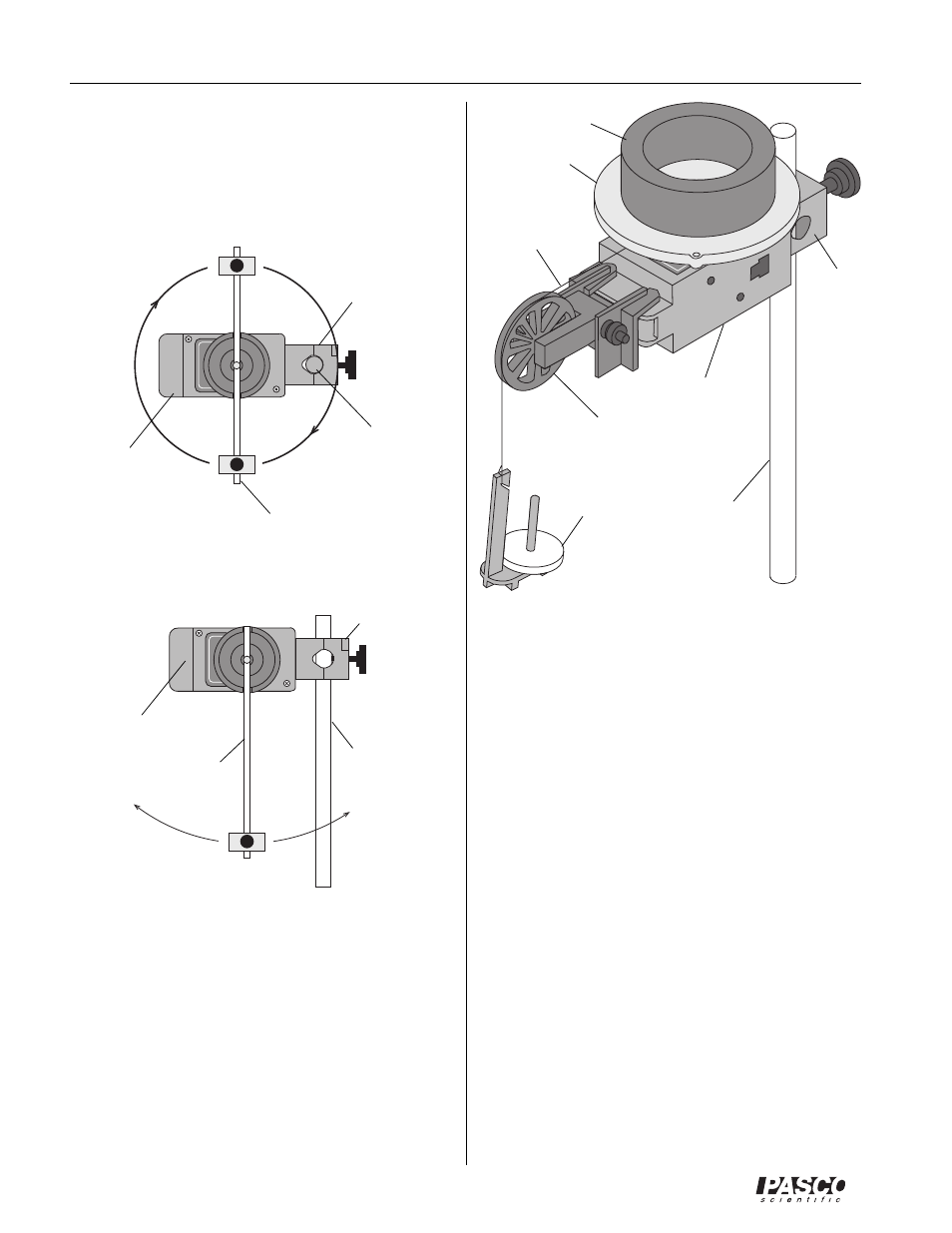

The rod can be used for two purposes:
• The center of the rod can be attached to the shaft of
the Rotary Motion Sensor and used with the point
masses to find the rotational inertia of point masses.
support rod
rod with masses
rod clamp
Rotary Motion
Sensor
• The end of the rod can be attached to the Rotary Mo-
tion Sensor shaft to use it as a pendulum.
Rotary Motion
Sensor
rod with mass
support rod
rod clamp
Using the Disk and Ring
For rotational inertia experiments, wrap a string at-
tached to a mass around the 3-step Pulley included with
the Rotary Motion Sensor. Hang the mass over the Su-
per Pulley to accelerate the apparatus.
Perform a conservation of angular momentum experi-
ment by dropping the ring onto the rotating disk.
