H i g h R e s o l u t i o n F o r c e S e n s o r

PS- 2 1 8 9

2

degree of over-sampling depends on the sample rate. Maximum
over-sampling occurs at sample rates of 20 Hz and slower.

Sample Rate

By default, the sensor collects 10 samples per second. It can col-
lect data as fast as 1000 samples per second and as slow as one
sample every four hours. Change the sample rate in DataStudio
or on your datalogger.

Inverted Output

By default, the sensor registers pushing as a positive force and
pulling as a negative force. To register pulling as positive and
pushing as negative, select the Force (Inverted) measurement in
DataStudio or on your datalogger.

Sensor Mounting

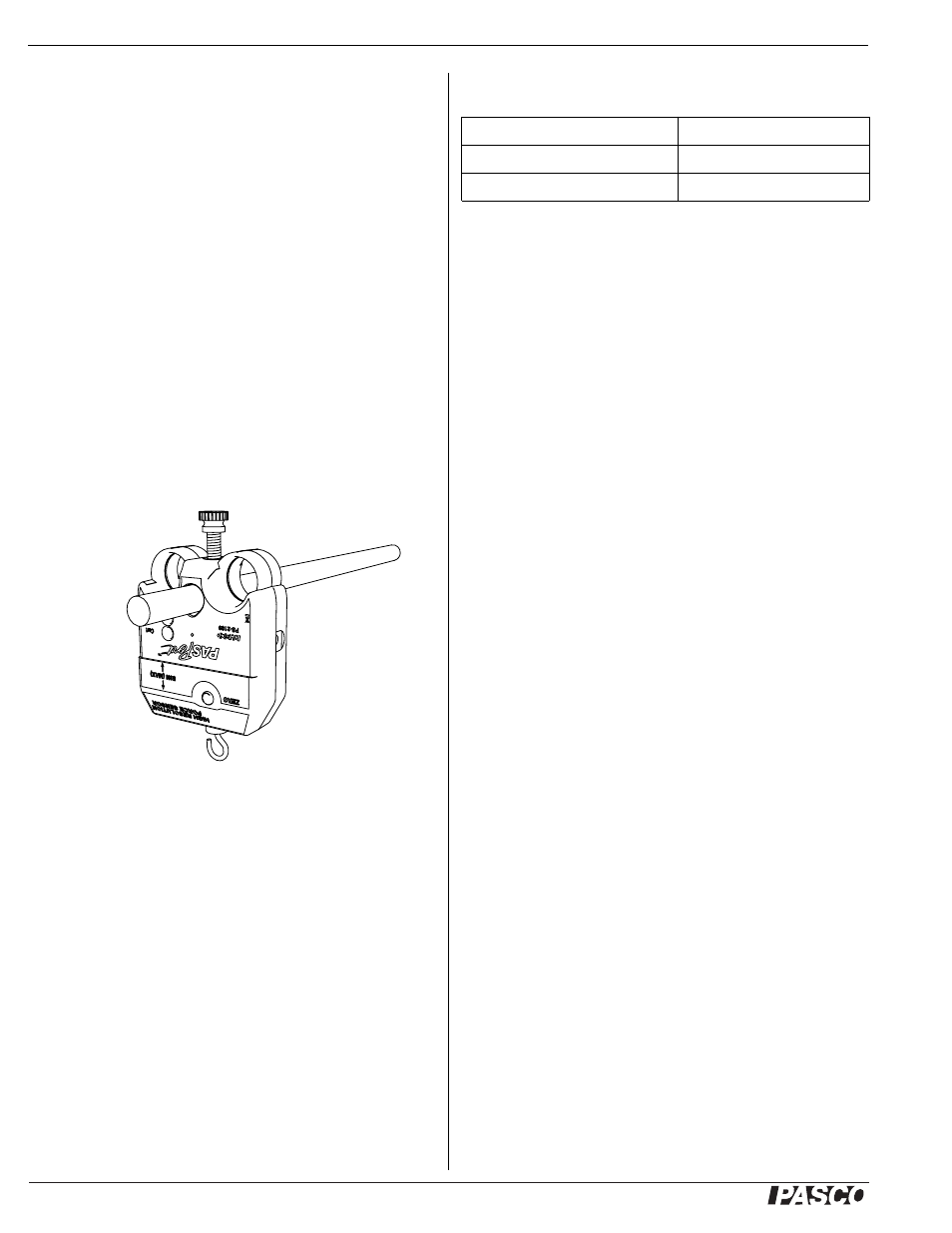

Mounting the Sensor on a Rod

Slide the sensor onto a rod and secure it with the thumbscrew as
illustrated.

Mounting the Sensor on a PASCO Cart

1.

Insert the included Cart/Bracket thumbscrew through the
hole in the senor labeled Cart.

2.

Screw the thumbscrew into the threaded hole on the top of
the cart.

Mounting the Sensor on an IDS Bracket

1.

Insert the included Cart/Bracket thumbscrew through the
hole in the IDS Force Accessory Bracket (PASCO part
CI-6545).

2.

Screw the thumbscrew into the hole in the sensor labeled
IDS Bracket.

Specifications

Technical Support

For assistance with any PASCO product, contact PASCO at:

For more information about the High Resolution Force Sensor
and the most up-to-date version of this Instruction Sheet, visit:

www.pasco.com/go?PS-2189

Limited Warranty

For a description of the product warranty, see the

PASCO catalog.
Copyright

The PASCO scientific 012-10237A

High Resolution Force

Sensor Instruction Sheet is copyrighted with all rights reserved. Permis-
sion is granted to non-profit educational institutions for reproduction of any
part of this manual, providing the reproductions are used only in their labo-
ratories and classrooms, and are not sold for profit. Reproduction under
any other circumstances, without the written consent of PASCO scientific,
is prohibited.
Trademarks

PASCO, PASCO scientific, and PASPORT are trademarks

or registered trademarks of PASCO scientific, in the United States and/or
in other countries. All other brands, products, or service names are or may
be trademarks or service marks of, and are used to identify, products or
services of, their respective owners. For more information visit
www.pasco.com/legal.

Range

±50 N

Resolution

0.002 N

Maximum Sample Rate

1000 samples/s

Address: PASCO scientific

10101 Foothills Blvd.
Roseville, CA 95747-7100

Phone:

916-786-3800 (worldwide)
800-772-8700 (U.S.)

Fax:

(916) 786-7565

Web:

www.pasco.com

Email:

[email protected]
