kit. A two-line, 16-character, 14-segment vacuum fluorescent display is used
for display of operating, setup, and alarm parameters.
A number of accessories can be used with this Temperature Controller, includ-
ing various types of temperature sensors, heating units, cooling units (such as
fans or pumps), remote alarms, and recorders.
CONTROL PANEL DESCRIPTION
Refer to Figure 4 and the following paragraphs.
Indicator
Lights
UP and
DOWN
Arrows
Function Control Keys
Alarm LED

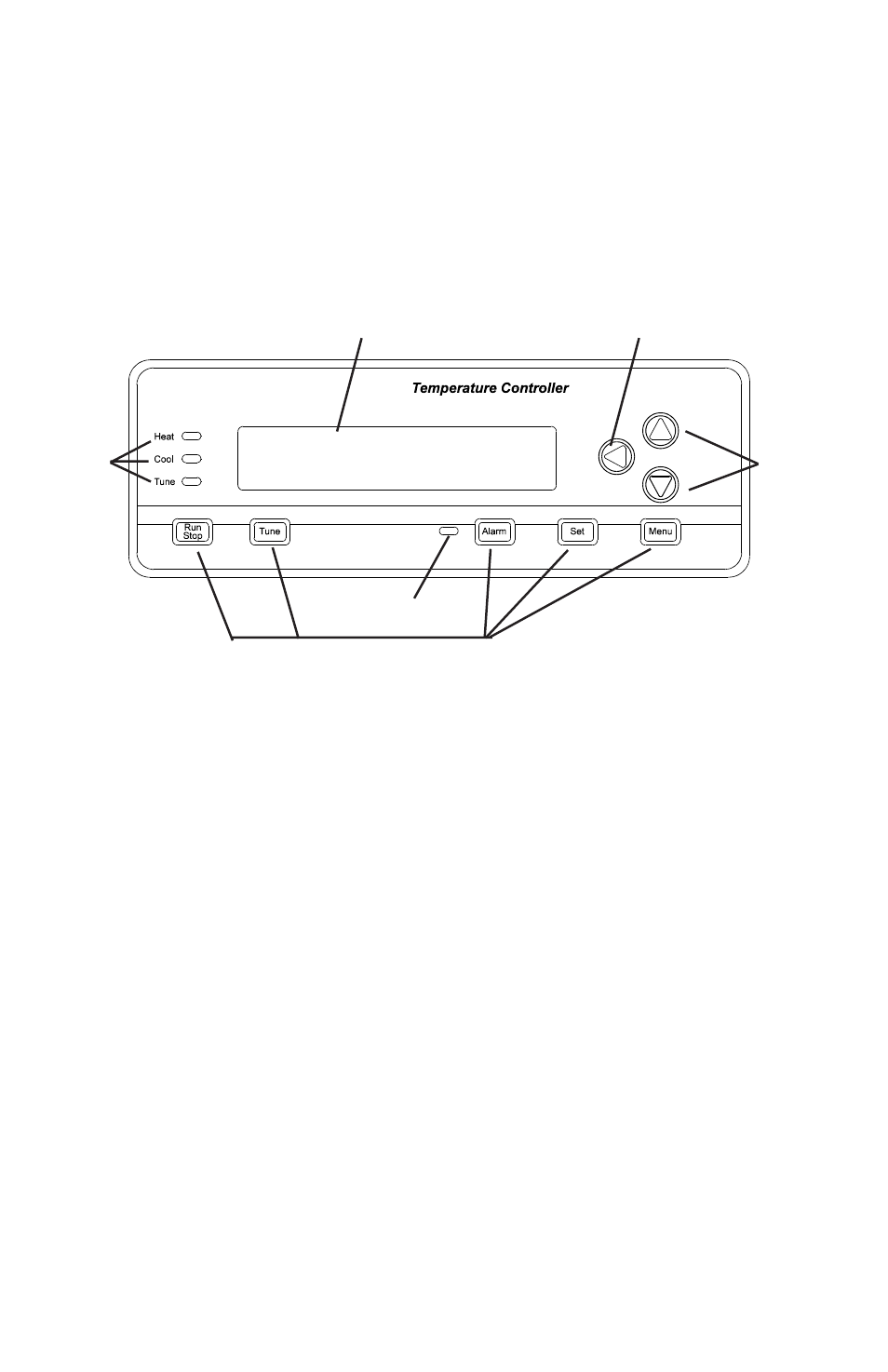

FIGURE 4. FRONT PANEL DISPLAYS
Readout Display LEFT Arrow
Vacuum Fluorescent Readout
The vacuum fluorescent readout displays operation and setup parameters.
Alarm conditions are also displayed.
UP, DOWN, LEFT Arrows
The UP and DOWN arrow keys will increment or decrement the current
values of displayed (blinking) numerals or enable you to scroll through a list
where multiple-choice parameters are offered. The LEFT arrow key allows
you to change numeric settings by moving the blinking cursor left to the next
most significant digit. When you have reached the most significant digit
(furthest left), the LEFT arrow key will move the flashing cursor back to the
least significant digit (furthest right).
MENU Key
The MENU key allows you to access all of the user-configurable setup pa-
rameters of the temperature controller. Pressing the MENU key will scroll
through the parameter options, using the arrow keys to change those pa-
rameters. Refer to the Setup Procedure section for additional information
on each parameter.
