Connectivity Status

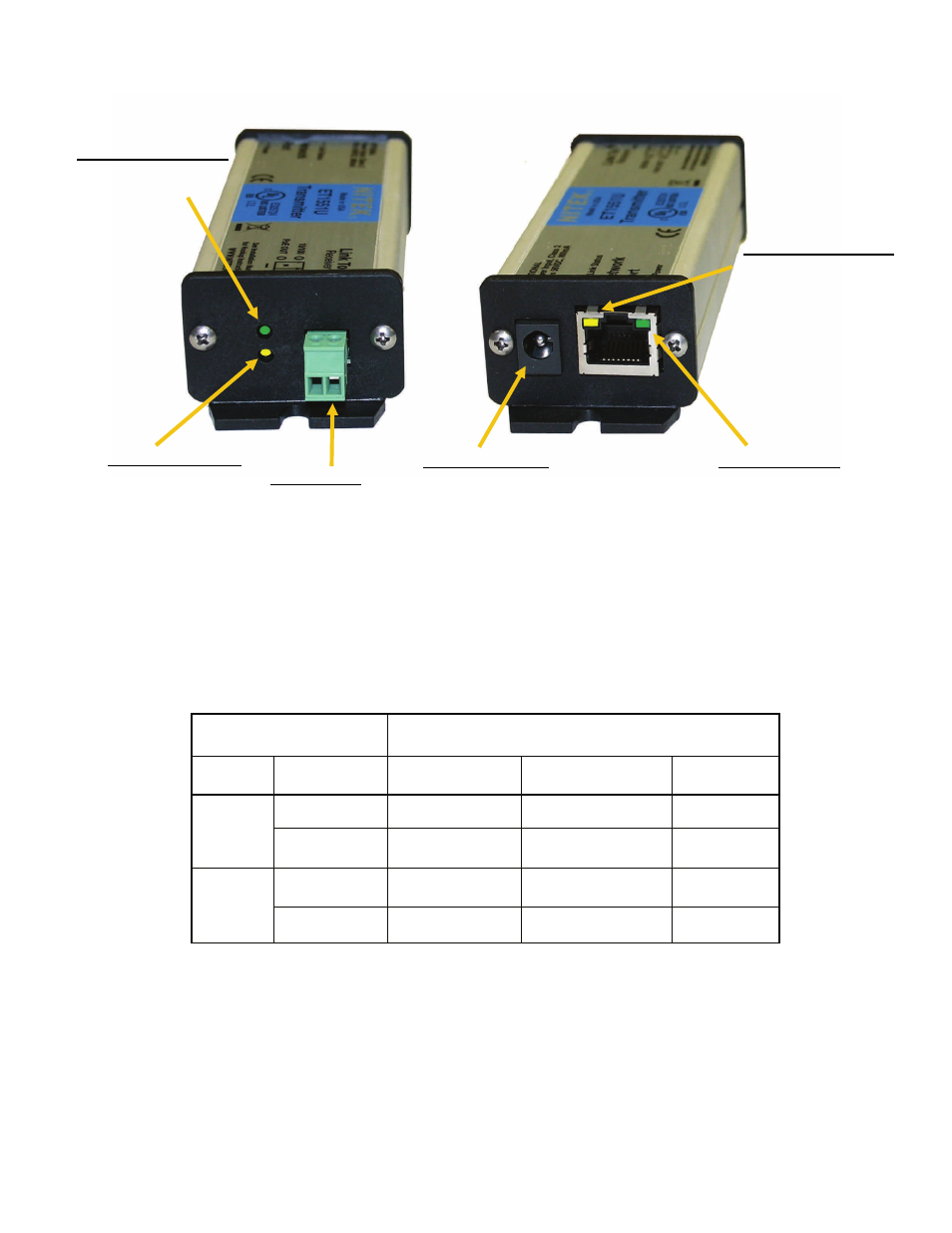

CONNECTION LED STATUS INDICATORS
PORT LED LABEL OFF ON FLASHING
Network
Power No Power Power Good NA
Link Status No Ethernet Link Ethernet Link Good NA
PoE Out No PoE Power Out PoE Power Good NA
10/100 No Link 100Mb 10Mb
Link
UTP Side of Device Network Port Side
10/100 Link LED Indicator
 On Solid = 100Mb
 Flashing = 10Mb
 Off = No Link
Link Status LED Indicator
 On Solid = Ethernet Link
 Off = No Ethernet Link
Power LED Indicator
 On Solid = The Unit is powered
and ready to use
 Off = The unit is not powered
PoE Out LED Indicator
 On = PoE is being provided
out the network port
 Off = PoE is “not” being sent
out the network port
UTP Connector
 Attaches to twisted
pair wires
Optional Power Input
 Class II 48-56VDC input to create PoE
in installations where a PoE switch is
not available.
 On Receiver used to power the system
when a PoE switch is not available.
 On Transmitter used to provide greater
PoE power out the network port.
