Description
The CAMTRV24 is a single channel video balun transceiver used for UTP video transmission combined with a
multi-function surge protector for in-line video, 2 wire P/T/Z control and the camera supply voltage. The CAMTRV24
is suited for outdoor cameras, where protection on all signal connections is required. The CAMTRV24 provides a
heavy-duty, single point ground connection. Proper installation is critical for proper operation of the unit. Please
read the instructions completely and insure good ground connections.
Specifications

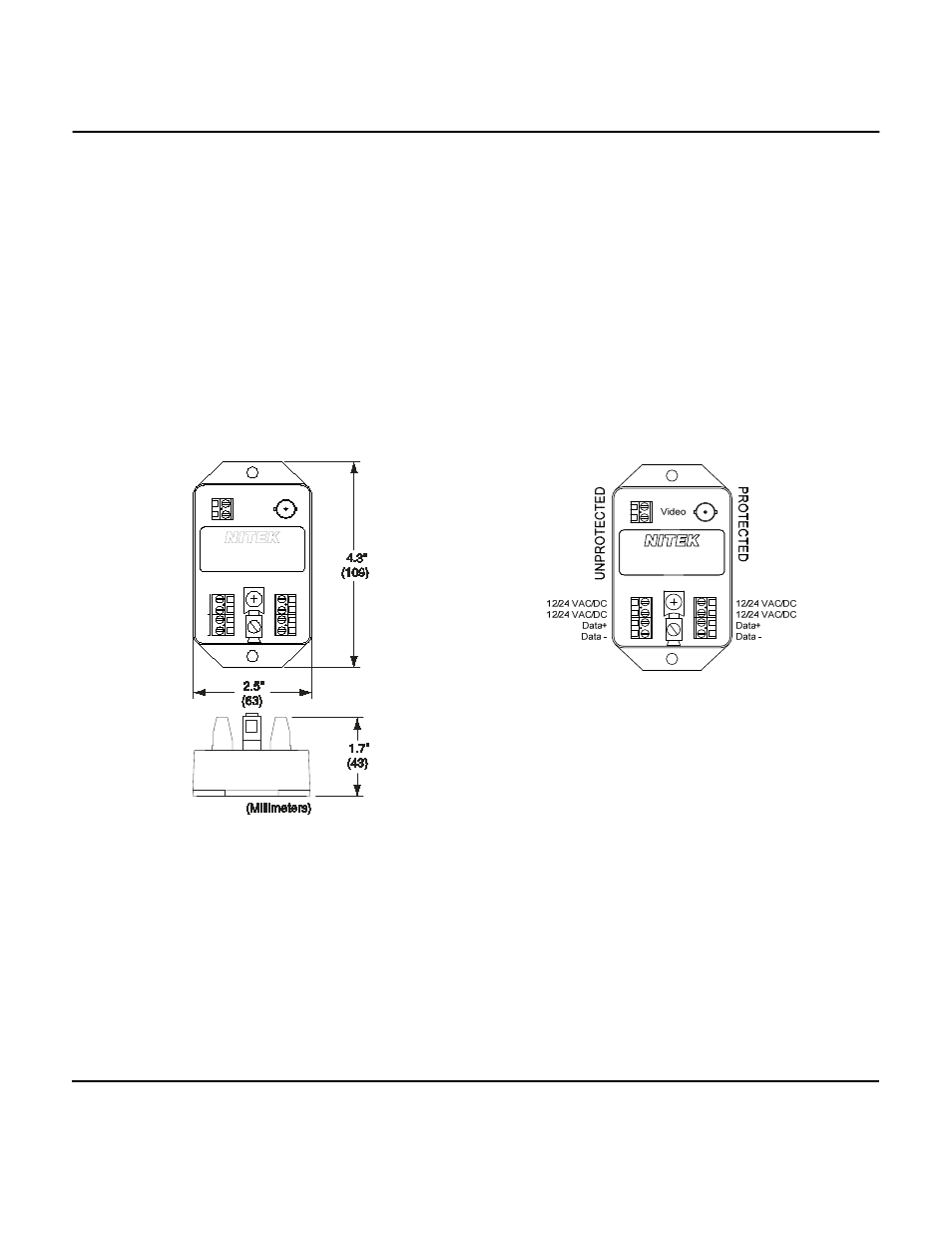

Size (mm)
1.7” H x 4.3” W x 2.5” D
Video Insertion
(43 H x 109 W x 63 D)
Loss
<0.2dB
Clamping
Video—2.8V
Impedance
50
or
75
Ohms
Voltage
Power—33Vrms Temperature
-25°C
to
+65°C
Control—4.7V
Frequency
DC
to
10
MHz
Model CAMTRV24
Video, Data and Power Surge Protector w/Built-In Balun
Installation and
Operation Manual
Date 12-2012 Rev 123112
