Introduction
This manual is designed to cover the VH456 receiver
hub. The VH456 receiver can be hooked up to several
different Nitek UTP passive transmitter units depending
on the transmission distance you need to go. The two
main types are, the passive transmitter and the active
transmitter. The passive transmitter requires no power
and can provide video up to 3,000 feet. Active
transmitters can provide video up to 6,000 feet. For
longer distances consult Nitek for other available
systems.
Note: This installation should be made by a
qualified service person and conform with local
codes.
Model VH456
4 Port Active Video Mini-Hub
Installation and
Operation Manual
Rev 021411
NITEK
®
Europe Office:
De Schans 19-21 2a, 8231 KA Lelystad
The Netherlands
Tel: +31(0)320-230005
Fax: +31(0)320-282186
E-mail: [email protected]
WWW.NITEK.NL USA Office:
5410 Newport Drive, Rolling Meadows, IL 60008
Phone: (800) 528-4343
Fax: (847) 259-1300
E-mail: [email protected]
WWW.NITEK.NET
680240109
Reduce risk of fire or electrical shock. Do not
expose this product to rain or moisture. !
Specifications
Size 1.8”H x 5.5”W x 4.6”D
Power Requirements 12/24 VAC/DC @ 350mA
Input
UTP Video
Output-Video
1vpp composite video
Monochrome or Color
24 AC 24 AC 300mA 300mA 50\60 Hz 50\60 Hz
Class 2 only Class 2 only
1 2 3 4
1+1 + 1 - 2+2 + 2 - 3+3 + 3 - 4+4 + 4 - DETECT DETECT
1 2 1 2
3 4 3 4
VIDEO VIDEO
T568B T568B
T568B 87654321 +- +- +- +- 4 1 2 3 1.8
4.6
5.5

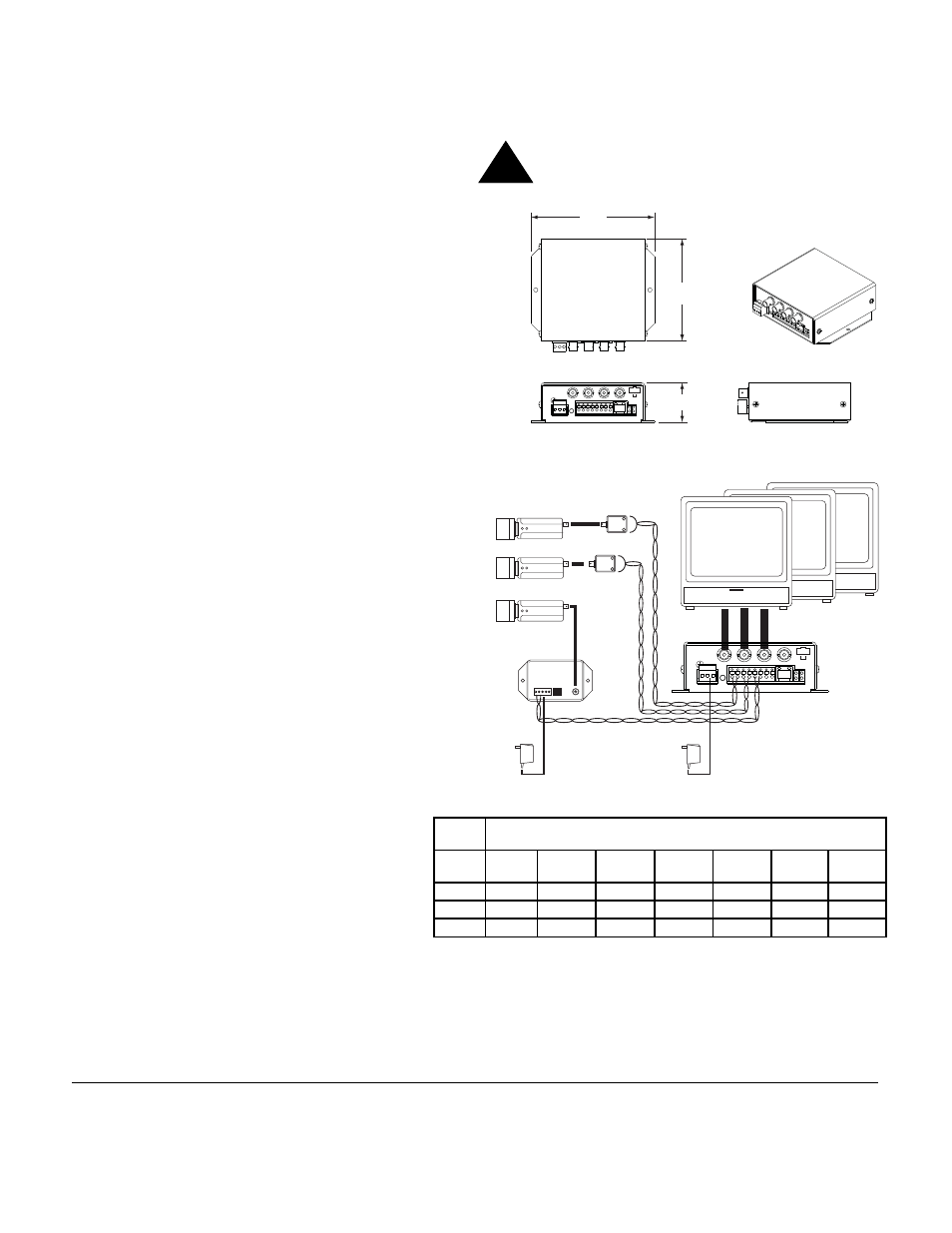

VH456 Common Hookup Diagram
Determining Cable Length
Check the twisted pair for continuity. Do this by
shorting the pair of wires at one end and use an
ohm meter to check the resistance at the other
end. Use the chart to determine the length of
your wires for a measured resistance. Also, use
a multimeter to test the line and make sure there
is no voltage on it. Testing each line and
recording the length for each camera run can
greatly reduce installation time. For distances
greater than 3,000 feet an amplified transmit
source may be needed.
Wire
Gage
500
(150)
1000
(300)
2000
(600)
3000
(900)
4000
(1200)
5000
(1500)
6000
(1800)
22 16 32 64 97 129 161 194
24 26 51 103 154 205 257 308
26 41 82 163 245 326 408 490
Distance in Feet (Meters)
