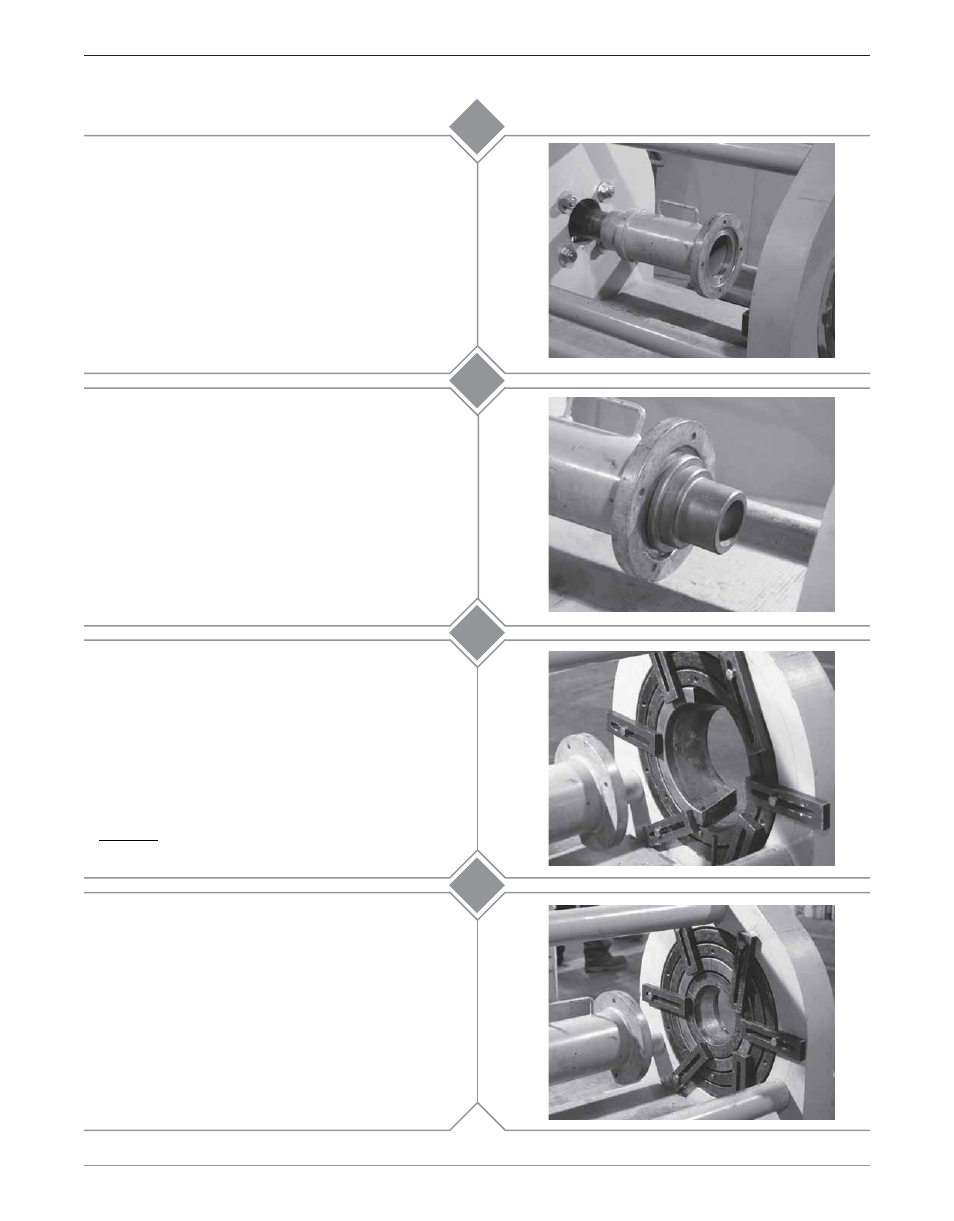

Section 5
50 Ton Ram Instruction Manual
Install the 6" main pusher (MPUSH600) on cylinder
rod cap. Make sure that the pusher is fully installed
on the rod cap.
3a
3b
1
Install the 4" pusher (50TPUSH400) into the main
pusher.
Install the Cam & Groove pusher necessary to do
the size and style of coupling to be swaged.
Additional pushers may be required.
Reference the chart at the end of this section for
proper pusher selection.
2
Secure the die holders with tie down bars to prevent
the die holders from slipping out of the die bed
unexpectedly.
Install the required die holders ensuring that the
seams between the die holder halves do not line up.
The die holders are designed to fit one inside the
other.
A guideline for selecting die holders is:
50TDH6003 1¼" - 3" I.D. hose
50TDH9004 4" I.D. hose
Caution! Never use a swaging die as a die holder!
