BAND CLAMP TOOL
F40
Ratchet style tool

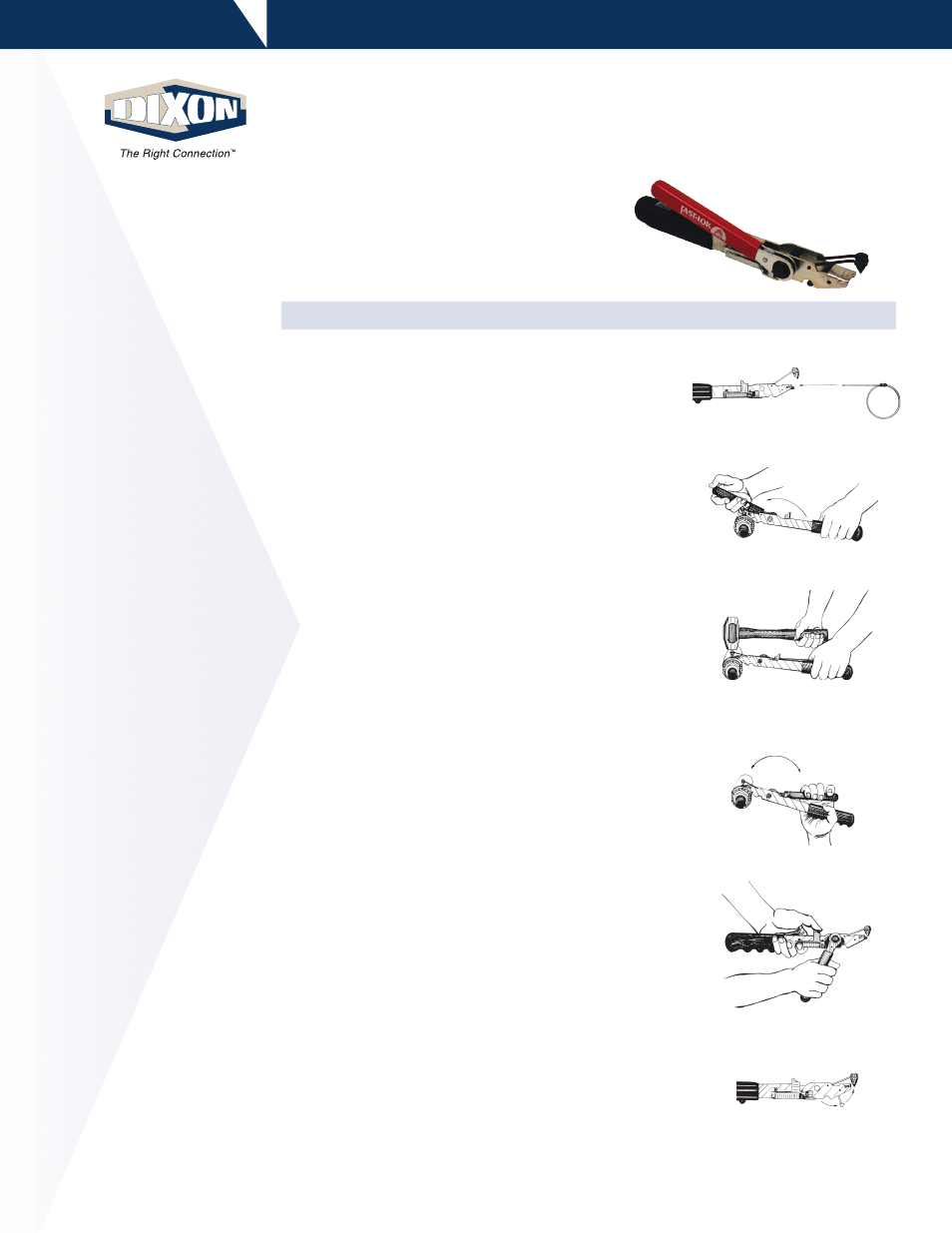

Operating Instructions for the F40 Installation Tool
For applying 3/8" and 5/8" width band clamps
Push end of clamp into slotted end of clamp tool.
Rotate ratchet wrench to engage clamp end in slot
in winder.
1
Push ratchet wrench forward with sufficient strokes
until desired tension is obtained.
2
Grip ratchet wrench and tool together. Push punch
down on lock and strike firm blow with hammer,
thus locking the clamp tension.
3
Raise punch and while holding wrench and tool
together, rotate tool forward and up against edge of
the lock, breaking off tail piece.
4
To remove tail piece, rotate wrench until tail is
free from slot in tool. With thumb, slide lever and
remove winder and wrench from tool.
5
For application of 3/8" wide clamps, swing 3/8"
adapter to forward position and follow steps 1
through 5.
6
