Insertion Dimensions for Rostra Fittings
1" ...........................................................25/32"
1¼" ........................................................25/32"
1-3/8" ....................................................25/32"
1½" ...................................................... 1-1/32"
2" ....................................................... 1-19/32"
2½" ........................................................ 2-1/4"
3" ........................................................... 2-3/4"
4" ......................................................... 3-7/32"

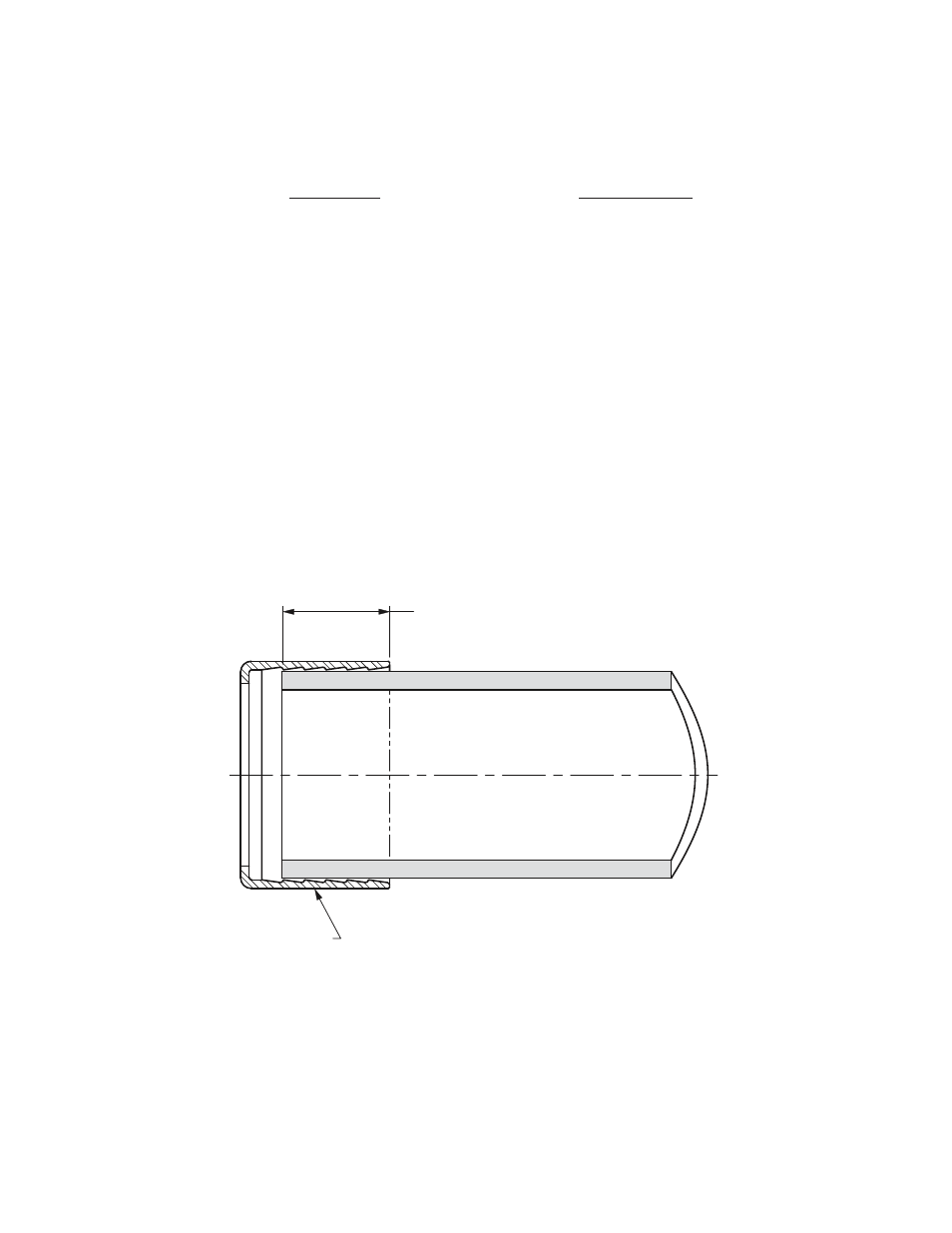

Ferrule Sizes
Insertion Length
INSERTION LENGTH
FERRULE
