Dixon Valve 15 TON RAM Internal Expanded Holedall Petroleum User Manual
Page 2

2
Dixon Valve & Coupling Co., Call 1-800-355-1991
15 Ton Ram IX 8/06

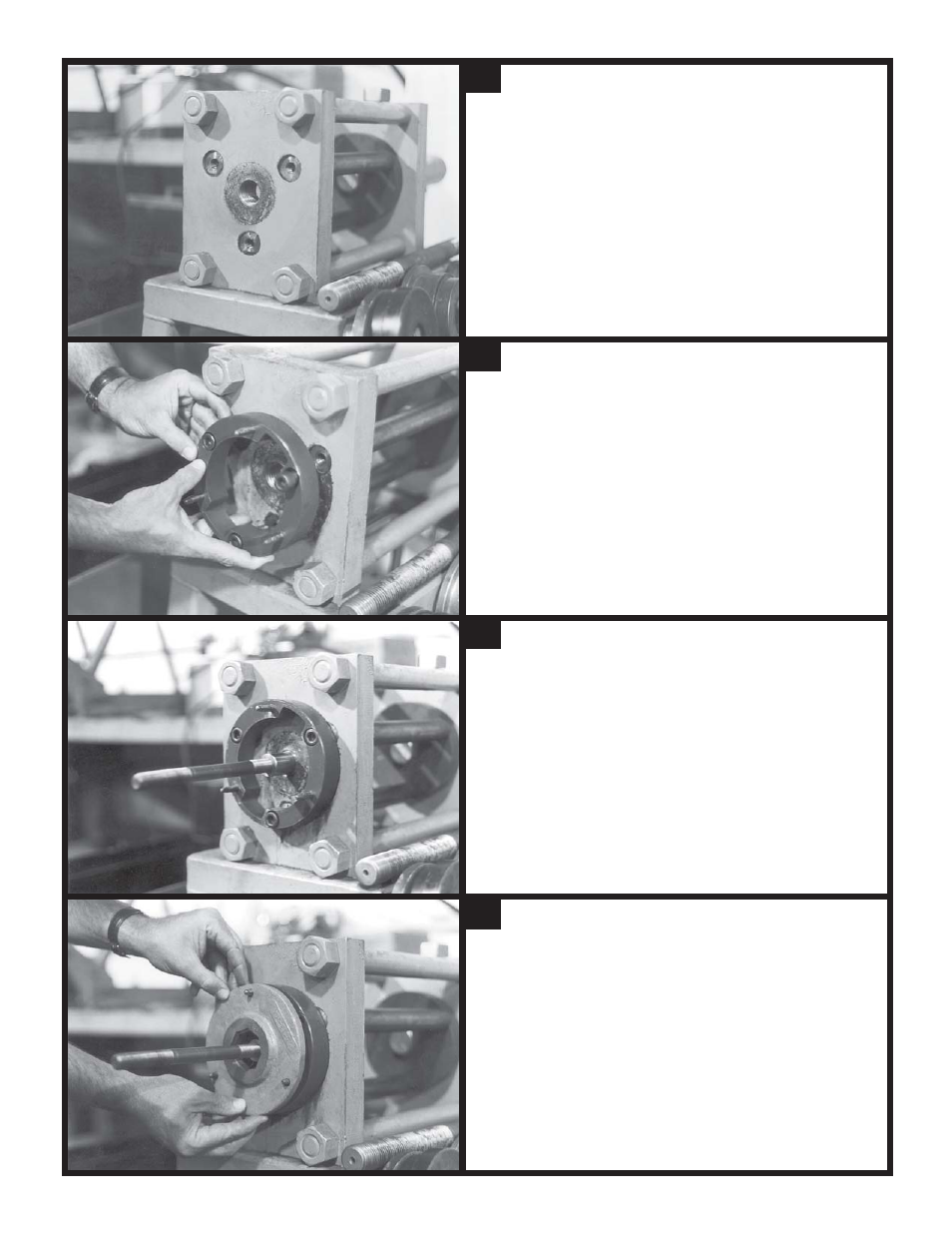

Ensuring that the ram is fully retracted, remove
the standard base plate.
Select the proper pull rod. For 5/8” and 3/4”
couplings use 15ROSTROD. For 1” through 1 1/2”
couplings use 15RODSMALL.
Note: 15RODSMALL is shown. For 2” through 4”
couplings use 15RODLARGE.
Note: To use 1 1/4” through 4” keyed plugs (from
HMA machine) use 15ROSTROD with keyed shaft
part number 25000HSP10.
Install the pull rod into the base plate of the 15 Ton
Ram.
Select the proper thrust plate. Making sure that
the recess is facing outward towards the
operator, slide the thrust plate over the pull rod
until it reaches the thrust plate holder. Align
the holes in the thrust plate with the dowel pins
on the 15ROSTPA and slide the thrust plate
over the dowel pins until it contacts the face of
the 15ROSTPA.
3
2
1b
1a
Replace the standard base plate with the Holedall
Petroleum thrust plate holder (15ROSTPA).
