Dixon Valve HB Coupling Expander User Manual
Page 5
5
HBEXP_web-411
Dixon Valve & Coupling, Call 800.355.1991
HB Coupling Expander Instructions

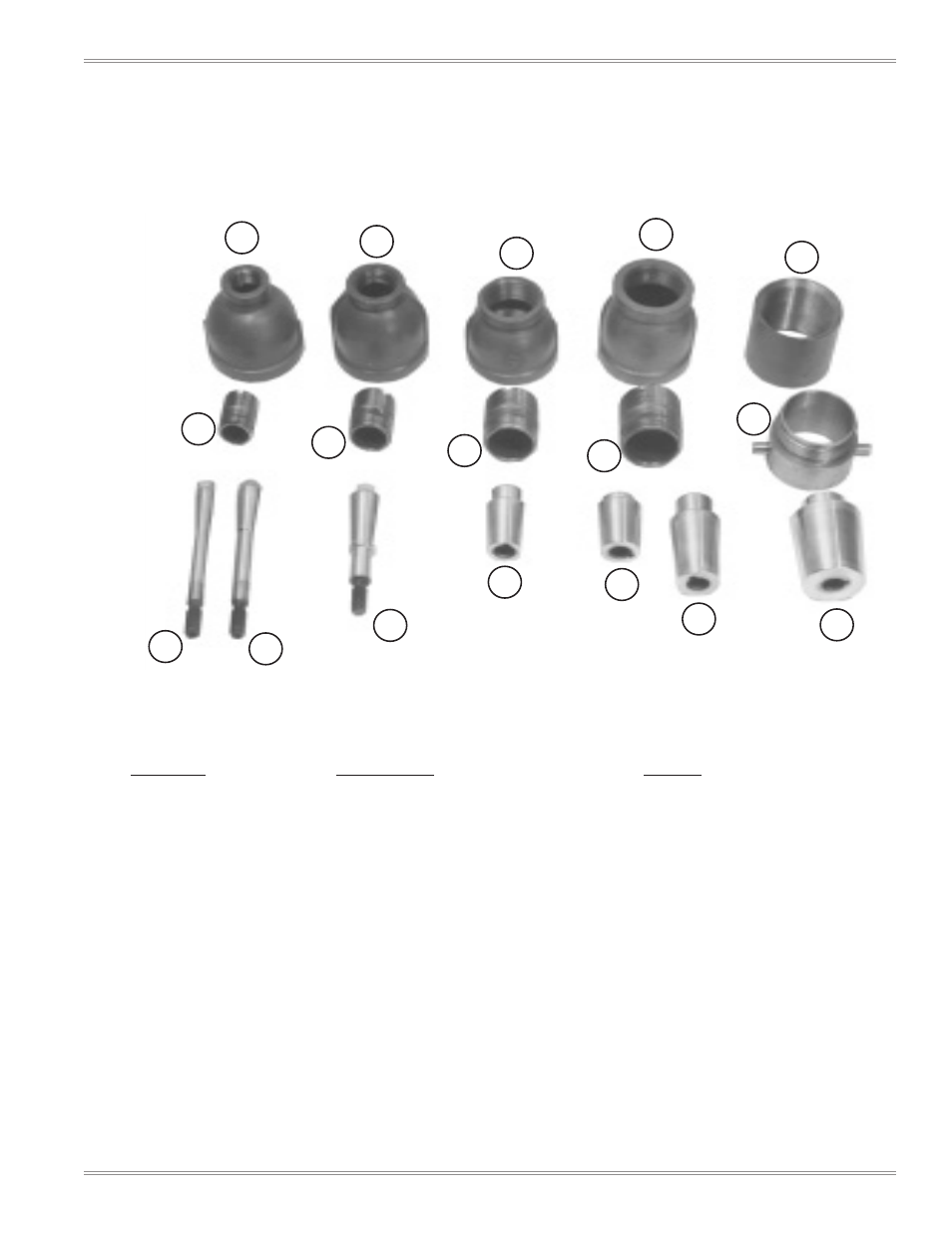

TOOLING FOR
HB EXPANDER
PHOTO #
PART NAME
PART #
11
5/8" Expanding Punch
25000HTL01
12
3/4" Expanding Punch
25000HTL02
13
1" Expanding Punch
25000HTL03
14
1¼" Expanding Punch
25000HTL04
15
1-3/8" Expanding Punch
25000HTL05
16
1½" Expanding Punch
25000HTL06
17
2" Expanding Punch
25000HTL07
18
2" x 3/4" Standard Reducer
2500HBTL01 (
BR2075
)
19
2" x 1" Standard Reducer
2500HBTL02 (
BR2010
)
20
2" x 1¼" Standard Reducer
2500HBTL03 (
BR2012
)
21
2" x 1½" Standard Reducer
2500HBTL04 (
BR2015
)
22
2" Standard Coupling
2500HBTL05 (
RHC200
)
23
3/4" x 1-3/8" Close Nipple
2500HBTL06 (
CN075
)
24
1" x 1½" Close Nipple
2500HBTL07 (
CN100
)
25
1¼" x 1-5/8" Close Nipple
2500HBTL08 (
CN125
)
26
1½" x 2-3/4" Close Nipple
2500HBTL09 (
CN150
)
18
19
20
21
22
23
24
25
26
3
11
12
13
14
15
16
17
