Dixon Valve HB Coupling Expander User Manual
Page 4
4
HBEXP_web-411
Dixon Valve & Coupling, Call 800.355.1991
HB Coupling Expander Instructions

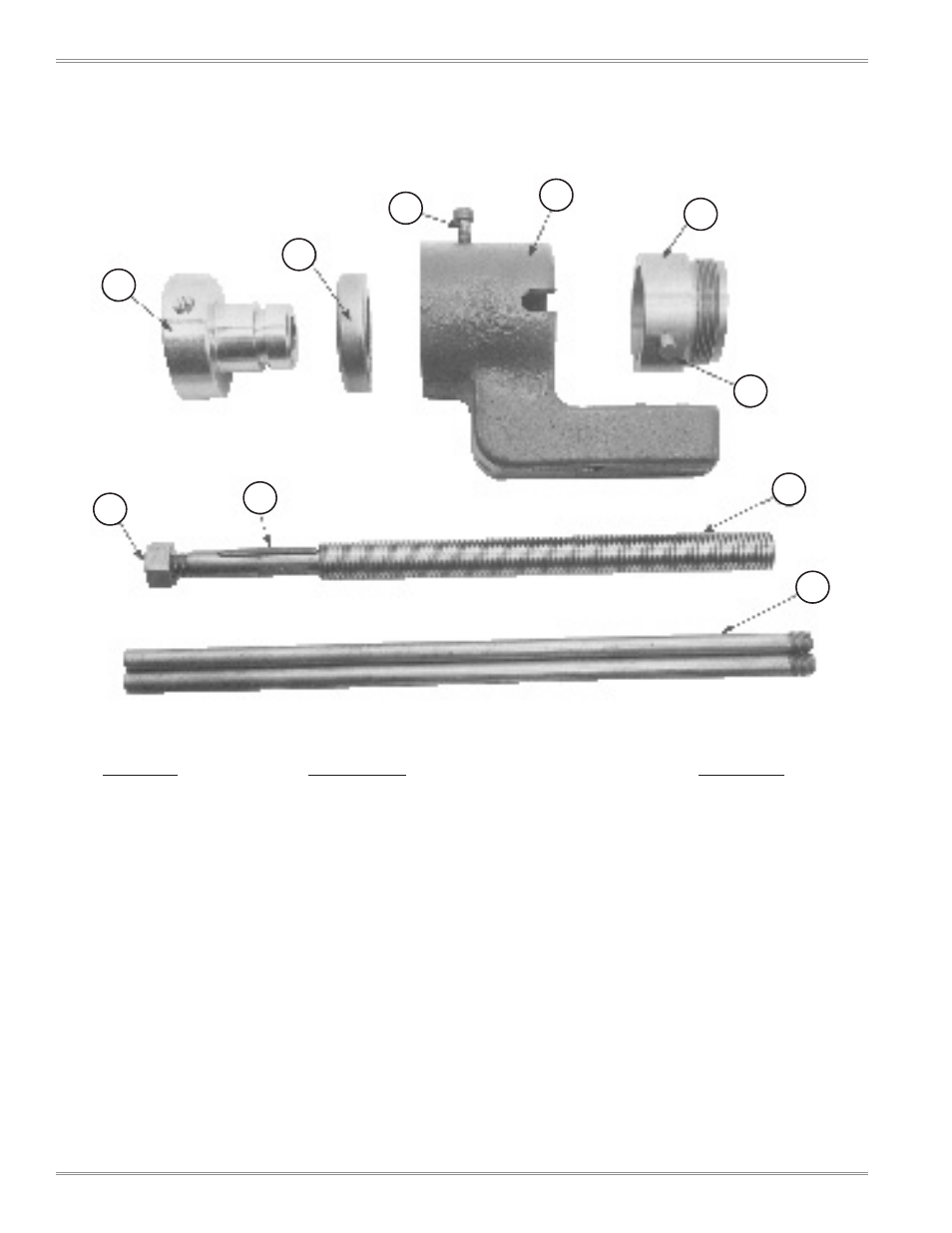

PARTS LIST FOR
HB EXPANDER
PHOTO #
PART NAME
PART #
1
Body
2500HB0001
2
Drive Screw Nut
2500HB0002
3
Thrust Connector
2500HB0003
4
Thrust Connector Pin (2 required)
2500HB0004
5
Drive Screw with Key
2500HB0005
6
Handle (2 required)
2500HB0006
7
Punch Retaining Nut
25000HSP11
8
Lock Screw
2500HB0007
9
Thrust Bearing
2500HB0008
10
Key
25000HSP15
1
3
4
5
6
7
10
2
9
8
