Operation, Overview of operating elements, Tyrolit hydrostress ag – Diamond Products WSE2226 User Manual
Page 8
TYROLIT
Hydrostress AG
Page 8
Operation

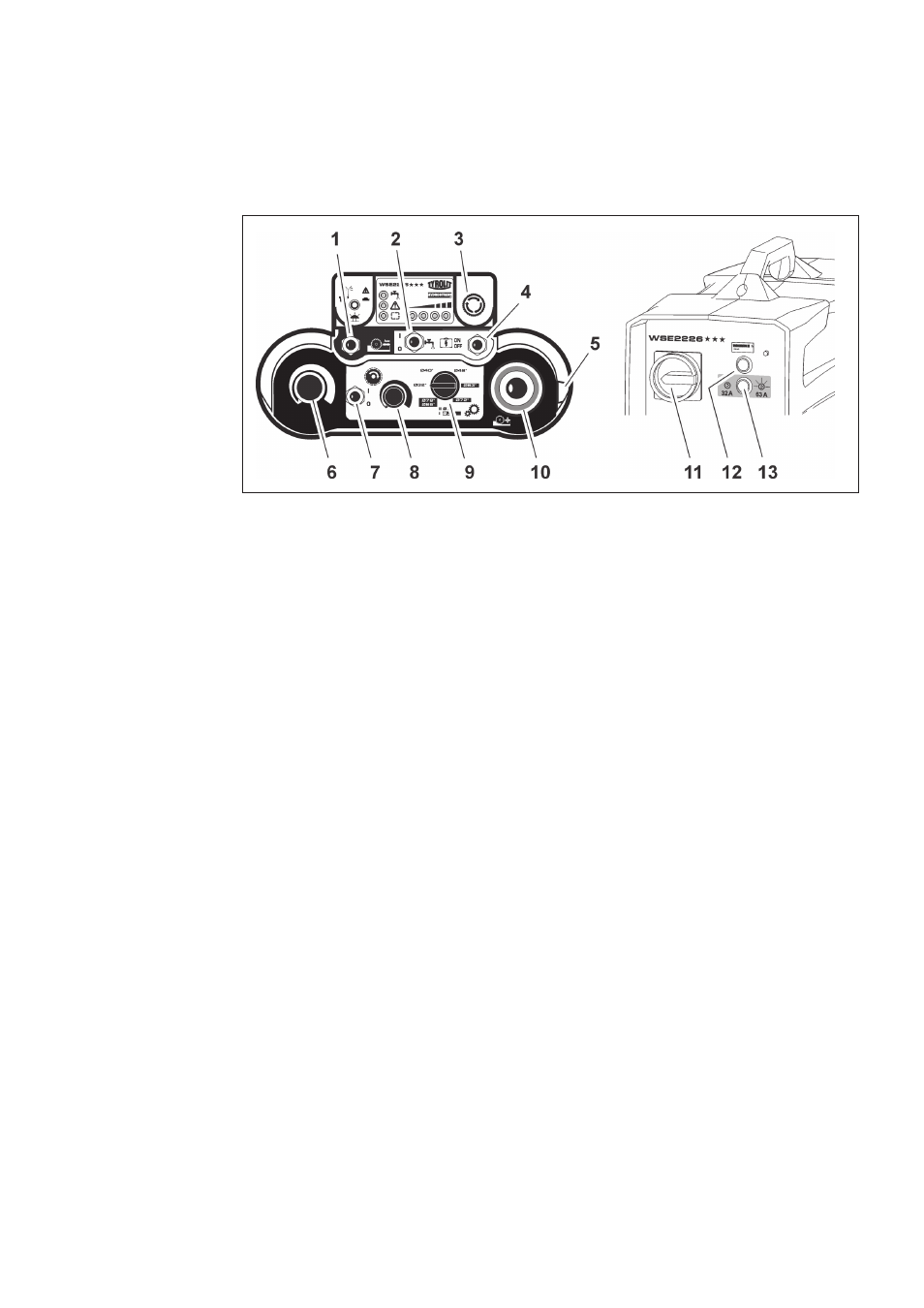

Overview of operating elements
Controls
1 Position lock switch (Traverse feed)
8 Main motor potentiometer
2 Water On / Off
9 Diameter selector switch
3 EMERGENCY STOP
10 Feed joystick
4 Pulse switch control unit
11 Main switch Control unit
5 Starter switch
12 Reset button
6 Feed potentiometer
13 Mains system selection button
7 On / Off, main motor
4
4.1
