TYROLIT Hydrostress AG
Page 20
Technical data

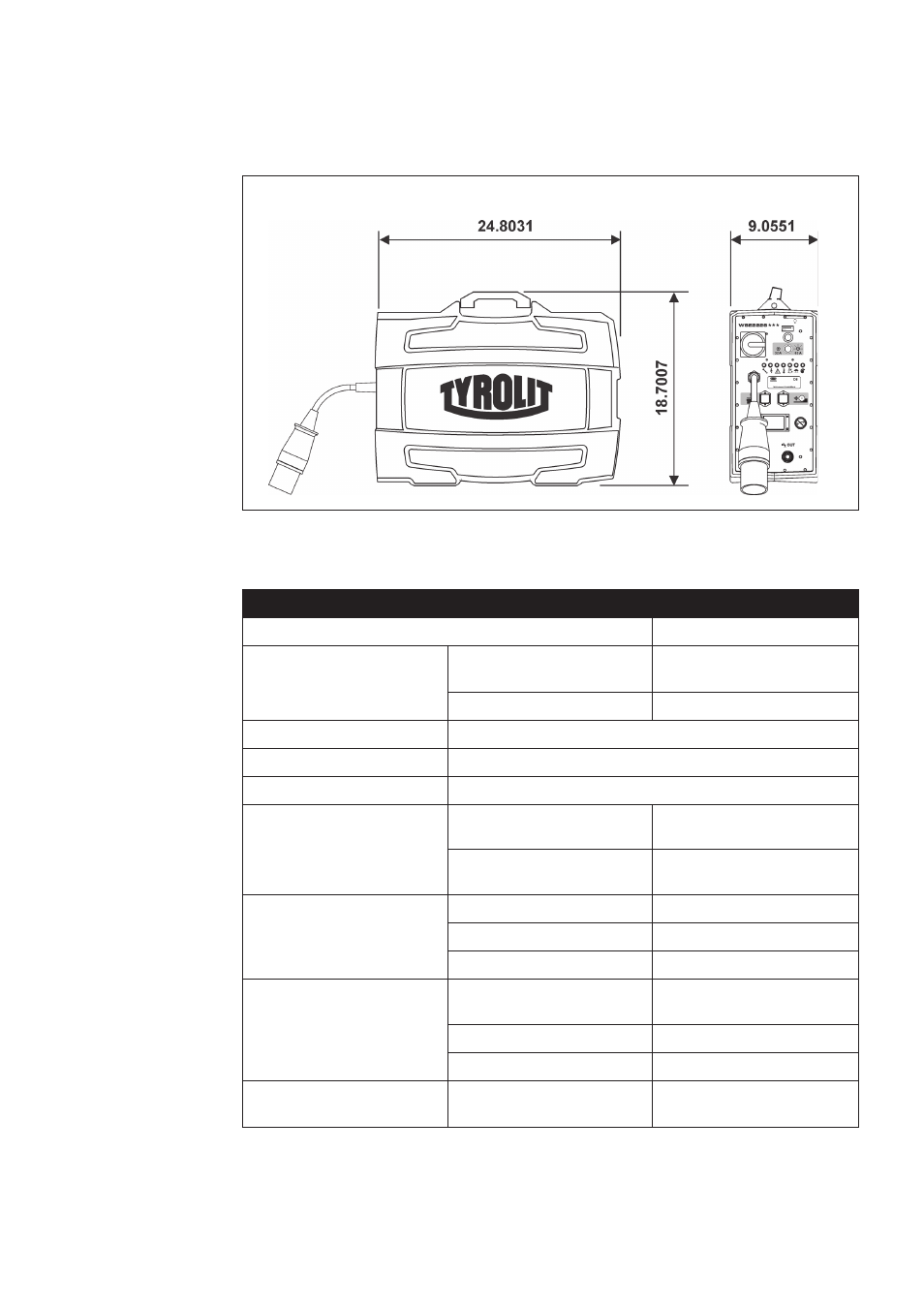

Dimensions in inch
Technical data
Parameter Value
Weight Control unit WSE2226 
incl. remote controller
57.3 Ibs
Remote controller separate 4.4 Ibs
Protection class IP 65 (4.4X NEMA rating)
Connection values 380 to 420 VAC / 50 Hz / 60 Hz
Max. current consumption 38 A
Power With 32 A power supply net-
work 17 kW
With 63 A power supply net-
work 26 kW
Internal control voltages Controller / remote controller 24 VDC / 3.6 VDC
Feed drives 48 VDC
Main drive unit 400 VAC, 0...400 Hz
Water Cooling the control unit Water cooling the power semi-
conductors
Cooling water flow rate min. 1.05 gmp at max 77 °F
Water connection min. 29psi / max. 87psi
Usage temperature Control unit WSE2226 
incl. remote controller
+14°F to +104°F
