Selecting mains network
The control unit WSE2226 is preset for a 63A power supply network (63A button lights
up). It is possible to switch over to a 32A power supply network. The system automatically
returns to the 63A settings when it is restarted.
X
To set the power supply network to 32A press the power network selector (13), the button
light goes out.
Resetting must take place directly after switching on the control unit WSE2226.
Tool soft start
The control unit WSE2226 provides a facility for a tool soft start.
Proceed as follows:
X
Starting the control unit WSE2226, see 4.2.
X
Turn the main motor (8) potentiometer to the 0 position.
X
Press the switch main motor (7) to I.
X
Select the desired output level, see 4.5.
X
Turn the main motor (8) potentiometer slowly to 100% power.

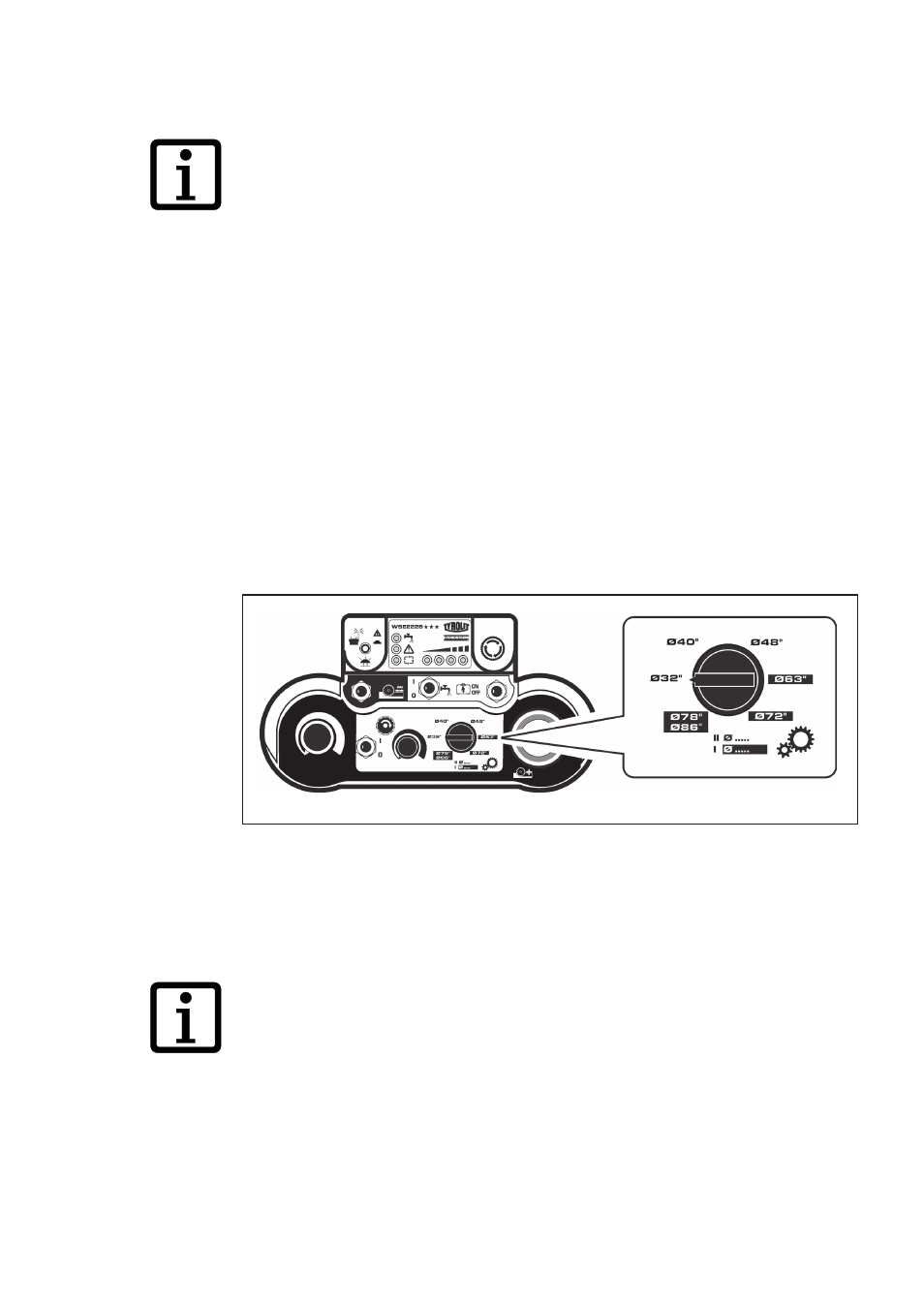

Selecting tool station
After the control unit WSE2226 has been started correctly the tool station can be selected.
Selecting the power level
Proceed as follows:
X
Set the diameter selector switch to the desired tool and turn the main motor potentiometer
from 0 to 100%.
X
Check gear at gearbox of drive motor.
The tool stations may not be changed during operation.
The tool stations are set with reference to the tool diameter for the optimum rotational speed
and cutting performance.
The rotational speed can be reduced using the main motor potentiometer but at the same time
the power is reduced.
4.3
4.4
4.5
