Diamond Products CC7074 User Manual
Page 40
37
Appendix C
Belt Tension Settings
Table 4: Belt Tension Settings
Model
Engine Type
Belt
Belt No.
Deflection Force Deflection
CC7074 Kubota
V3307-DI-T-E3-B
Blade Drive
Belts
5/3VX375
30 lb
.17”
5/3VX355

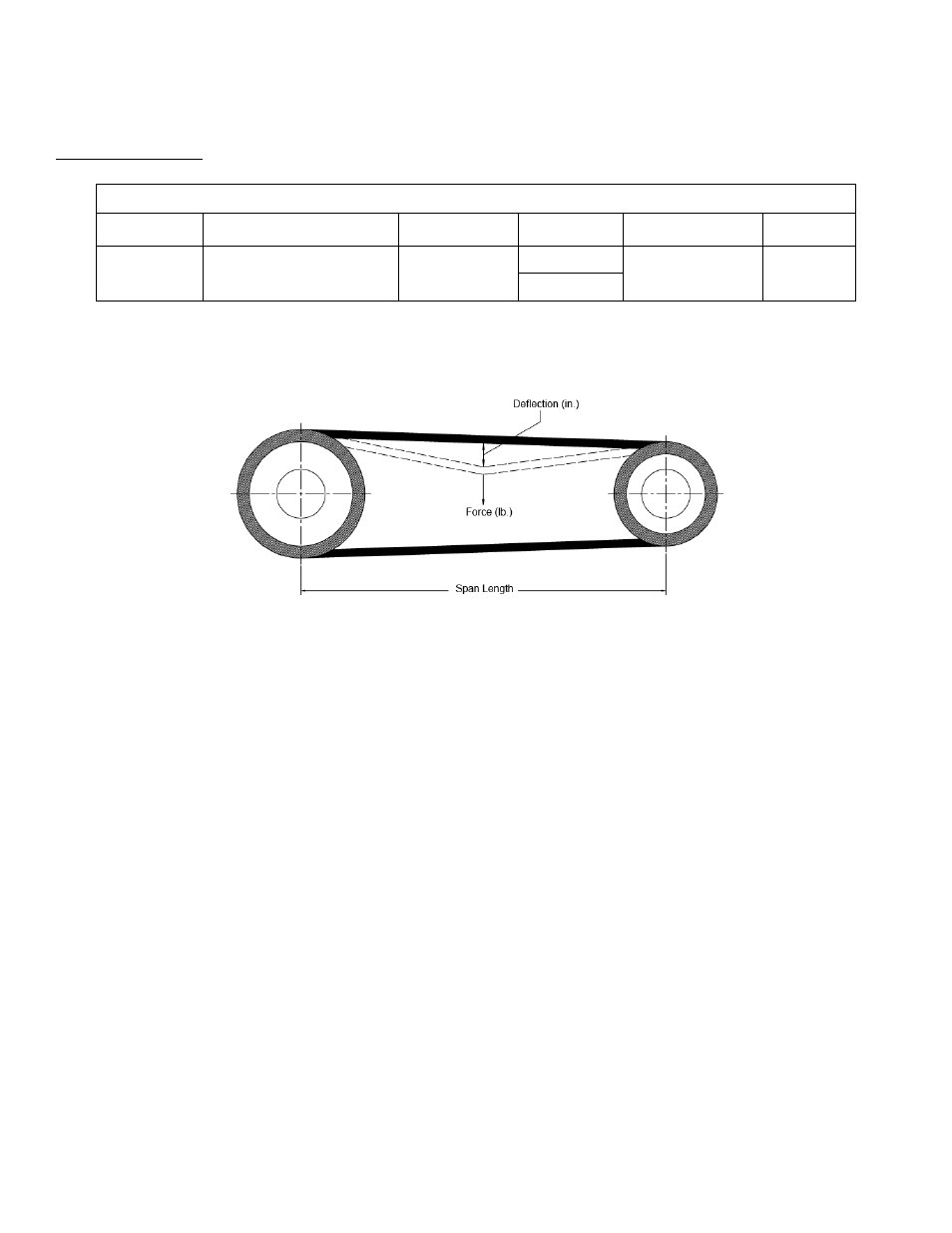

Deflection (in.) should be equal to number of inches listed in chart above
when deflection force (lb) listed in chart above is applied to middle of belt
using tension gauge.
