Dimensions

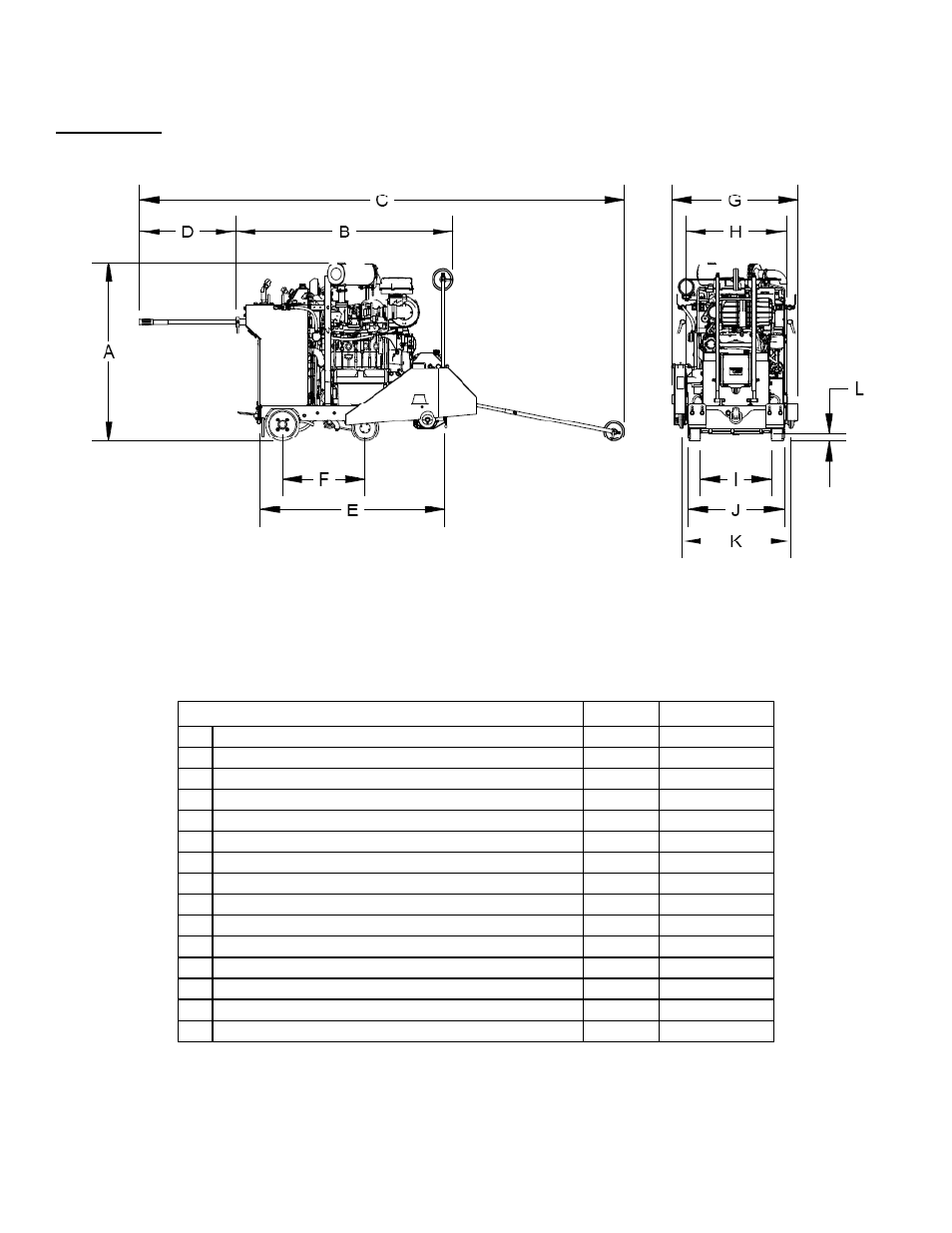

Figure 2: CC7074 Dimensions

Table 1: CC7074 Dimensions

Inches Millimeters

A

Saw height

52-1/2"

1334 mm

B

Minimum Saw Length

63-1/2"

1613 mm

C

Maximum Saw Length

140"

3556 mm

D

Maximum Handle Extension

28"

711 mm

E Frame

Length 53-3/4"

1365

mm

F

Wheel Base Length

24-1/4"

616 mm

G

Saw Width

36-1/2"

927 mm

H Frame

Width

29"

737

mm

I

Front wheels - Inside Width

20-1/2"

520 mm

J

Rear wheels - Outside Width

27-3/4"

705 mm

K

Inner Flange to Inner Flange Width

31-3/4"

806 mm

L1

Ground Clearance when level

2-1/2"

63 mm

L2

Ground Clearance when raised

1-3/4"

44 mm

maximum height - blade shaft(not shown)

26"

660 mm

Crated dimensions (L x W x H) - 70" x 44" x 59"
