Diamond Products CC4144D (3 Speed) - Manual (Page 47)

ITEM PART NO. QTY. DESCRIPTION
1 2501941 AR Thrust Bearing Washer
2 2502139 1 Retaining Ring, 7/8" External
3 2503841 2 Bearing, 7/8" 2-Bolt Flange
4 2500872 1 V-Belt, 4L-520
5 2900006 2 Lock Washer, 3/8" Split
6 2900013 4 Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
7 2900014 2 Flat Washer, 3/8" SAE
8 2900023 4 Cap Screw, Hex Hd., 1/4-20 x 5/8"
9 2900024 4 Lock Washer, 1/4" Split
10 2900038 2 Lock Washer, #10 Split
11 2900159 2 Machine Screw, Rd. Hd., #10-24 x 5/8"
12 2900142 1 Set Screw, Soc. Hd., 5/16-18 x 3/8"
13 2900321 3 Lock Washer, M10 Split
14 2900425 AR Flat Washer, 7/8" SAE
15 2900626 1 Jam Nut, 7/8-14
16 2900749 3 Cap Screw, Hex Hd., M10-1.25 x 25mm
17 2900919 1 Key, 3/16" Sq. x 9/16"
18 2901110 1 Lock Washer, 7/8" Split
19 3202320 1 Hose Clamp, 2-1/16" - 17"
20 6045126 1 7" Pulley Guard
21 6045127 1 Pulley Assembly, 4L x 6"
22 6045095 1 Vent Duct, 12" OD x 18"
23 6045332 1 Fan Shaft
24 6045334 1 Pulley, 4L x 3-1/4"
25 6045335 1 Fan Shaft Spacer
26 6045336 2 4.25" Pulley Guard
27 6045337 1 Fan Assembly
28 6048018 1 Key, 3/16" Sq. x 3/4"

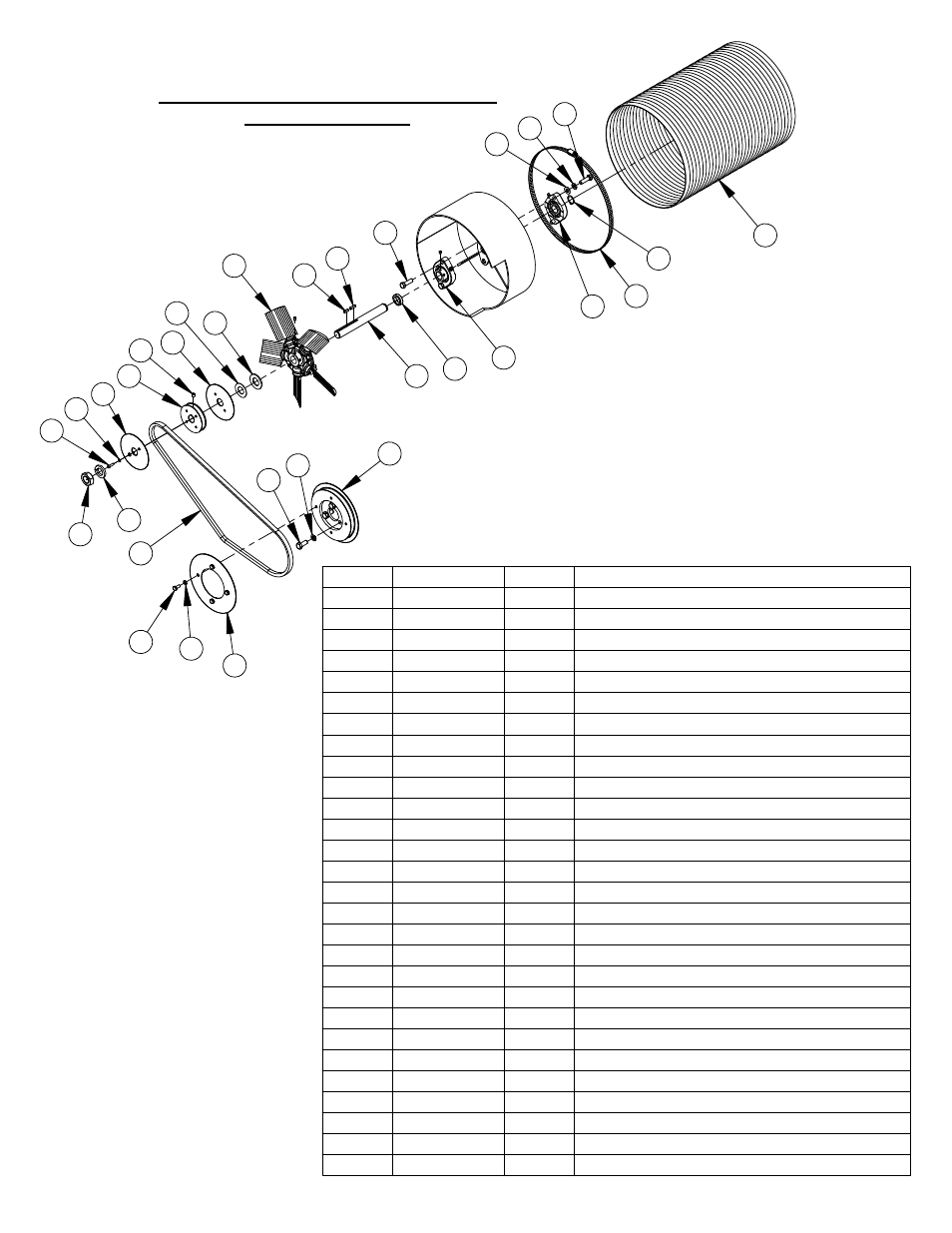

Cooling Fan Assembly #6045440
(3-Speed Setup)
