Diamond Products CC4144D (3 Speed) - Manual (Page 12)

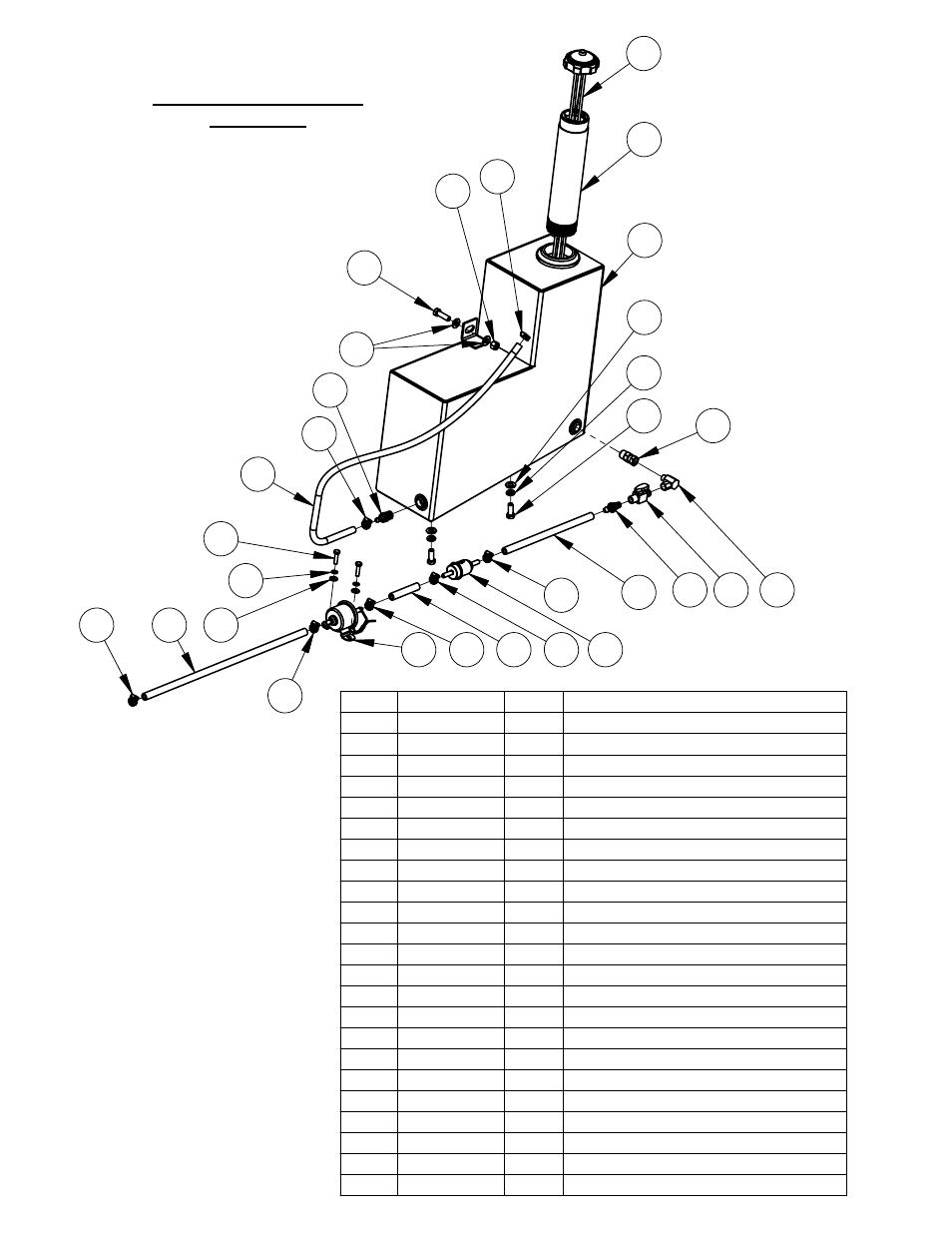

Fuel Tank Assembly
#6045030
23
1
2
3
4
6
8
7
8
9
8 21
8
18
19
20
17 8 16 8 15
8 14 13 12 11
10
22
5
5
ITEM PART NO. QTY. DESCRIPTION
1 6045066 1 Fuel Tank
2 6045132 1 Fuel Filler Neck Assembly
3 2503933 1 Fuel Tank Cap, 23"
4 2900013 1 Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
5 2900014 4 Flat Washer, 3/8" SAE
6 2900018 1 Lock Nut, 3/8-16 Nylon
7 3200070 1 Fitting, 3/8" MPT to 1/4" Pushlok
8 3200062 7 Hose Clamp #4
9 6010103 1 Fuel Return Hose, 1/4" I.D. x 32"
10 3200058 1 Adapter, 3/8" MPT to 1/4" FPT
11 3200059 1 Elbow, 1/4" Male to 1/4" Female Pipe
12 3200108 1 Fuel Shut-Off Valve, 1/4"
13 3200202 1 Fitting, 1/4" M. Pipe to 5/16" Pushlock
14 6010452 1 Fuel Line Hose, 5/6" ID x 10"
15 2501785 1 Filter, Diesel Fuel
16 6010456 1 Fuel Line Hose, 5/6" ID x 3"
17 2705005 1 Electric Fuel Pump
18 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
19 2900024 2 Lock Washer, 1/4" Split
20 2900009 2 Flat Washer, 1/4" SAE
21 6010457 1 Fuel Line Hose, 5/6" ID x 18-1/2"
22 2900005 2 Cap Screw, Hex Hd., 3/8-16 x 1"
23 2900006 2 Lock Washer, 3/8" Split
12
