Diamond Products CC4144D (3 Speed) - Manual (Page 19)

15
1
12
4
13
2
5
5
3 4 14
10 8 9
11
11
9
7
10
13
4
12
6
16
ITEM PART NO. QTY. DESCRIPTION
1 6045417 1 Frame Base Weldment
2 6043524 1 Blade Guard Mount
3 2900014 4 Flat Washer, 3/8" SAE
4 2900006 6 Lock Washer, 3/8" Split
5 2900428 4 Cap Screw, Flat Hd., 3/8-16 x 1-1/2"
6 2900235 2 Cap Screw, Flat Hd., 3/8-16 x 1"
7 6045204 1 Pointer Extension With Stop
8 6047976 1 Pointer Extension
9 2900058 2 Flat Washer, 1/2" SAE
10 2900139 2 Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
11 2900026 2 Lock Nut, 1/2-13 Nylon
12 6045221 2 Rear Pointer Weldment
13 2900028 2 Cap Screw, Hex Hd., 3/8-16 x 2-3/4"
14 2900018 4 Lock Nut, 3/8-16 Nylon
15 6045435 1 Shaft Guard Assembly
16 2900500 1 Thumb Screw, 3/8-16 x 1"

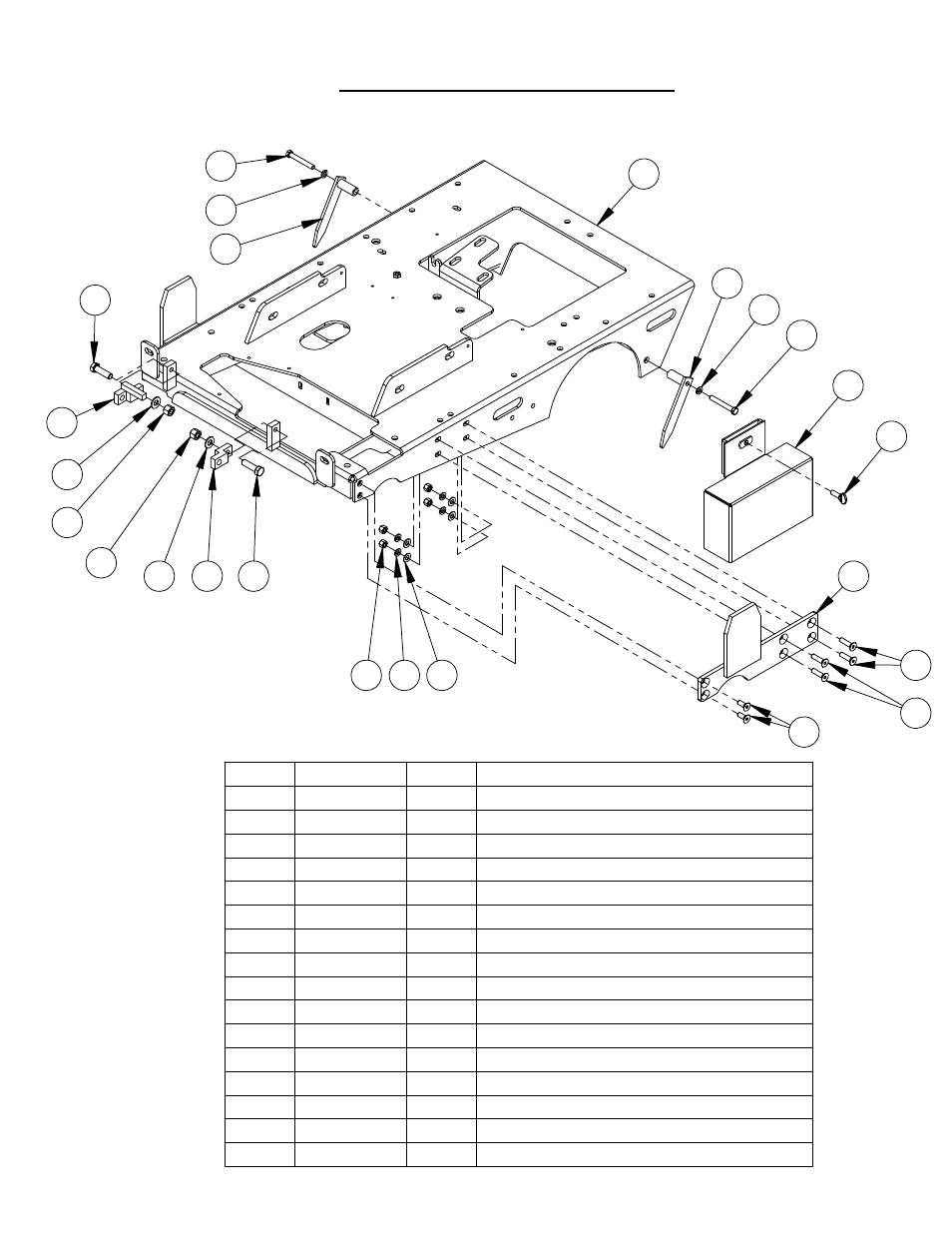

Frame Base Assembly #6045434
19
