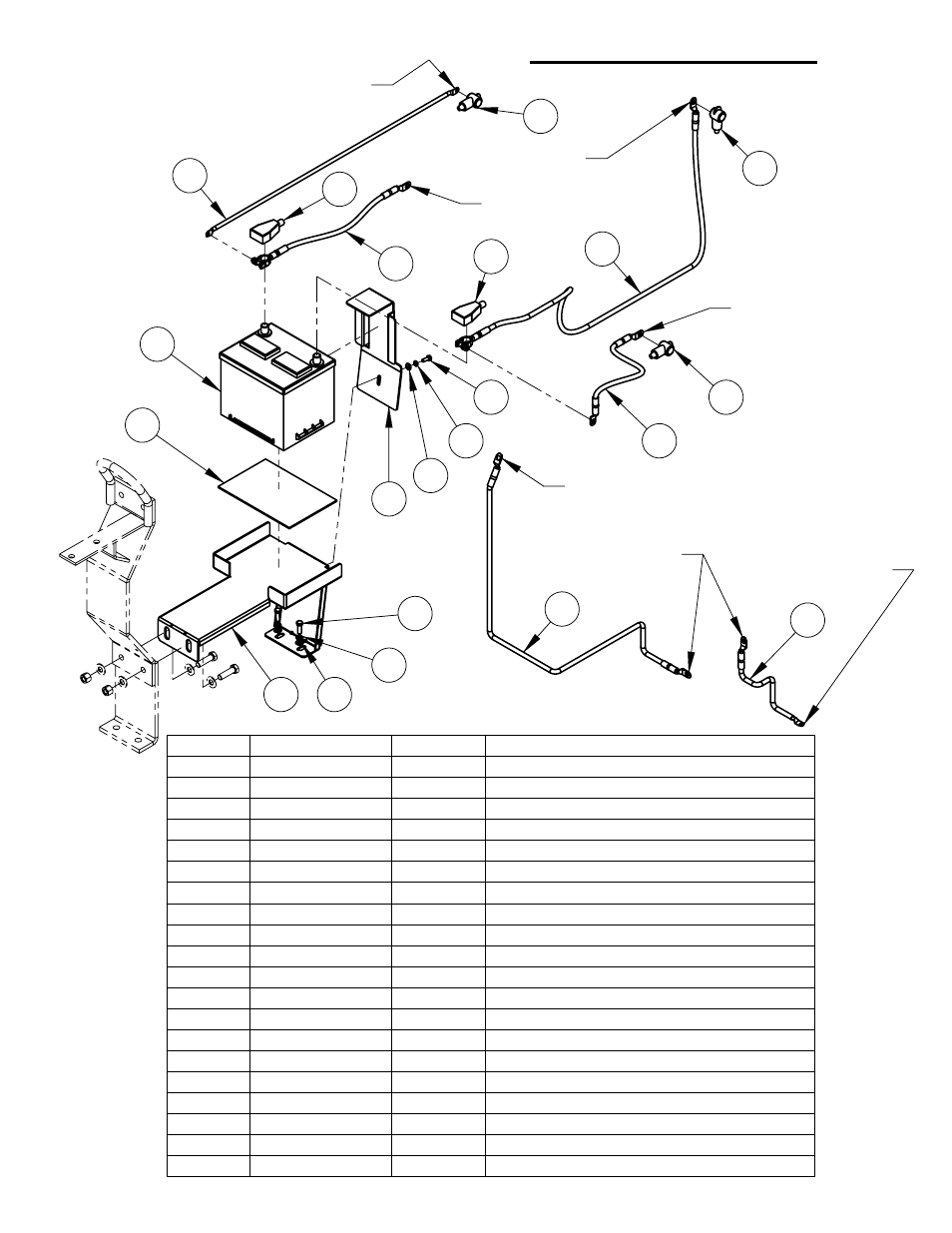

Battery Assembly #6045039
1
2
3
4
5
6
7
8
9
10
12
14
14
11
13
18
15
17
16
20
To Engine Mount
To Engine Mount
To Starter Motor
To Hydraulic Pump
To Hydraulic Pump
To Control Panel
Mounting Tab
To Right Side Guard
19
ITEM
PART NO.
QTY.
DESCRIPTION
1
6045099
1
Battery Mounting Tray
2
2900022
2
Flat Washer, 5/16" SAE
3
2900031
2
Lock Washer, 5/16" Split
4
2900138
2
Cap Screw, Hex Hd., 5/16-18 x 1"
5
6010442
1
Battery Pad
6
2800561
1
Battery, 12 Volt Group Size 26
7
6045100
1
Battery Hold Down Bracket
8
2900009
1
Flat Washer, 1/4" SAE
9
2900024
1
Lock Washer, 1/4" Split
10
2900144
1
Cap Screw, Hex Hd., 1/4-20 x 3/4"
11
2800073
1
Battery Cable, Positive (Red)
12
2800095
1
Battery Cable, 14" Positive (Red)
13
2800256
1
Battery Boot, Large (Red)
14
2800197
2
Battery Boot, Small (Red)
15
2800072
1
Battery Cable, Negative (Black)
16
6048092
1
Battery Cable Assy., Black
17
2800257
1
Battery Boot, Large (Black)
18
2800198
1
Battery Boot, Small (Black)
19
2800853
1
Ground Cable, 4ga SAE J1127 x 18"
20
2800854
1
Ground Cable, 4ga SAE J1127 x 42"
