Starter box, dc travel, Starter box, dc travel option – Diamond Products CC3700E User Manual

Page 79

background image

10

2

2

4

7

8

9

6

5

1

3

11

ITEM

PART NO.

QTY.

DESCRIPTION

1

2800215

1

Starter Box Unit

2

2802012

2

Battery Feed Stud

3

2800570

2

Battery Cable Assy., Red

4

2703210

1

Solenoid Start Switch

5

2701392

1

Contact Block (N.O.)

6

2800200

1

Contact Block (N.C.)

7

2802963

1

Selector Switch, 2 Position

8

3402113

1

N.O. Contact Block

9

3402114

1

N.C. Contact Black

10

2801801

1

Sounder Alarm

11

2801711

1

Relay, DPDT 12V DC

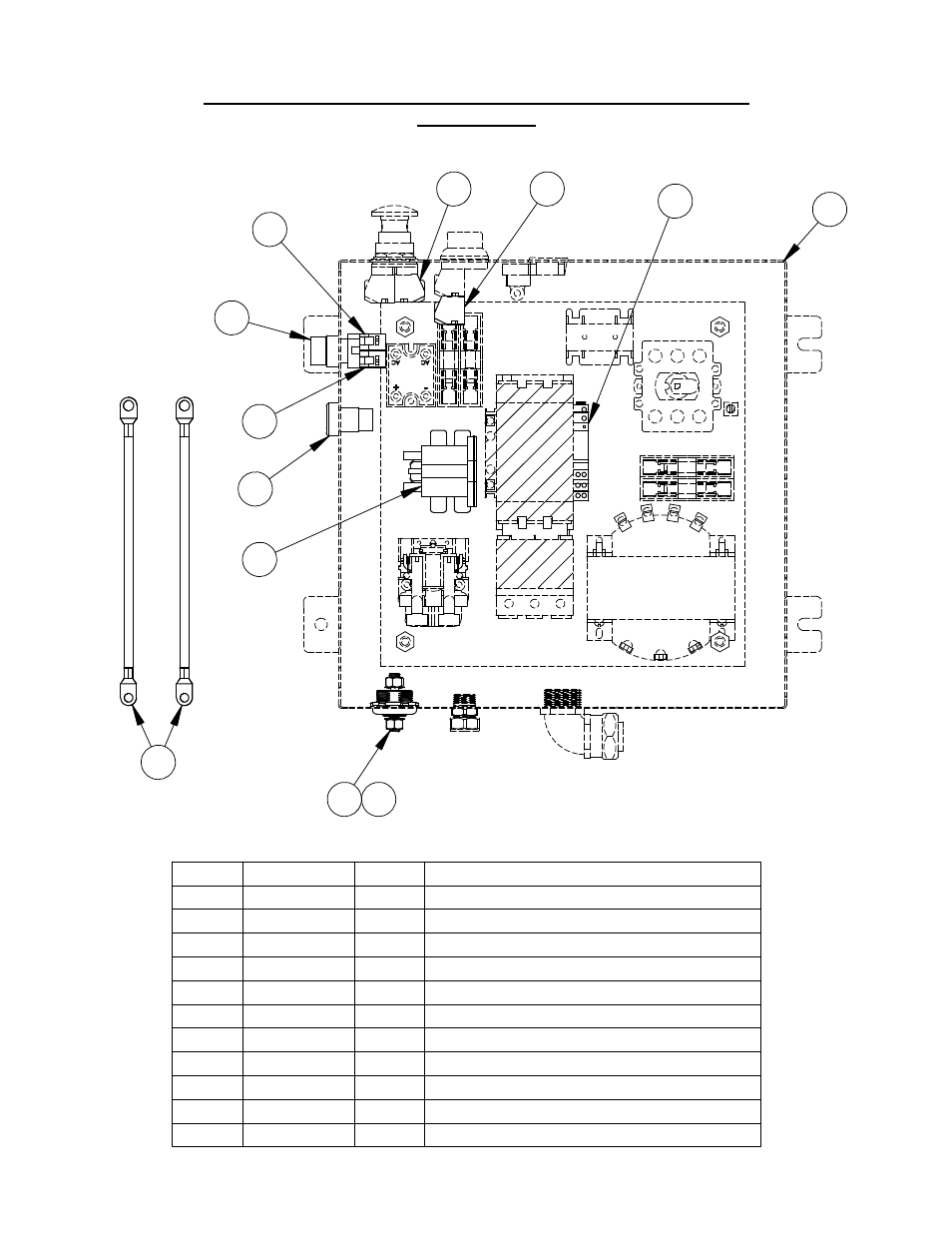

Starter Box Assembly 230/460V for DC Travel Option

# 6011590A
