Detroit Radiant Products Company DET3 Series - Manual (Page 18)

18
DET3 Series 5.0 Parts • Heater Components and Parts List
5.0 Parts
Chart 5.1 • Parts List

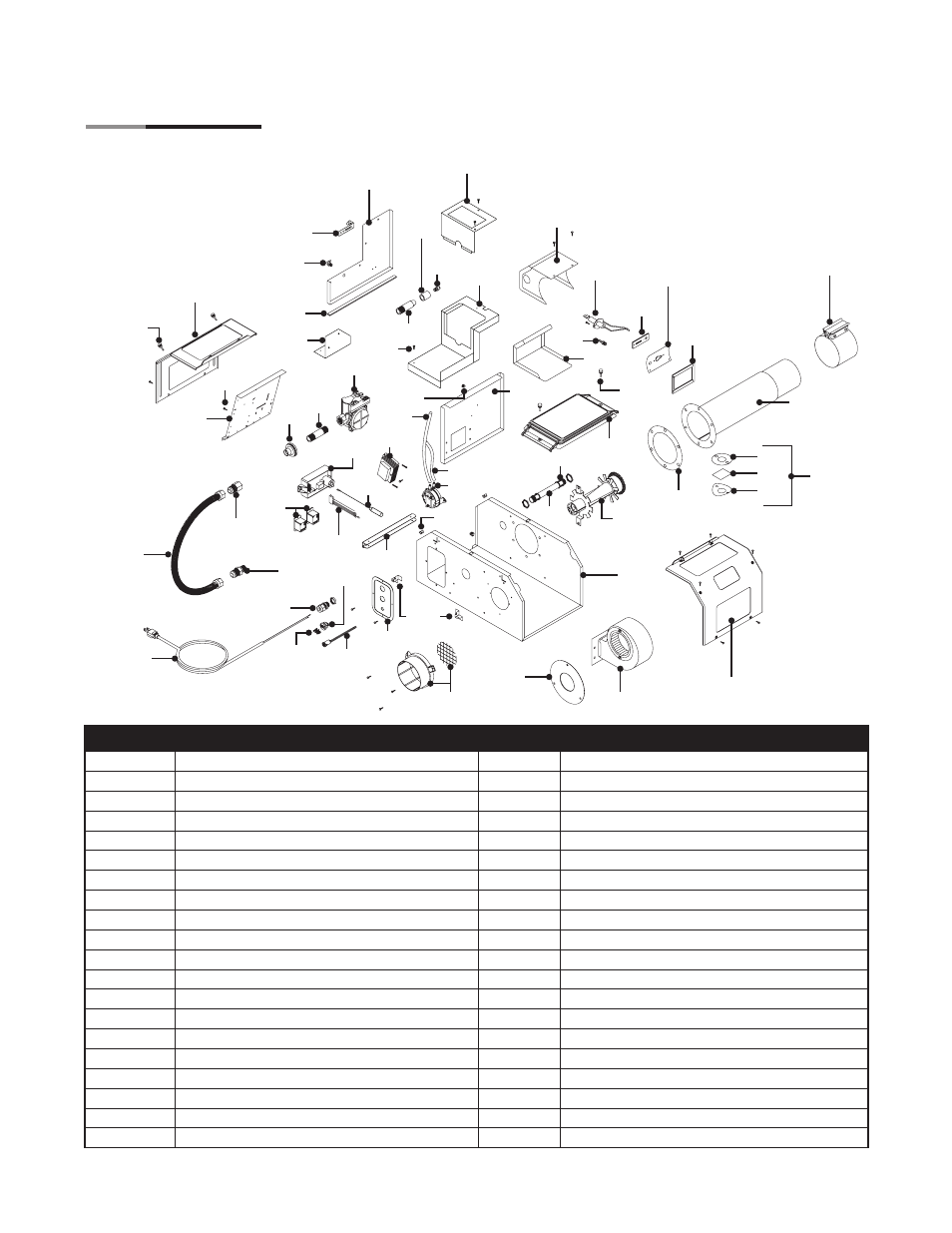

Figure 5.1 • Burner Assembly Components
21B
15
14
16
17
583
221
3055
3012
3011
204
3097A
3098
3008A
3002A
3099 76
212
3140, 3141
3072, 201B
3005A
5
1018
826
3001
3004
55A, 3215
3003A
3051
1325
25
3052
550
828
68B
3010
219
83
3580
3033B
3096A
333
321
217
3093
70A 3060
245
3094
85
3094
84
31D
70
3044
331
832
264D/F,1264A
332
331
9
10A
3014
3216
Part # Description Part # Description
TP-5 Flange Gasket TP-70A 1 in. Control Box Gasket (6 inches)
TP-9 Conduit Coupling TP-76 Rubber Grommet
TP-10A Conduit 4” x 3/4” TP-82 Reflector Center Support
TP-14 Sight Glass Gasket TP-83 Stainless Steel Flexible Gas Connector
TP-15 Sight Glass TP-84 1/2 in. Female/Male Flare Fitting
TP-16 Sight Glass Washer TP-85 1/2 in. Male/Male Flare Fitting
TP-17 Sight Glass Kit TP-105 Reflector End Cap
TP-19B 4 in. Wire Hanger with Tension Spring TP-106 Reflector End Cap Clips (8 pcs.)
TP-20C 10 ft. Aluminum Reflector TP-113 Reflector Tension Spring
TP-20D* 10 ft. Stainless Steel Reflector TP-201B V.3 Mid-High Burner (Color Code - TAN)
TP-21B 4 in. Tube Clamp TP-204 Gas Orifice - Consult Factory
TP-25 1/4 in. Female Spade Terminal (Qty. 3) TP-212 1/2” x 3” Pipe Nipple
TP-26A 10 ft. Aluminized Combustion Tube TP-217 Brass Pressure Switch Barb Fitting
TP-26B 10 ft. Titanium Primary Combustion Tube TP-219 Differential Vinyl Sensing Tube
TP-26C 10 ft. Uncoated Hot Rolled Radiant Tube TP-220 4 in. Dia. Stainless Steel Tube Clamp
TP-31D Mounting Bracket (Qty. 2) TP-221 Spark Igniter Mounting Bracket Gasket
TP-55A 1/20 hp Inducer Assembly (50-150 MBH) TP-245 3/16” X 1/8” Plastic Gas Valve 90° Vent
TP-65I 36 in. Interlocking Turbulator Baffle Section TP-264D Differential Pressure Switch, 60 to 75 MBH
TP-68B Large Strain Relief Bushing TP-264F Differential Pressure Switch, 150 to 200 MBH
TP-70 1/2 in. Control Box Gasket (10.3 inches) TP-321 Ignition Plate Gasket
* Optional upgrade or add-on item.
