Injection
53

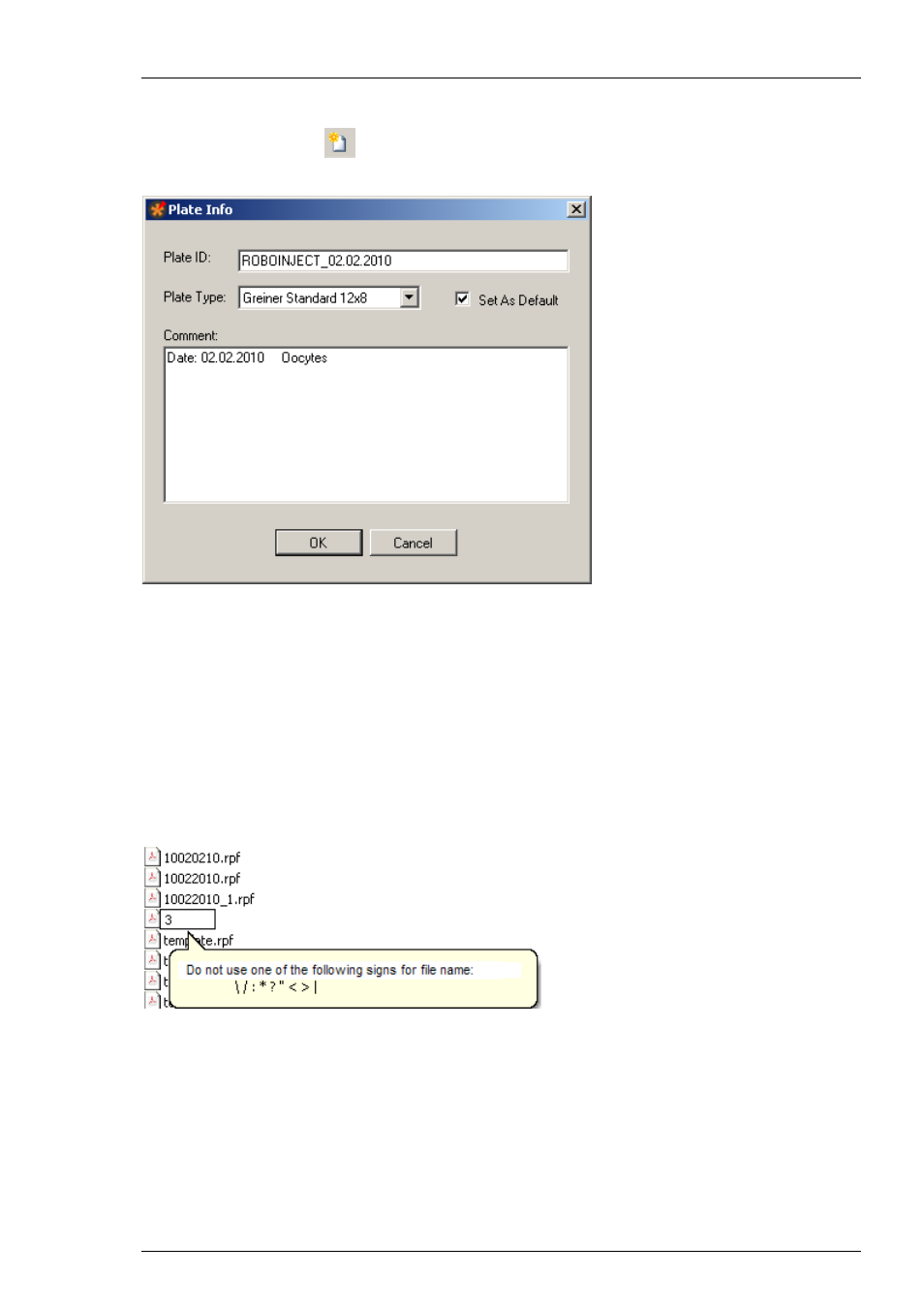

Creating a new file
1. Click "New File" icon either on the toolbar or on the "File" menu.
The "Plate Info" dialog box opens.
2. Type in the "Plate ID", select the "Plate Type", and all information ("Comment")
you want to associate with this well plate, for example the oocyte batch, name of
the operator, and so on.
3. Click "OK" when you are finished. The "Save As" dialog box is displayed.
The plate ID is also the suggested file name.
4. When opening the directory you can choose another file and / or rename the file, if necessary.
Right-click on the file name, and choose “Rename”. All characters are allowed in the file name,
except the following: slash mark (/), backslash (\), colon (:), asterisk (*), question mark (?),
quotation mark (“), less than (<), greater than (>), and vertical bar ( | ).
If you try to use one of these characters the following error message appears:
