Analog Output Signals
77
11.6 Capacitive Behavior of Stimulation Electrodes
Regarding the generally used stimulus pulses, stimulating electrodes behave as plate capacitors.
They need some time to discharge themselves after stimulation. As a result, artifacts interfere with
the recording, and electrodes deteriorate over time due to electrolysis. This effect takes place
especially in current mode because the current cannot flow back to the stimulus generator due to
the high output resistance in current mode and thus is kept in the electrode. A current source can
constantly produce small currents, even though the current is set to zero. This might damage the
connected electrodes over time. To avoid this problem, the STG3008-FA is equipped with switches
that automatically disconnect the current outputs from the current source 1s after each
programmed current stimulus. For the next stimulus, the current source is automatically
reconnected.
To reduce the effect described above in current mode, you should use biphasic pulses for
stimulation. The stimulus signal should be immediately followed by an inverse signal of the same
area (product of current and time), which helps to discharge the electrode. The easiest way is to
use the same signal amplitude with an opposite polarity.
Multi Channel Systems recommends using voltage driven stimulation. In voltage mode, it is not
necessary to use biphasic stimulation for discharging the electrodes, because the electrode should
be discharged at a voltage of 0, that is, it would be sufficient to apply the negative phase only.
Warning: When using MEA electrodes of TiN material, stimulation with higher amplitudes is
possible if you apply the negative pulse first . Also, regard the safe charge-injection limit
as described in the MEA manual. Otherwise, electrodes can be damaged during stimulation.

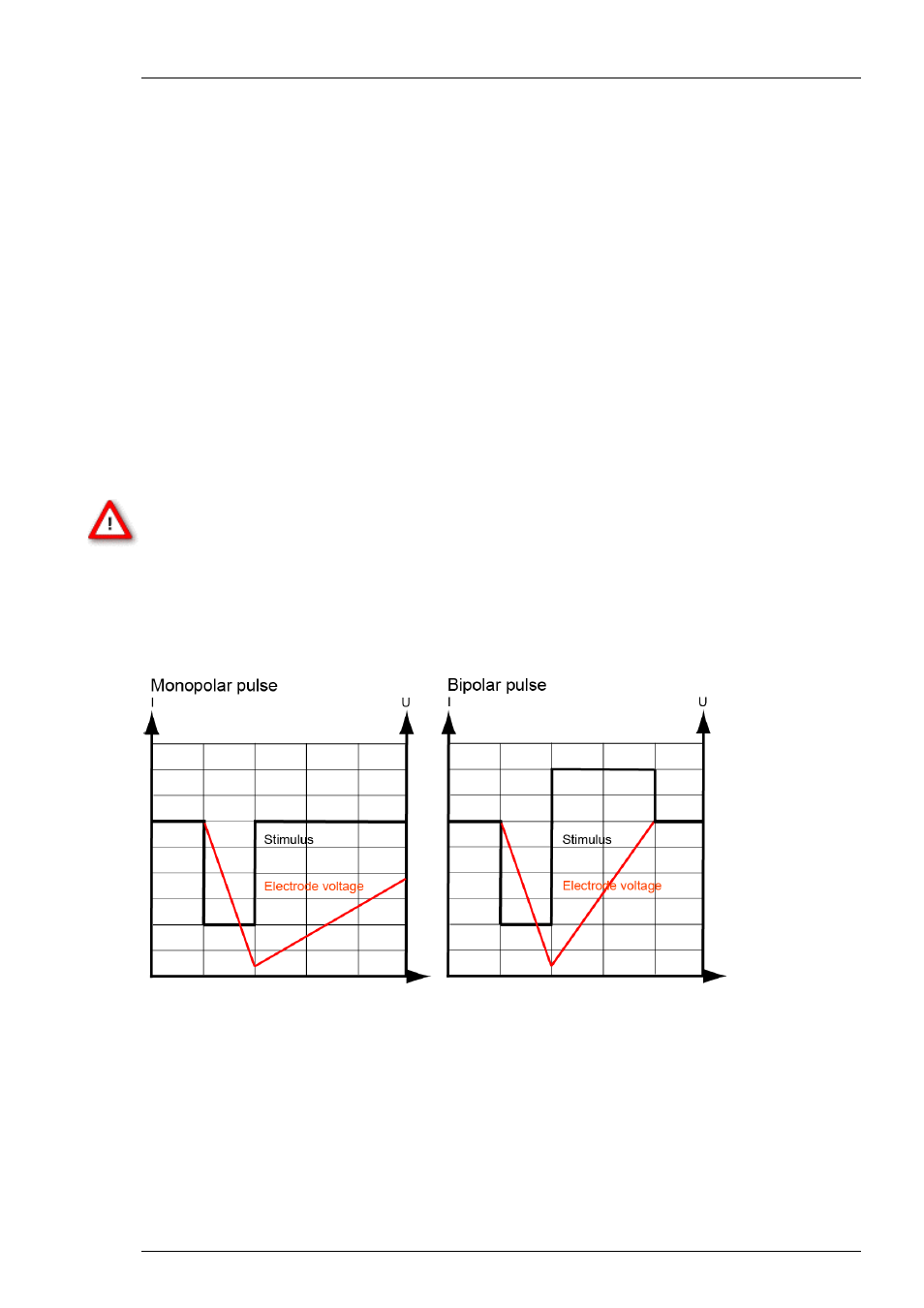

The following illustration shows the effect of a biphasic current pulse on the discharge of the
stimulation electrode. As you can see, the first monophasic pulse is followed immediately by
a pulse of the opposite polarity and the same product of current and time.
Effect of a bipolar current pulse on the electrode voltage
