Appendix
55
7.4
Pin Layout

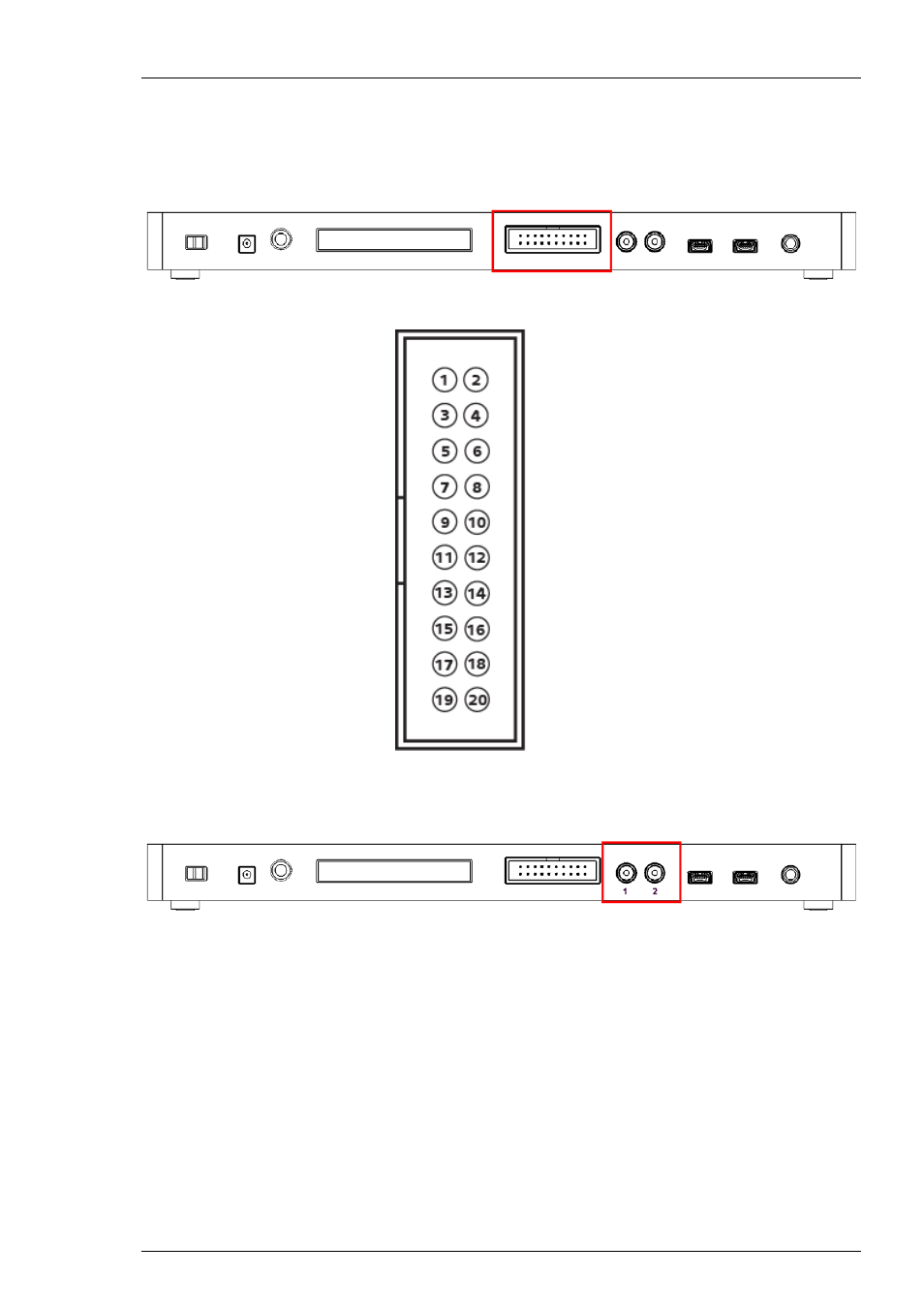

MEA2100 Interface Board: 20-Pin Connector (Analog IN)
20-Pin Connector for Analog IN and DSP
TMS Pin 1 Pin 2 TRST
TDI Pin 3 Pin 4 GND
3V3 Pin 5 Pin 6 KEY
TDO Pin 7 Pin 8 GND
RTCK Pin 9 Pin 10 GND
TCK Pin 11 Pin 12 GND
BMU 0 Pin 13 Pin 14 EMU 1
Analog IN
channel 3 Pin 15 Pin 16 Analog IN
channel 4
Analog IN
channel 5 Pin 17 Pin 18 Analog IN
channel 6
Analog IN
channel 7 Pin 19 Pin 20 Analog IN
channel 8
MEA2100 Interface Board: Lemo Connectors for Analog IN
Analog IN 1 and 2, available via Lemo Connectors
Analog IN 1 channel 1
Analog IN 2 channel 2
The gain factor for amplification of all analog channels is 2.
