57
6 LTP-Analyzer
6.1
Replaying an Experiment in Raw Data Mode
6.1.1 Data Display Raw Data Mode
The LTP-Analyzer is used to replay and analyze the data files generated by LTP-Director. Similar
in design to the LTP-Director, LTP-Analyzer has two modes: Raw data mode is for displaying raw
data, and analyzer mode is for analyzing data from selected electrodes.

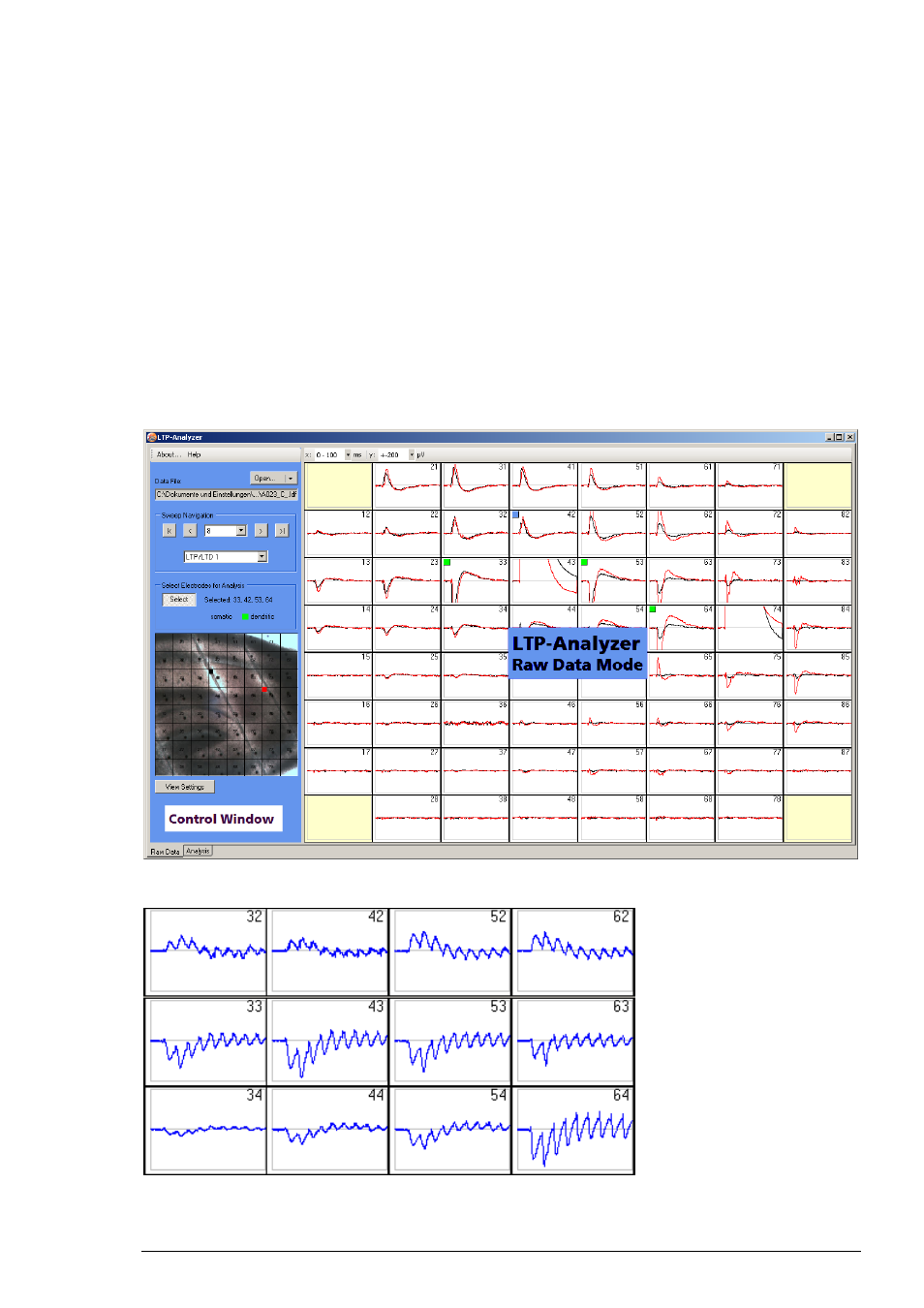

The main window of the "Raw Data Mode" is designed similar to "Test Mode" in LTP-Director:
On the left side the blue control window, and on the right side the raw data display with overlay
traces in red and black, encoding the signals generated by stimulation pathway S1 (red) or S2
(black). Blue raw data traces are generated during the LTP / LTD induction phases. You can toggle
between the two windows using the tabs at the bottom left side.
Example of blue data traces during LTP / LTD induction.
