LTP-Director
51
"LFS" (low frequency stimulation): Low frequency stimulation with 1 Hz stimuli for a selected
duration.
"Post LTP / LTD Time" in a range of 0 to 120 seconds the user can select a time span for recovery
of the hippocampus slice after high frequency stimulation before the next phase starts.

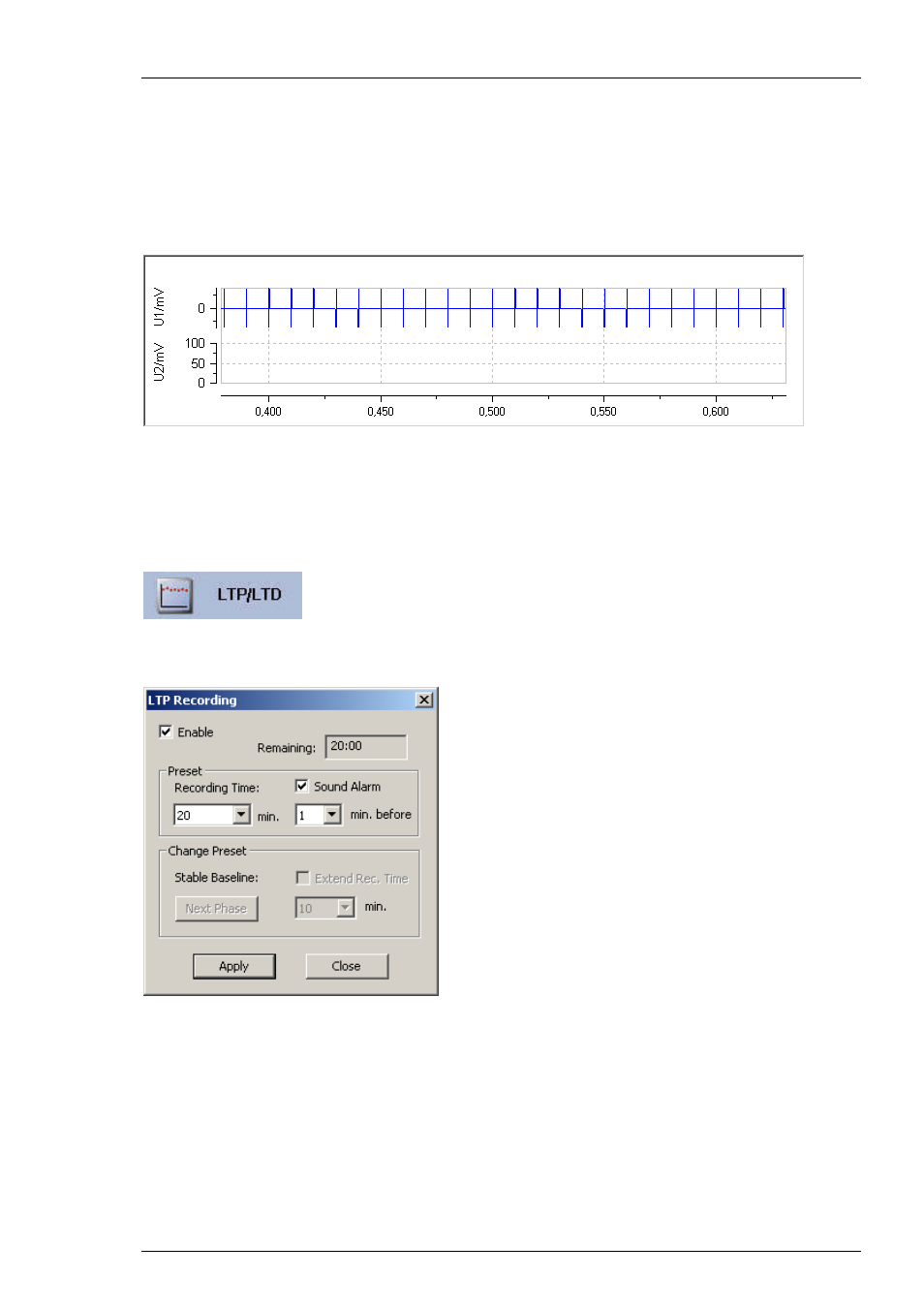

A graphical display of the actually selected induction protocol for both pathways is depicted
in the dialog window. Any changes made to the induction paradigm will be shown only after
having been confirmed with the "Apply" button.
The settings in "Pulse Shape" are fix in this dialog. You are able to change them in
"Preparation" menu.
LTP / LTD
Click icon LTP / LTD. This "LTP Recording" dialog is identical to the "Baseline" dialog,
please see above.
