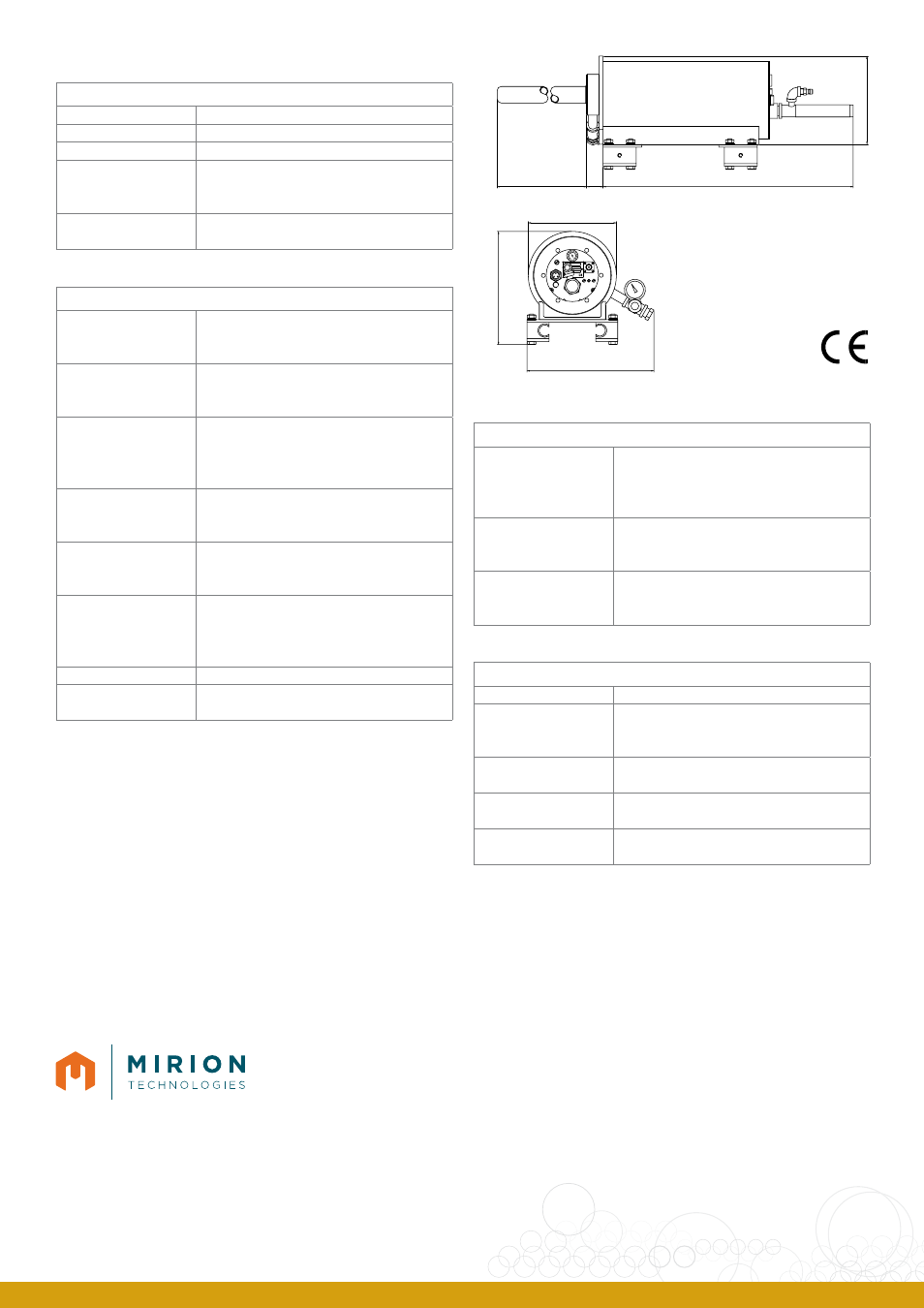

SpEcIFIcATIoNS AND pErForMANcE
cAMErA
power requirements
85-265 VAC, 47-440 Hz
camera Sensor
1
/
2
” solid state image sensor
Sensor resolution
>500 lines
Video
1.0 V P-P, 75 ohm, CCTV signal
/VTE: EIA RS170 525 lines or
/VTC: CCIR 625 lines
control
/AIR: Remote iris adjustment (with M721
Remote Auto Iris Controller)
LENS
construction
Air or water cooled 304 stainless steel outer
shroud. Sapphire window for maximum
environmental protection.
Lens options
/L: Straight view, /RAL: right angle with 90°
offset optics, /OAL: oblique angle with 45°
offset optics, /WCL: water cooled
Lengths
STD /L30: L=704mm (27.7”) or
/OAL30: L=678mm (26.7”)
Other lenses available. Please contact your
sales representative.
Field of View
Wide: 75°H x 56°V
Medium: 55°H x 42°V
Narrow: 35°H x 26°V
Diameter
/L: 38mm (1.5”)
/RAL & /OAL: 51mm (2.0”)
/WCL: 57mm (2.25”)
cooling requrements
Instrument quality air, 12-19 dm
3
/sec (25-40
SCFM) @ 34 - 103 kPa (5-15 psig required
for straight view lens (to ISO 8573-1, Class
1• 7• 2)
Environment
1621°C (2950°F) with proper cooling
Thermocouple
/TJ: Type J thermocouple option
/TK: Type K thermocouple option
ENcLoSUrE
construction
/CEI: Corrosion-resistant, insulated, air-
cooled, NEMA 4;
/CEW: Corrosion-resistant, water-cooled,
NEMA 4
cooling Type
/CCV: Vortex cooling 13 dm
3
/sec @ 690 kPa
(25 SCFM @ 100 PSI); Instrument quality air
required.
Ambient Environment
Max. 60°C (140°F) with negligible radiant
heat load. Water cooled option available to
handle high radiant heat environment
MEcHANIcAL
Video output Jack
Female PL-259 “UHF” type
power Input Jack
Removable waterproof miniplug (JOY type
TP, female 3-conductor; mating power cord
provided)
Enclosure cooling
Input
1
/
4
” brass quick-disconnect nipple; mating
coupler (Snaptite BVHC4-4F) provided
Lens cooling Input
1
/
2
” brass quick-disconnect nipple; mating
coupler (Snaptite BVHC8-8F) provided
Weight
30 pounds (14kg) for air-cooled configura-
tion (lens and camera)
