SpEcIFIcATIonS AnD pErForMAncE

pyroMETEr SEnSor

Temperature ranges

/TR2: 1558°–3301°F (848°–1816°C)
/TR1: 1225°–2291°F (663°–1255°C)

Temperature Accuracy

±1.0% Full Scale

Measurement Technique

Dual wavelength ratio pyrometry

Spectral regions

Narrow bands centered at 0.8 and
1.6 microns

Spot Size

Approximately 1/24 of horizontal image width

Spatial Scan resolution

47 horizontal x 35 vertical width of the image

Scan rate

Scan speed varies with size and number of
TMZ’s or via operator adjustment

LEnS

construction

Air or water-cooled 304 stainless steel
outer shroud; sapphire window for max.
environmental protection

Type

Straight view lens: /L30M

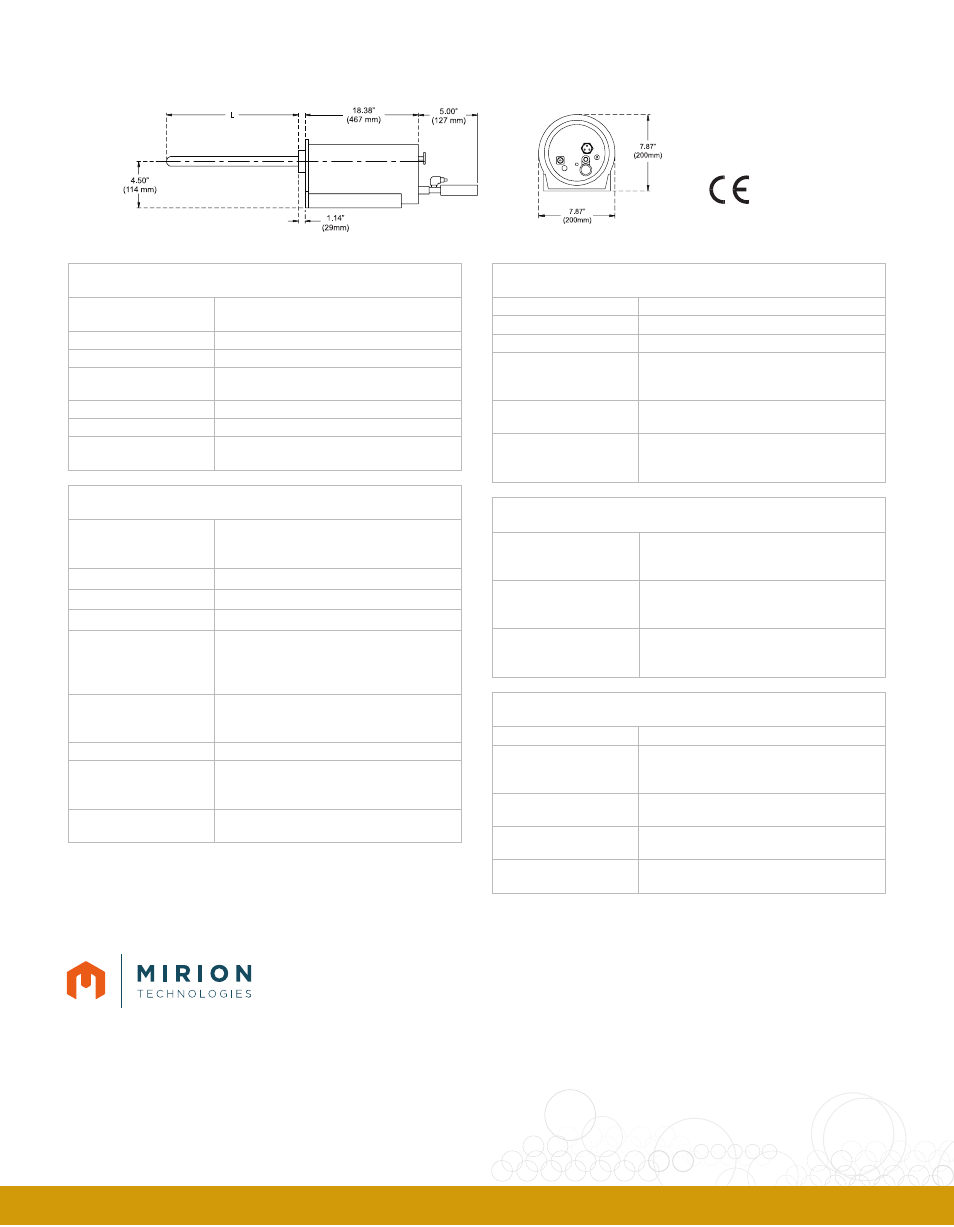

Length (L)

703mm (27.7”)

Type

45° offset lens: /OAL30W

Length (L)

694mm (27.3”)
For details on our full range of
Spyrometer lenses, please contact
your sales representative.

Field of View

Wide: 75° H x 58° V
Medium: 50° H x 38° V
Narrow: 35° H x 26° V

Diameter

/L: 1.5” (38mm); /OAL: 2.0” (51mm)

cooling requirements

Instrument quality air*, 25-40 SCFM
(12–19 dm3/sec) @ 5-15 psig (34-103 kPa),
required for straight lens

Thermocouple

/TJ: Type J thermocouple option;
/TK: Type K thermocouple option

*To ISO 8573-1, Class 1•7•2

cAMErA

power

115-230 VAC, 50/60 Hz

camera Detector

Solid state color image sensor

System resolution

300 lines minimum throughout the image

Video

1.0V p-p, 75ohm, CCTV signal
/VTN: NTSC or /VTP: PAL video timing
selected at time of order

control

Iris adjustment on rear of camera; remote iris
adjustment from the processor

Application Filter

Filters are provided to match your process
and maximize performance. Contact your
Sales Representative

EncLoSUrE

construction

/CEI: Corrosion-resistant, insulated, air-
cooled, NEMA 4; /CEW: Corrosion-resistant,
water-cooled, NEMA 4

cooling Type

Vortex cabinet cooler, 25 SCFM @ 100 psi
(13 dm3/sec @ 690 kPa); instrument-quality
air required or water cooled option available

Ambient Environment

Max. 140°F (60°C) with negligible radiant heat
load. Water cooled option available to handle
high radiant heat environment

MEchAnIcAL

Video output Jack

Female PL-259 “UHF” type

power Input Jack

Removable waterproof miniplug (JOY type
TP, female 3-conductor; mating power
cord provided)

Enclosure cooling Input

1/4” brass quick-disconnect nipple; mating
coupler (Snaptite BVHC4-4F) provided

Lens cooling Input

1/2” brass quick-disconnect nipple; mating
coupler (Snaptite BVHC8-8F) provided

Weight

30 pounds (14kg) for standard air-cooled
configuration (lens and camera)

The above specifications may vary according to system configuration.
Mirion Technologies Incorporated reserves the right to amend or change the
information on this sheet without prior warning.
01/11
