IODINE CARTRIDGE
Accessories
PHYSICAL CHARACTERISTICS
●
Trapped elements: radioactive or non-radioactive
iodine, molecular or organic
●
Collection effi ciency: given for various relative
humidities and diverse gas rates
Relative
Humidity
Flow Rate Methyl
Iodine
Molecular
Iodine
40% 99.99% 99.80%
75% 98% 99.80%
90% 1.66 10 -3 m 3 /s
(100 l/min)
88% 99.80%
90% 2.5 10 -3 m 3 /s
(150 l/min)
78% 99.80%
PNEUMATIC CHARACTERISTICS
●
Advisable fl ow rate: 8.33 10 -4 m 3 /s (50 l/min)
●
Maximum fl ow rate: 1.66 10 -3 m 3 /s (100 l/min)
●
Pressure drop for 8.33 10 -4 m 3 /s fl ow rate: 20 hPa
ENVIRONMENTAL CHARACTERISTICS
●
Advisable maximum operating temperature:
+60°C (+140°F)
●
Non destructive maximum temperature:
+180°C (+356°F)
MECHANICAL CHARACTERISTICS
●
Height: 26.8 mm (1.05 in)
●
Diameter: 57.7 mm (2.27 in)
●
Filter media: charcoal (coconut shell) impregnated
with TEDA (triethylene di-amine)
●
Housing: high density rigid thermoplastic
●
Packaging: 50 pieces in waterproof sheath
thermowelded
www.mirion.com
147476EN-A

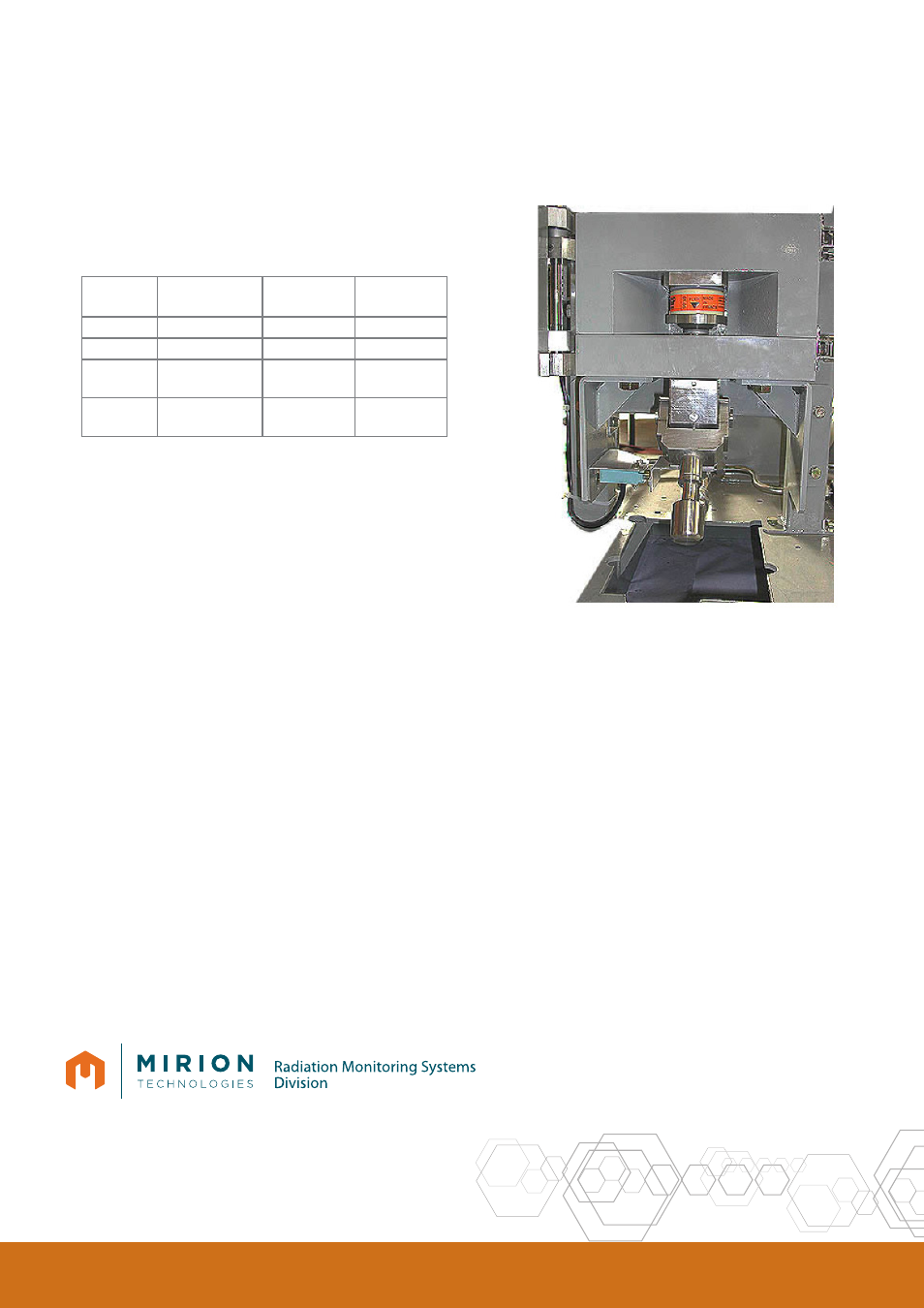

Iodine cartridge in IM 201L iodine monitor
