DAK 250
Neutron Flux Instrumentation
www.mirion.com
144966EN-C
DETECTORS AND PREAMPLIFIERS
●
Pulse detectors for DAK 250-i:
○
BF3- or He3-counter tubes
○
B10-proportional counters
○
Fission chambers in pulse mode
●
Pulse preamplifi er NV 320:
○
Input and output impedance matched to the
impedance of the cables
○
Remote pulse generator for testing
●
Ionisation chambers for DAK 250-g: compensated or
non-compensated
●
Current-to-frequency-converter NV 102H: 10 decades
of measuring range
●
Detector supply 0 ... 0.5/1/2/4 kV located in the
central electronic unit
DIGITAL SIGNAL PROCESSING
●
80C31/32 multi-processor system
●
Program memory: EPROM
●
Parameter memory: CMOS-RAM with integrated
Li-battery
●
Data interface: RS 232 and/or RS 485
●
Internal LC-display: 2 x 16 characters
OUTPUT SIGNALS
●
Linear and/or logarithmic count rate or neutron fl ux
●
Neutron fl ux change rate = 1 / reactor period to be
confi gured, e.g. -1.25 ... 0 ... 12.5 %/s corresponding
to -80 ... ∞ ... +8 s reactor period
●
Analog outputs: 0/4 ... 20mA/600 Ω, insulated
●
Binary outputs: insulated relay change overs,
60V/0.5A or 125V/1A
●
Optional: reactimeter on a single additional interface
board NK 21
OTHER CHARACTERISTICS
●
DC power supply: 18 ... 33 VDC, approx. 1.6A at 24 V
●
Optional: AC power supply: 230 VAC or 115 VAC
+10%/-15%, approx. 40 VA
●
Operating temperature: 0 ... 70°C (32 ... 158°F)
for the main electronics
●
Mechanical vibrations: < 5 g, 5 ... 100 Hz
●
19” modular system according to IEC 60297
●
Rack size (W×H×D): 483 mm × 133 mm × 280 mm
(19 in x 5.2 in x 11 in)
●
Plug-in boards: 100 mm × 160 mm (3.9 in x 6.3 in)
DAK 250

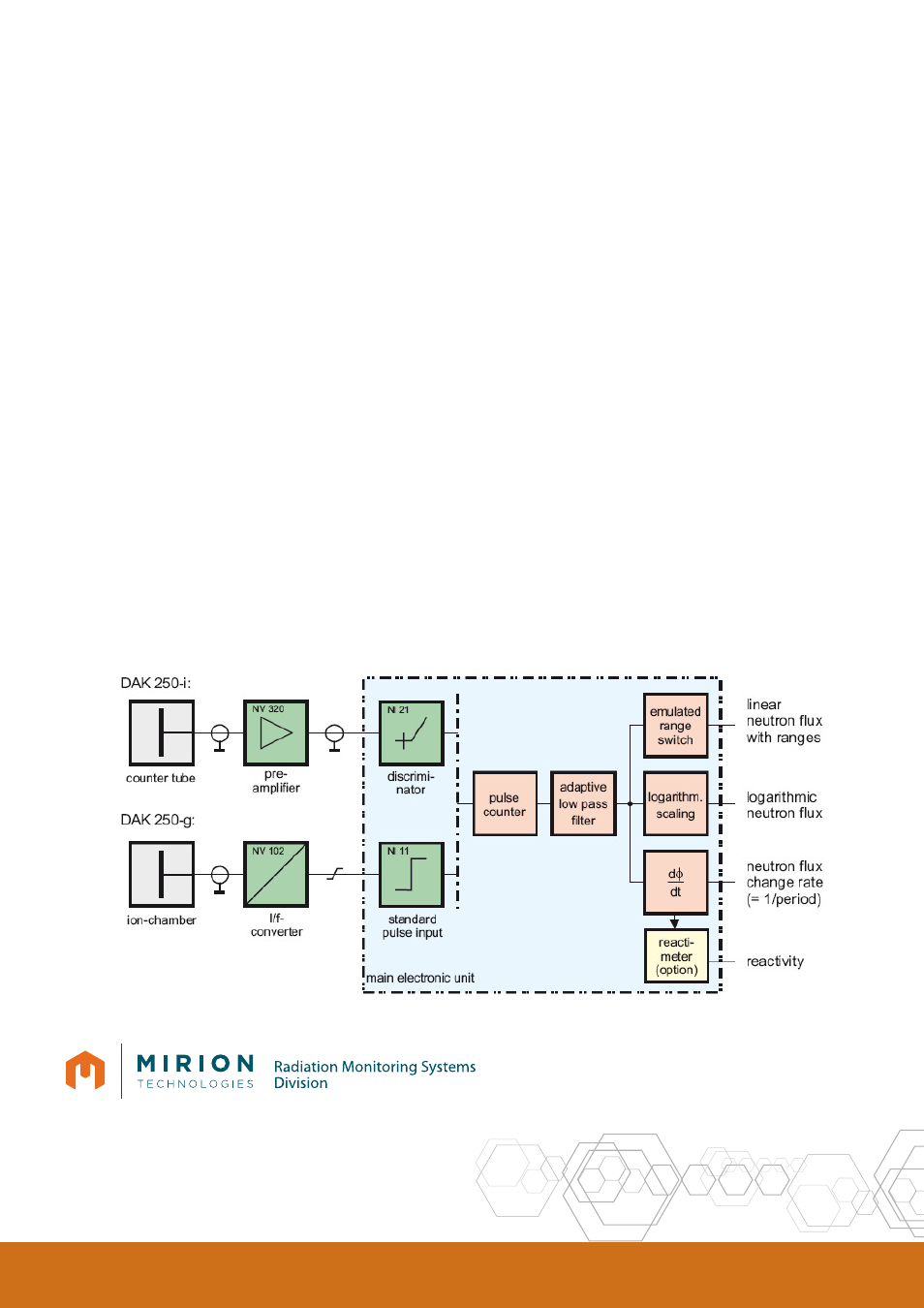

Schematic diagram
