Technical specifications:
checkpoint:Body™
Twostep™-exit II
BetaFibre™ detectors
type
window surface area
Body
Hands
Head
Feet
Small Items (optional)
RFD485
RFD485
RFD485
RFD485
RFD485
485 cm² each
GammaFibre™ detectors
Body
Feet/Hands
Small Items (optional)
type
sensitive volume
RFD13/67
(up to 6 detectors)
RFD6/18 (1 detector)
RFD4.8/3.8
(1 detector or more)
6675 cm
3
1800 cm
3
388 cm
3
Grids
3 transparencies available: steels grids T66 oder T81 (standard) or honey comb 5
Detection Limit (MDA)
parameters: sigma (1,65 + 1,65);
background 0,1 µSv/h; measuring time: 10 s
BetaFibre™ detector (in contact, per side)
T81 grid
T66 mesh
241
Am
25 Bq
35 Bq
14
C
255 Bq
315 Bq
60
Co
55 Bq
60 Bq
36
Cl
25 Bq
35 Bq
90
Sr/
90
Y
12 Bq
15 Bq
137
Cs
30 Bq
35 Bq
99
Tc
60 Bq
70 Bq
GammaFibre™ detector (optional)
(5 cm distance to detector door: 6 x RFD13/67)
60
Co
< 450 Bq
137
Cs
< 1500 Bq
source in middle of sum channel
elektronics
Industrial-PC, hard disc, touch screen, USB device,
speech processor, illumination (LED), Mini-UPS
software
real-time multi-tasking operating system QNX
(UNIX like, POSIX compliant), user software
with P
2
-accelerator, calibration tool
relay Outputs
5 user selectable
Mains
100 - 240 V
1.0 - 2.0 A
50 – 60 Hz

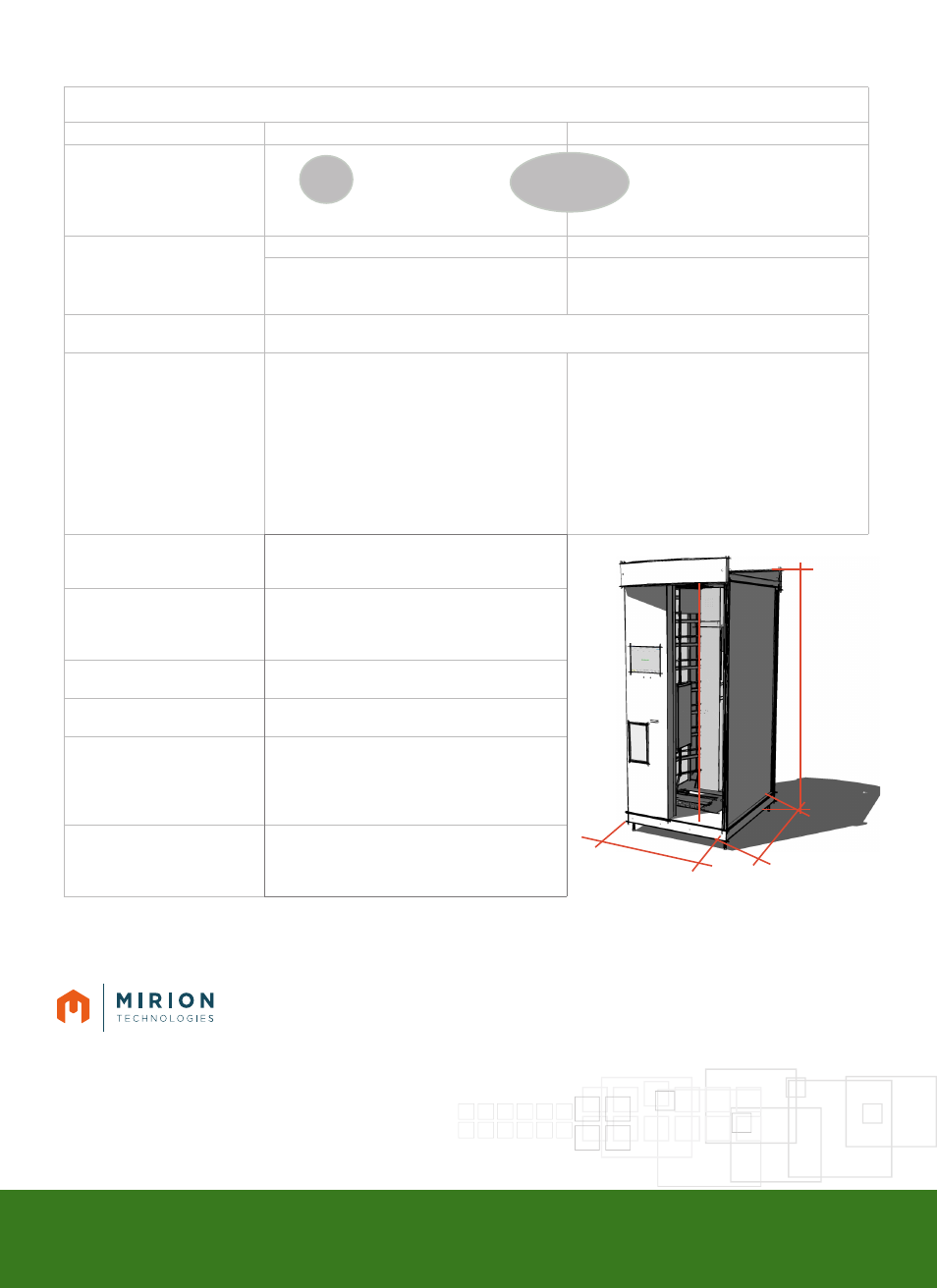

Dimensions
height
ca. 2410 mm - ca. 3100 mm
width
ca. 1000 mm
depth
ca. 1220 mm - 1335 mm
weight
ca. 350 - 750 kg
environmental conditions
temperature
0 °C - 45 °C
relative humidity
< 75 %, max. 95 %
in yearly average, no condensation
34 +
one type fits all
positions
7NUC_TSEII_Y018-005E_1_PDB
RADOS TwoStep™-Exit II
Whole Body Contamination Monitor
CheckPoint:Body™-family
width
1000
depth
min 1220
2100
height
min 2410
