IB-23C003

APPENDIX A - JUMPERS AND SWITCHES

APPENDIX A

JUMPERS AND SWITCHES

S-3002-134A

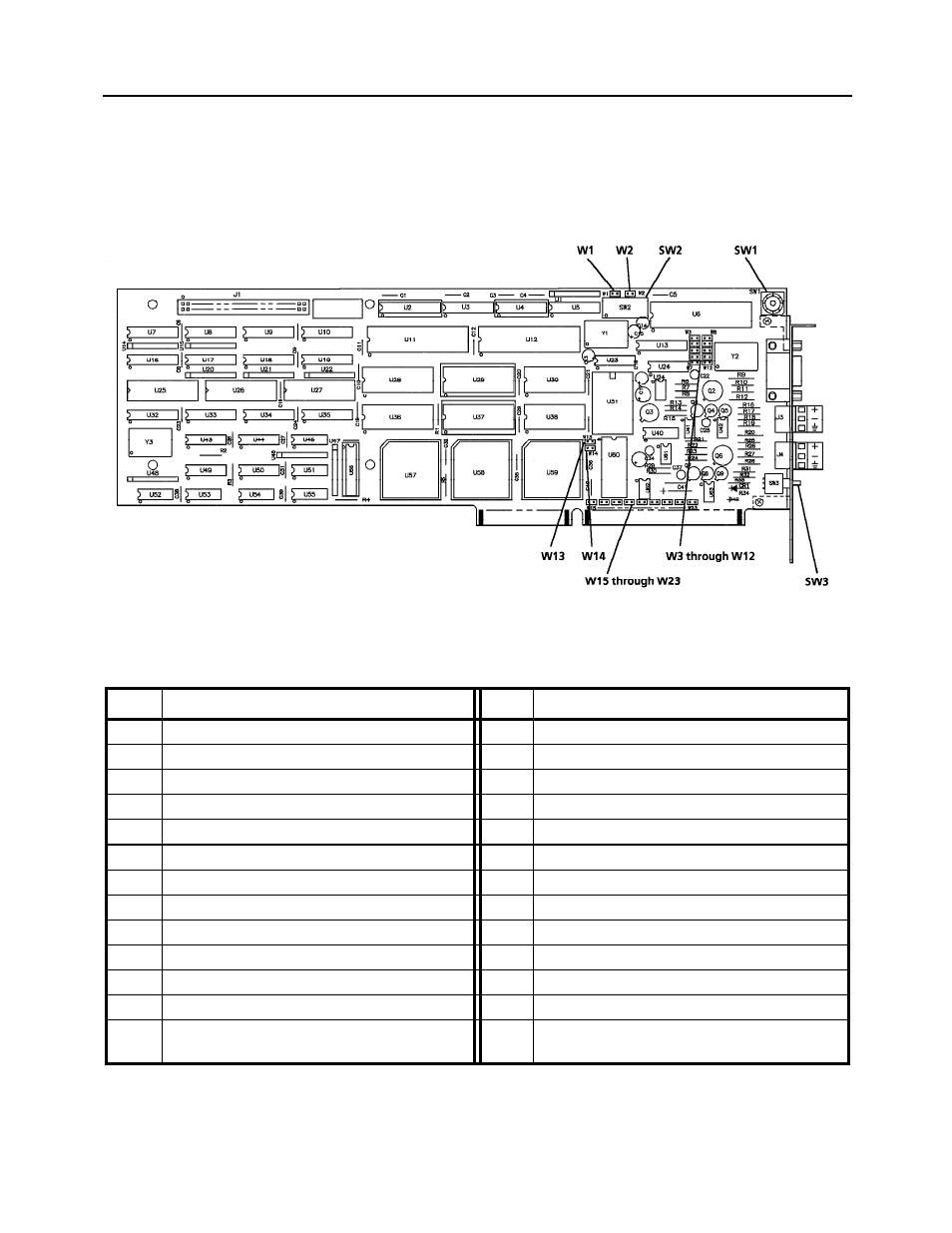

Figure A-1. Switch and Jumper Locations for 1731N Mini Link

Table A-1. Alphanumeric Listing of Jumpers and Switches for 1731N Mini Link

* Software and firmware support for these baud rates is currently unavailable.

Ref.

Function

Ref.

Function

SW1

Mini Link ICN Device Address

W11* Select 38400 Baud on External Serial Port

SW2

Base Address of Integral Serial Port

W12* Select 76800 Baud on External Serial Port

SW3

Mini Link Reset Switch

W13

Select ICN Baud Rate of 62500 bps

Enable CTS on External Serial Port

W14

Select ICN Baud Rate of 31250 bps

Enable CTS on PC/AT Serial Port

W15

Select IRQ3 for Integral Serial Port

W3*

Select 76800 Baud on Integral Serial Port

W16

Select IRQ4 for Integral Serial Port

W4*

Select 38400 Baud on Integral Serial Port

W17

Select IRQ5 for Integral Serial Port

Select 19200 Baud on Integral Serial Port

W18

Select IRQ6 for Integral Serial Port

Select 9600 Baud on Integral Serial Port

W19

Select IRQ7 for Integral Serial Port

RESERVED

W20

Select Interrupt Polarity Logic 1

RESERVED

W21

Select Interrupt Polarity Logic 0

Select 9600 Baud on External Serial Port

W22

Enable 5V Test Signal on 9-pin RS-232

W10

Select 19200 Baud on External Serial Port

W23

De-Select Isolation Feature on ICN / PC
Interface

A-1
