Figure 2-1. typical microlink networks – Micromod Micro-DCI: 53MC5000 MicroLink User Manual

Page 8

background image

Table 2-1. Attributes of Typical MicroLink Networks

MicroLink
Network

Max. No.
of Nodes

Network
A B

SUPV
Boards

Redundant
Cards

Comm Cards
in PCS*

Single

32

Y N

1

0

1

Single
Redundant

32

Y Y

1

1

2

Double

64

Y N

2

0

1

Double
Redundant

64

Y Y

2

2

2

*Number of Communication Option Cards in each 53MC5000 PCS in the MicroLink network.

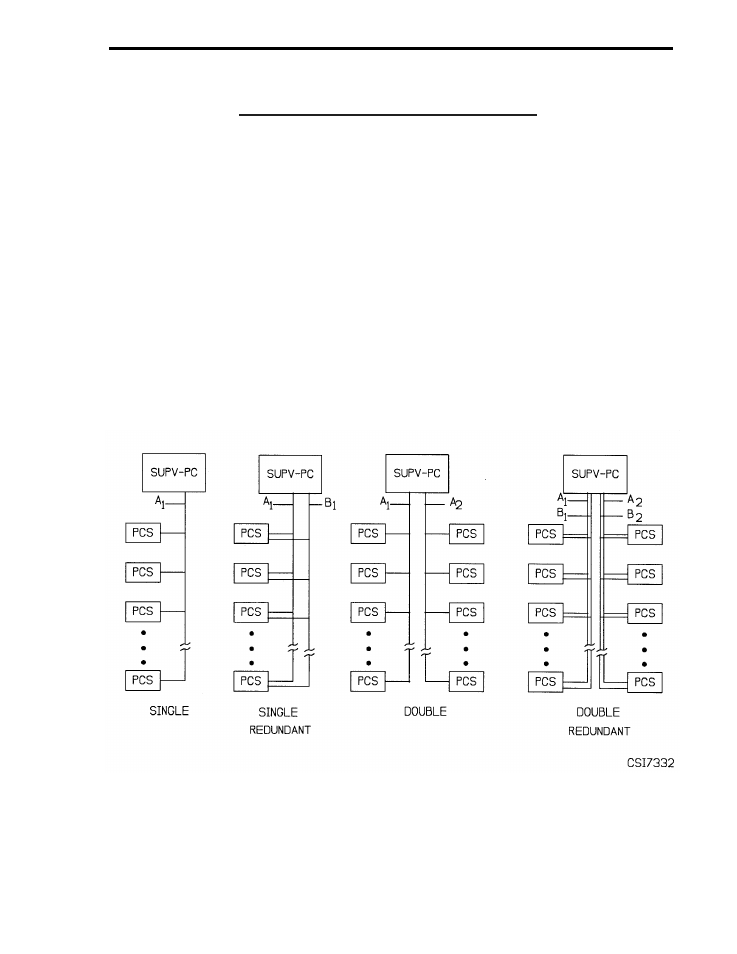

Figure 2-1. Typical MicroLink Networks

Section 2. MicroLink Overview

5
