220 Series Gear Flowmeters — Pressure Drop
S ERIES 220 P RESSURE D ROP :

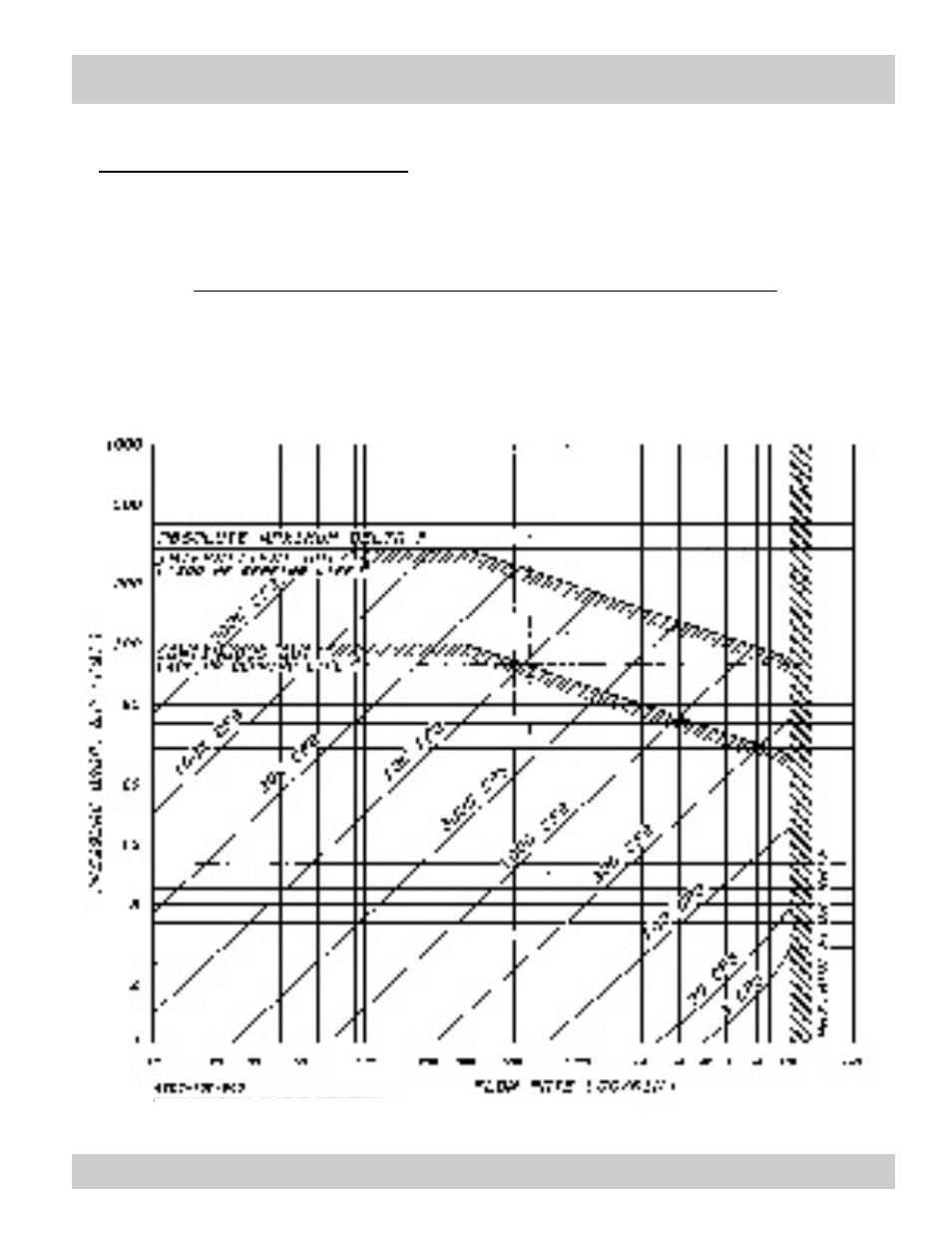

Delta P vs Flow Rate (at various viscosities)
(This Flowmeter is generally used for 100 CPS or greater viscosities.)
Typical Flowmeter Specifications
Displacement: 9.12 cc/rev
Pulses/CC with 284-XXX Transmitter: 10.97
Maximum Pressure: 1500 PSI standard
3000 PSI High Pressure
*
When used with Lubricating Hydrocarbons.
Discontinued
