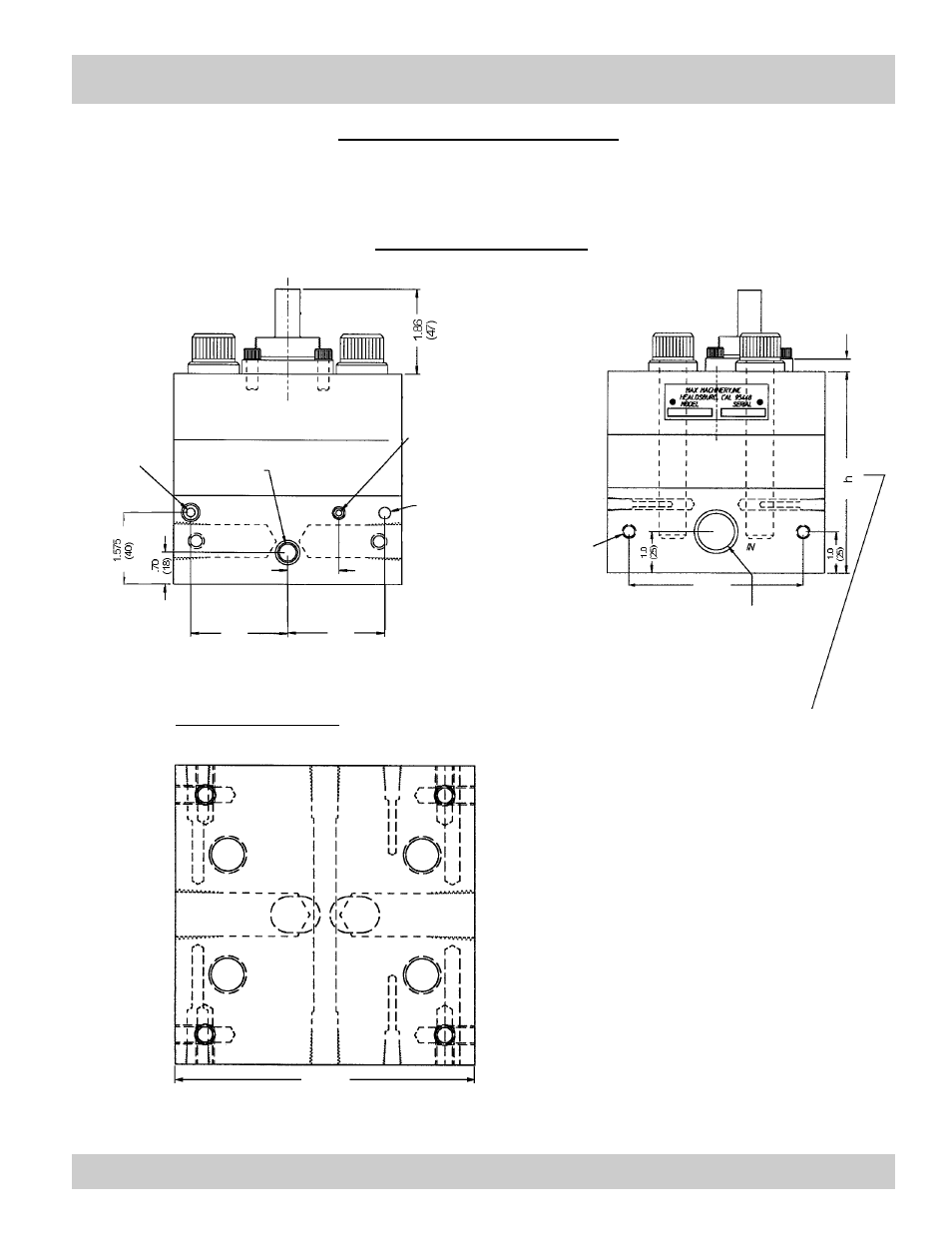

Dimensional Drawings
3000 PSI RATED VERSIONS
Standard NPT Connection
221-600-000 Bottom
0.190 X 2” DEEP
& 1/8 NPTTYP
ON OTHERSIDE
REAM .375 & 1/4NPT
HEATING PORT
BOTH SIDES
0.130 FOR THEMO COUPLING X 1-1/2
& 1/16 NPTTYPON OTHER SIDE
.255 X 2” DEEP
TYPON OTHER SIDE
2 1/8
(54)
1 1/8
(29)
2 1/8
(54)
4.00sq.
(102)
1/2 NPT
7/8-14 SAE
(OPTIONAL)
5/16-18NC X 5/8 DEEP
(2 LOCATION EACH SIDE)
5” sq.
(127)
0.3
(7)
Model 220-6XX 3.85 (98)
221-6XX 4.62 (117)
222-6XX 5.84 (148)
REAM .375 & 1/4NPT
HEATING PORT
BOTH SIDES
