Talon Internal Mix Gun Manual
Rev. 10/2013 Page | 25
*
Flush Valve Disassembly:
1. Remove the Split Seal from the Flush Valve Body.
2. Remove the Flush Valve Body from the Flush Valve Neck.
3. Remove the Flush Valve Seal from the Flush Valve Body.
4. Unscrew the Flush Seal Body from the Flush Valve Button.
5. Remove the Spring.
6. Use a scribe to remove the O-ring from the Flush Valve Button.
7. Remove the O-ring from the Flush Seal Body.
8. Set parts aside for now or go down to “Flush Valve Assembly”
Note:
*
O-ring O-K-008 can be used to replace the more economical O-ring (O-E-
008) - O-ring O-K-008 is designed for use with all solvents.

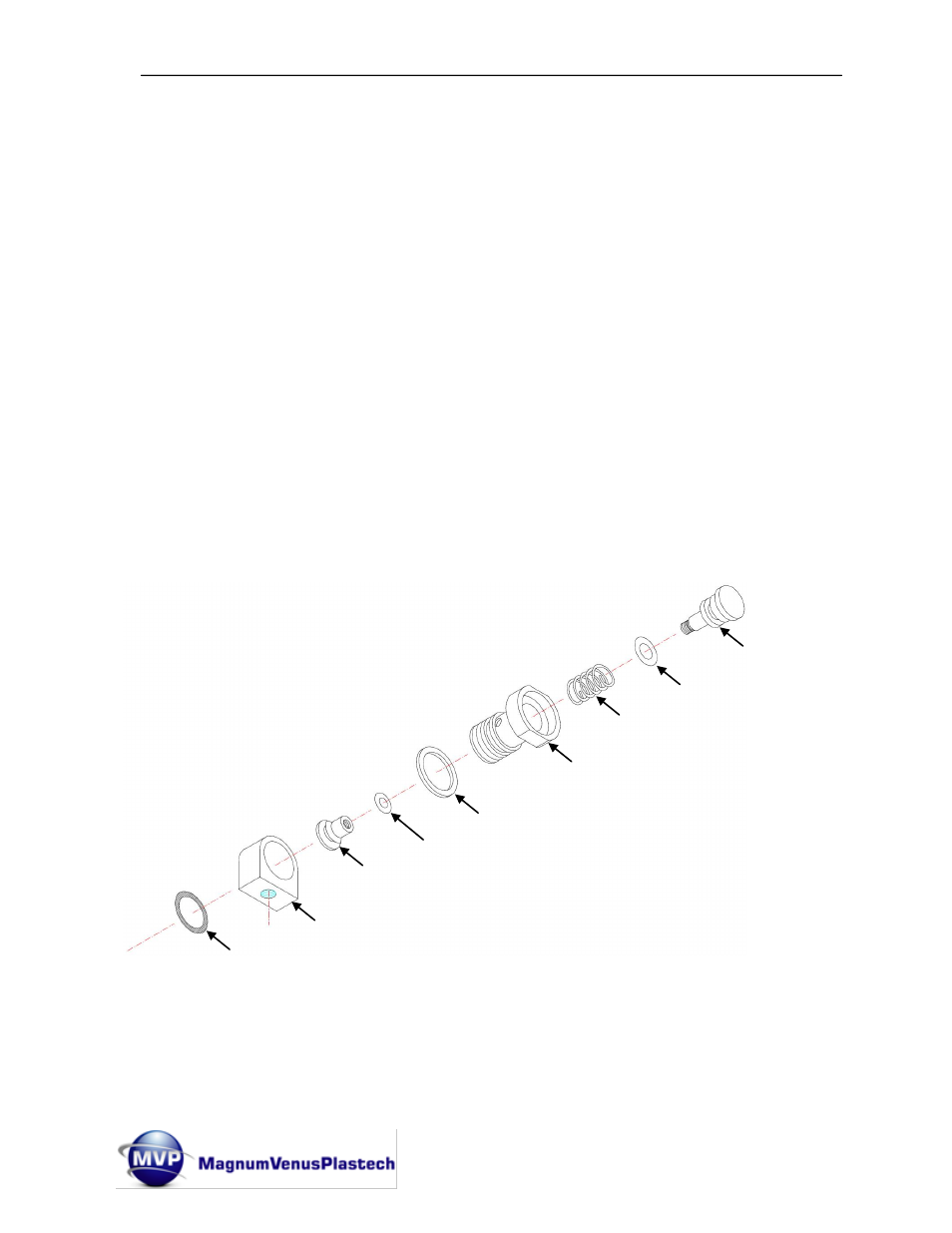

Flush Valve Button
O-ring
*
Spring
Flush Valve Body
Flush Valve Seal
O-ring
Flush Seal Body
Flush Neck
Split Seal
