Handle air valve – Magnum Venus Plastech TALON Gun Internal Mix User Manual
Page 20
Talon Internal Mix Gun Manual
Rev. 10/2013
Page | 20

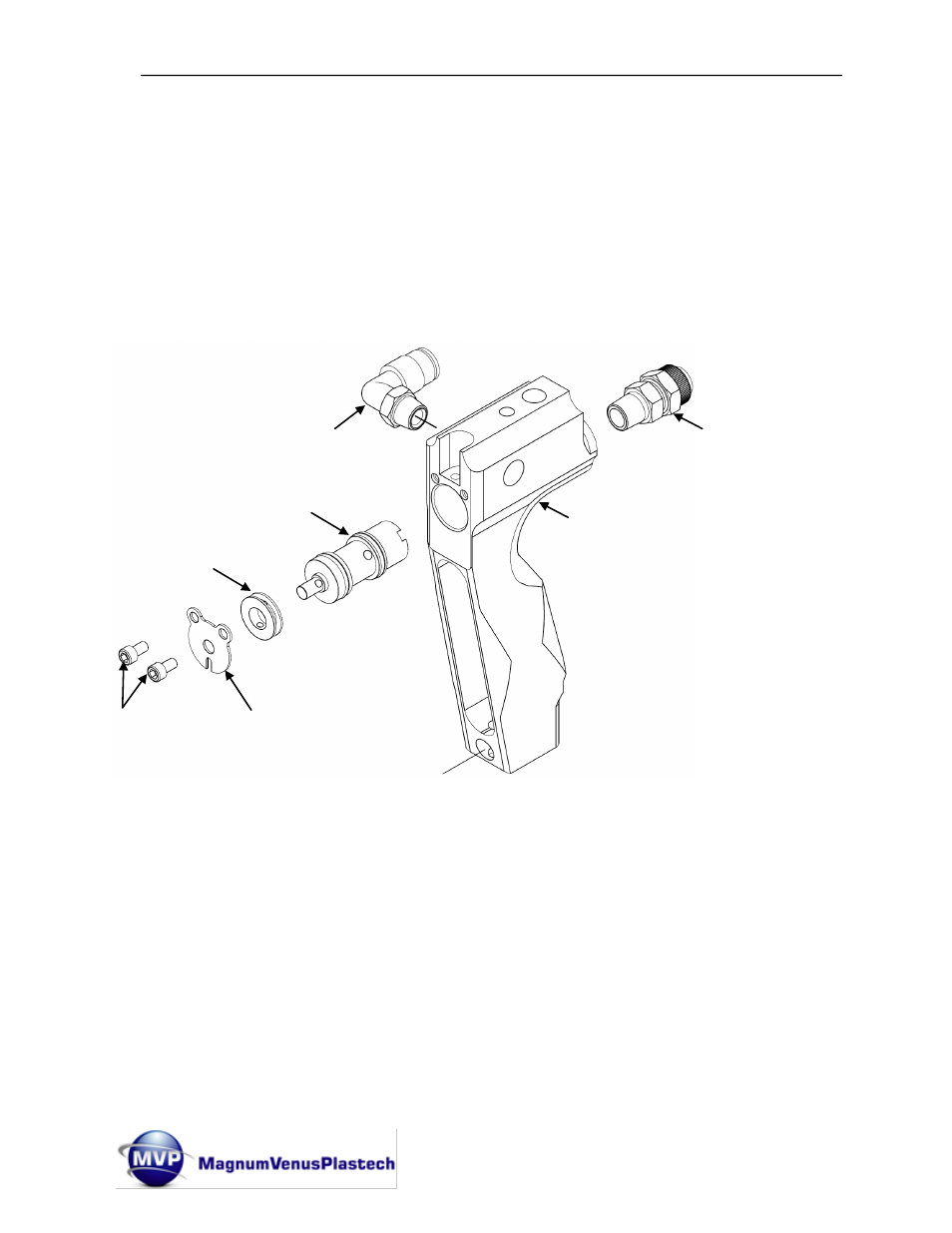

Handle Air Valve:
1. Remove the Cap Screws holding the Valve Cover to the gun handle and remove the
Valve Cover.
2. Remove the Exhaust Ring and 3-Way Air Valve from the handle.
3. Clean or replace the Air Valve as necessary and reassemble.
Air Inlet Fitting
3-Way Air Valve
Gun Handle
Cap Screw
Valve Cover
Exhaust Ring
Elbow Fitting
